Brand Name:
Huawei
Model Number:
S5700-28C-EI
Document:

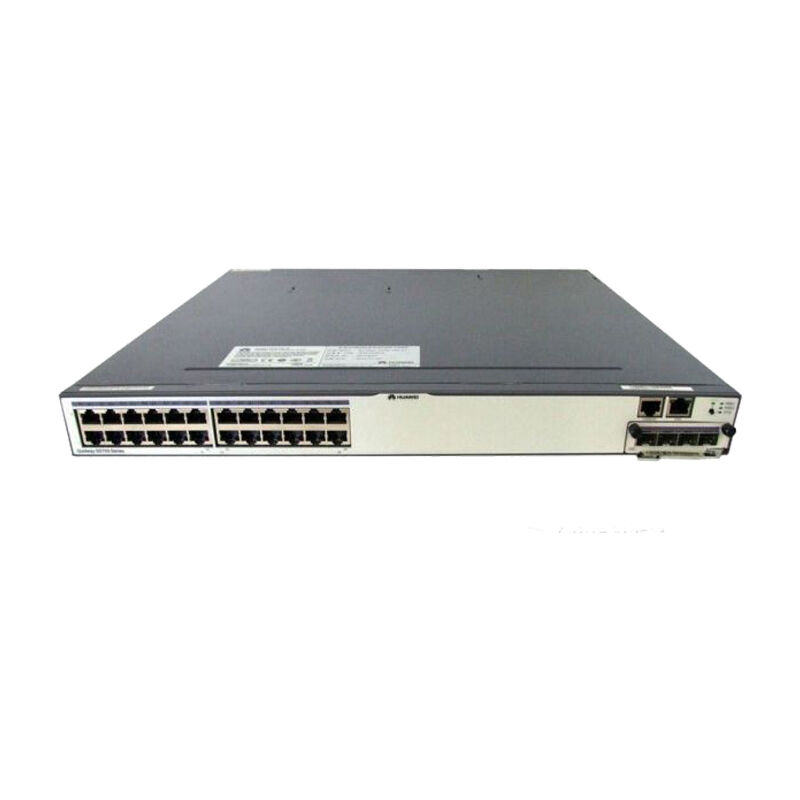

The S5700-28C-EI gigabit enterprise switch is next-generation energy-saving switch developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. With 24 GE ports and 2 extended slots, it provides a large switching capacity and high-density GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios.
The S5700-28C-EI is easy to install and maintain, reducing workloads for network planning, construction, and maintenance, then it uses advanced reliability, security, and energy conservation technology to help enterprise customers build a next-generation IT network.
| Model | S5700-28C-EI |
|---|---|
| Part Number | 02352338 |
| Fixed Ports | 24 x 10/100/1,000 Base-T |
| Extended Slots | Two extended slots, one for an uplink subcard and the other for a stack card |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| MAC Address Table Size | 32 MAC |
| Voltage Required | AC Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 50/60 Hz |
| Power Device | Double hot-swappable AC/DC power supplies |
| Power Consumption Operational | < 60W |
| Forwarding Performance | 96 Mpps |
| Switching Capacity | 256 Gbit/s |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight | 6.05kg |
| Compliant Standards | IEEE 802.1d compliance |
Ventilating fan, cards and power modules have been installed in the diagram, but they should be purchased separately.
| Model | Description |
|---|---|
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| eSFP-GE-ZX100-SM1550 | eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-1000BaseT | 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
| Models | S5700-28C-EI | S5700-28C-PWR-EI | S5700-28C-EI-24S |
|---|---|---|---|
| Fixed Ports | 24 x 10/100/1,000 Base-T | 24 x 10/100/1,000 Base-T | 24 x 100/1,000 Base-X, 4 of which are dual-purpose 10/100/1,000 or SFP |
| Extended Slots | 2 extended slots | 2 extended slots | 2 extended slots |
| Power Supply | Double hot-swappable AC/DC | Double hot-swappable AC/DC | Double hot-swappable AC, PoE+ |
| Forwarding Performance | 96 Mpps | 96 Mpps | 96 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
