Brand Name:
Huawei
Model Number:
S5700-10P-LI-AC
Document:

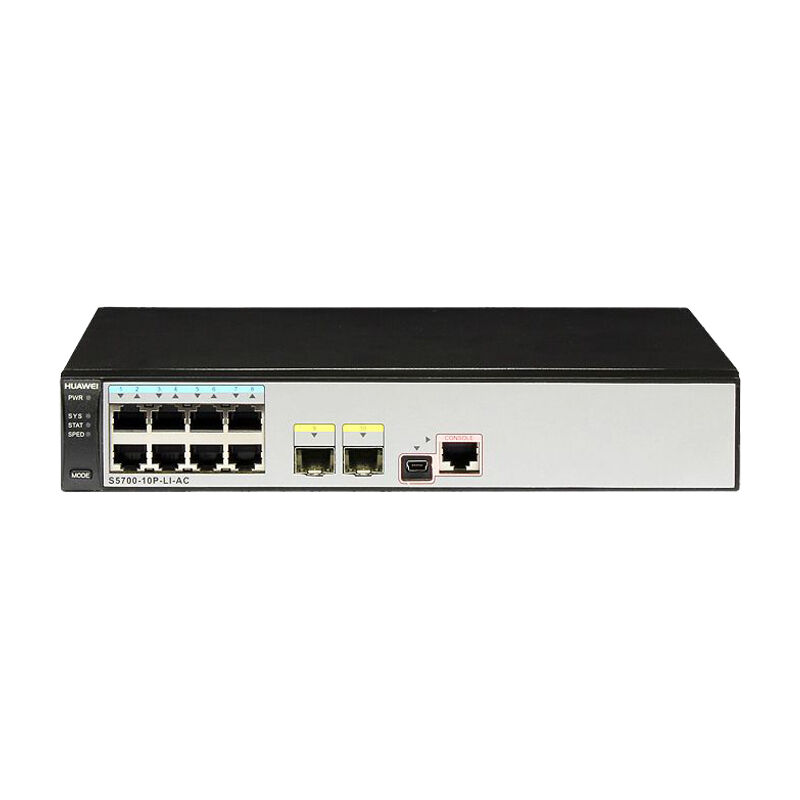

Huawei S5700-10P-LI-AC switch supports 8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports and can be powered by AC power supply. It's one of the Huawei S5700-LI Series Simplified Gigabit Switches.
| Model | S5700-10P-LI-AC |
|---|---|
| Part Number | 02354036 |
| Description | 8 Ethernet 10/100/1000 ports, 2 Gig SFP, AC 110/220V |
| Downlink Ports | 8 x 10/100/1,000 Base-T Ethernet ports |
| Uplink Ports | 2 x GE SFP ports |
| MAC Address | 16K |
| VLAN | 4K |
| Forwarding Performance | 15 Mpps |
| Switching Capacity | 256 Gbit/s |

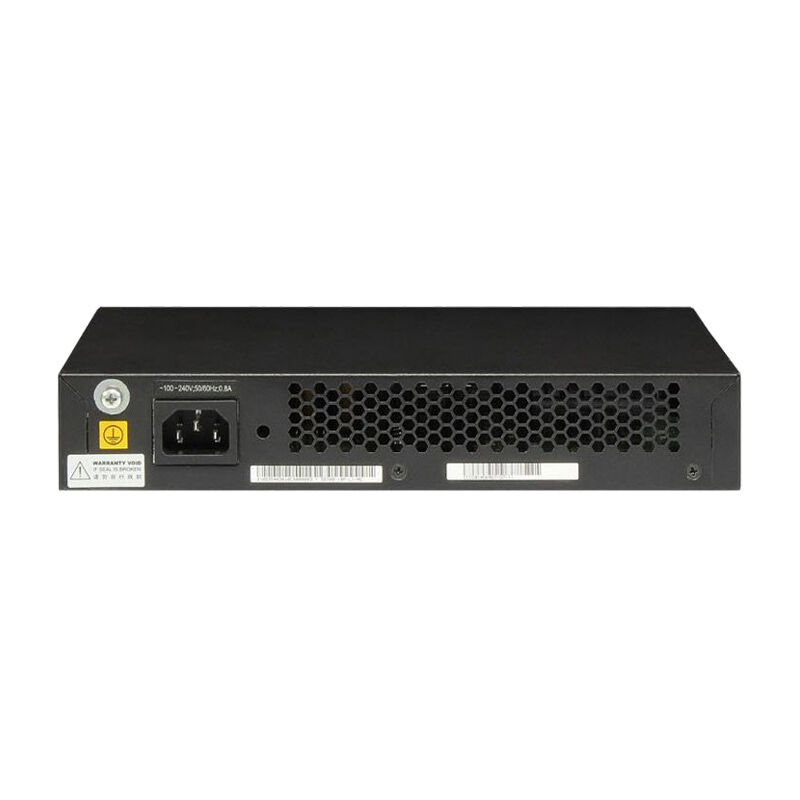

| Power | AC power supply |
| Heat Dissipation | Fan-free natural heat dissipation |
| Installation mode | Rack mounting (with separately purchased mounting brackets), desk mounting, and wall mounting |
| 300-mm deep cabinet | Not Supported |
| Dimensions (W x D x H) | 25 cm × 18 cm × 4.36 cm |
Huawei S5700-10P-LI-AC switch supports USB or RJ45 to console the device.
Huawei S5700-10P-LI-AC supports optical transceivers (GE, GE-CWDM, GE-DWDM) and GE cooper transceivers.
| Models | Description |
|---|---|
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| SFP-GE-BXU1-SC | 1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm (Tx) / 1490nm (Rx), 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm (Tx) / 1570nm (Rx) ,80km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| Models | Description |
|---|---|
| CWDM-SFPGE-1551 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1551nm, 80km, LC) |
| CWDM-SFPGE-1571 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1571nm, 80km, LC) |
| CWDM-SFPGE-1591 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1591nm, 80km, LC) |
| CWDM-SFPGE-1611 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1611nm, 80km, LC) |
| Models | Description |
|---|---|
| DWDM-SFPGE-1558-17 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1558.17nm, 120km, LC) |
| DWDM-SFPGE-1558-98 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1558.95nm, 120km, LC) |
| DWDM-SFPGE-1559-79 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1559.79nm, 120km, LC) |
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1560.61nm, 120km, LC) |
| Models | Description |
|---|---|
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Models | S5700-10P-LI-AC | S5700-10P-PWR-LI-AC |
|---|---|---|
| Downlink Ports | 8 x 10/100/1,000 Base-T Ethernet ports | 8 x 10/100/1,000 Base-T Ethernet ports |
| Uplink Ports | 2 x GE SFP ports | 2 x GE SFP ports |
| Power Supply | AC power supply | AC power supply |
| PoE Support | N/A | PoE+ |
