Brand Name:
Huawei
Model Number:
S5700-26X-SI-12S-AC
Document:

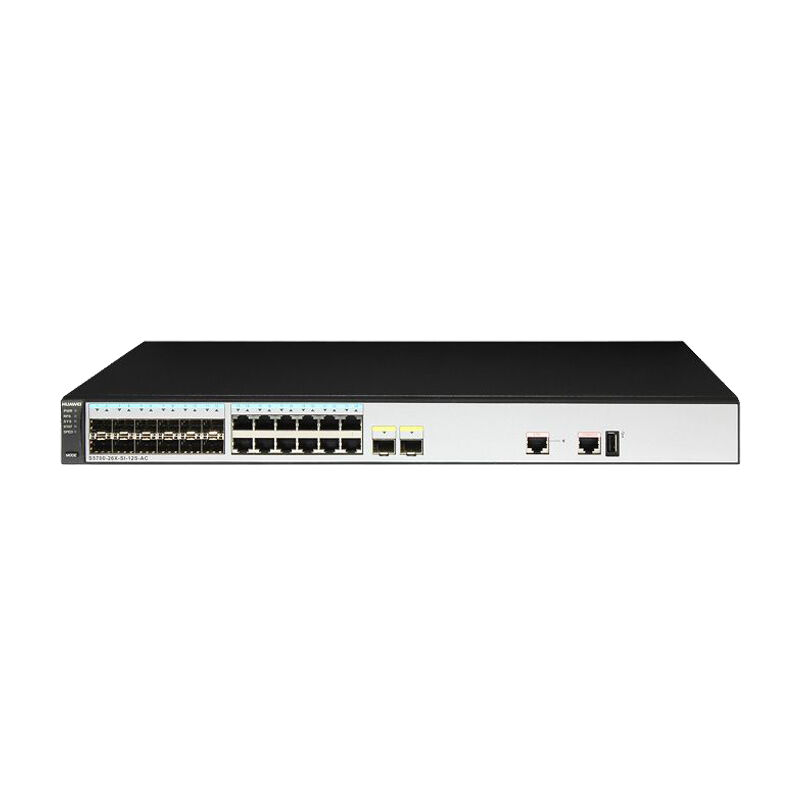

The S5700-26X-SI-12S-AC is a gigabit Layer 3 Ethernet switch based on Huawei's Versatile Routing Platform (VRP). Featuring twelve 10/100/1,000 ports, twelve 100/1,000 Base-X ports, and two 10 GE SFP+ ports, it delivers high switching capacity and interface density for diverse networking scenarios. This switch incorporates advanced reliability, security, and energy-saving technologies to support next-generation enterprise IT networks.
| Model | S5700-26X-SI-12S-AC |
| Part Number | 02354039 |
| Ports | 12 × 10/100/1,000 ports, 12 × 100/1,000 Base-X ports, 2 × 10 GE SFP+ ports |
| Memory | 256 MB RAM, 200 MB Flash |
| MAC Address Table | 16K entries |
| Power Supply | AC: 100V to 240V, 50/60 Hz |
| Power Consumption | < 42.3W |
| Forwarding Performance | 66 Mpps |
| Switching Capacity | 256 Gbit/s |
| Dimensions | 442 × 310 × 43.6 mm (W × D × H) |
| Weight | 6.6 kg |
| Model | Description |
|---|---|
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode (1310nm, 10km, LC) |
| Model | S5700-28C-SI | S5700-24TP-SI-AC | S5700-26X-SI-12S-AC |
|---|---|---|---|
| Fixed Ports | 24 × 10/100/1,000 Base-T (4 dual-purpose) | 24 × 10/100/1,000 Base-T (4 dual-purpose) | 12 × 10/100/1,000 Base-T, 12 × 100/1,000 Base-X, 2 × 10 GE SFP+ |
| Power Supply | Dual hot swappable AC/DC | AC | AC with RPS support |
| Forwarding Performance | 96 Mpps | 36 Mpps | 66 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
| Power Consumption | < 40W | < 56W | < 42.3W |
