Brand Name:
Huawei
Model Number:
S5700-24TP-SI-AC
Document:
| Model | S5700-24TP-SI-AC |
|---|---|
| Part Number | 02352360 |
| Description | 24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, AC 110/220V, 1 extension slot |
| Ports | 24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports |
| Forwarding Performance | 36 Mpps |
| Switching Capacity | 256 Gbit/s |
| Stack | Supported by stack card |
| Stack Ports | Two stack ports available on each stack card |
| Power | AC 110/220V |
| Heat Dissipation | Built-in fans for intelligent air cooling |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| Dimensions (W x D x H) | 442.0 mm x 220.0 mm x 43.6 mm |
| Weight | 3.9 Kg |

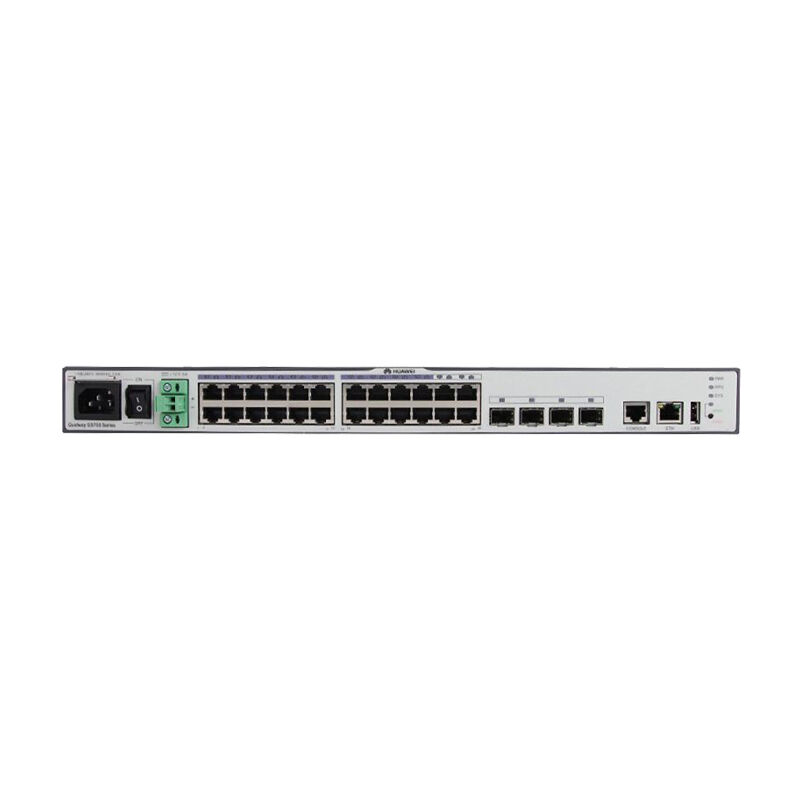

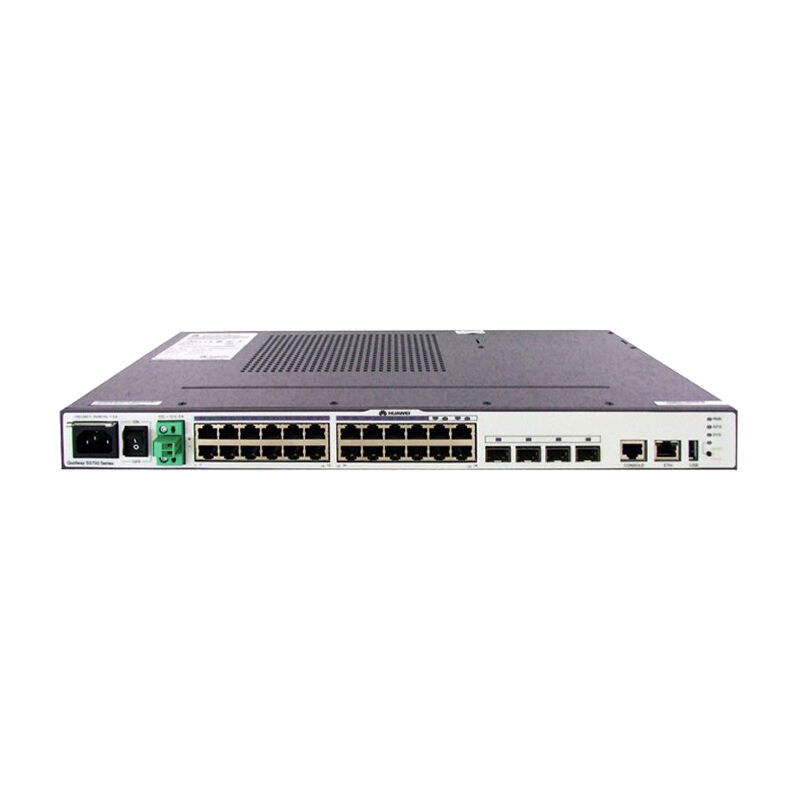

| (1) | AC socket | (5) | Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
| (2) | Power switch | (6) | One console port |
| (3) | Backup power socket | (7) | ETH management port |
| (4) | 20 × 10/100/1000BASE-T ports | (8) | USB port |

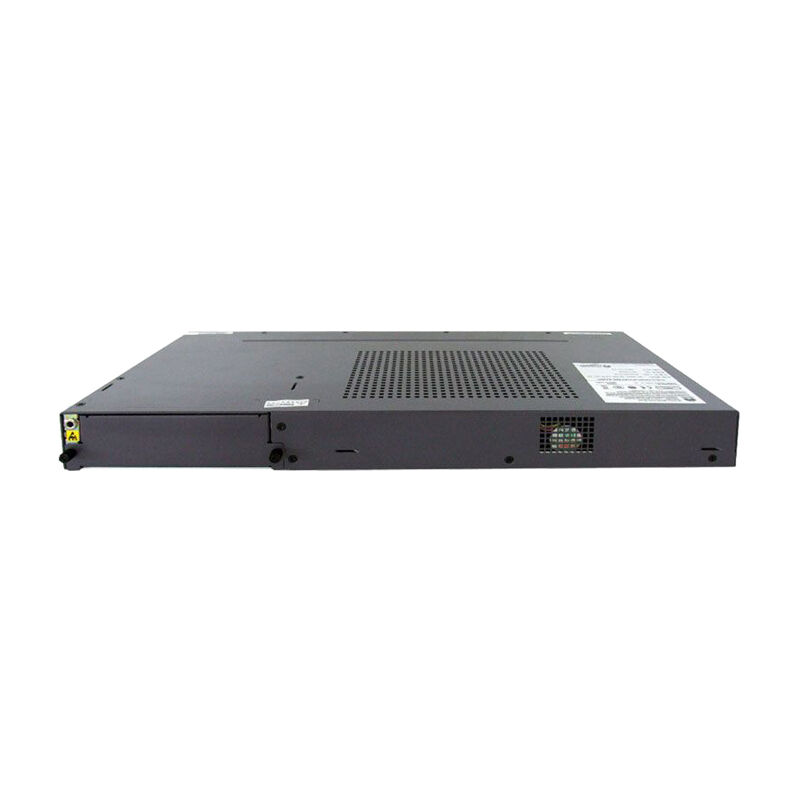

| (1) | ESD jack | (2) | Rear card slot |
| Model | Description |
|---|---|
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| Models | S5700-24TP-SI-AC | S5700-24TP-PWR-SI |
|---|---|---|
| Ports | 24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports | 20 × PoE+ 10/100/1000BASE-T ports Four combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X) |
| PoE Supported | Not Supported | Yes |
| Software Version | Standard | Standard |
