Brand Name:
Huawei
Model Number:
S5730-36C-HI-24S
Document:
| Model | S5730-36C-HI-24S |
|---|---|
| Part Number | 02351XFQ |
| Memory | 4 GB |
| Flash Memory | 1 GB total (view available space via display version command) |
| PoE Support | Not supported |
| Weight | 9.49 kg (20.92 lb) including packaging |
| Dimensions |
Basic: 44.4 mm x 442.0 mm x 424.7 mm (1.75" x 17.4" x 16.72") Maximum: 44.4 mm x 442.0 mm x 451.8 mm (1.75" x 17.4" x 17.79") |
| ① | Twenty-four 10/100/1000BASE-T ports |
| ② | Four 10GE SFP+ ports |
| ③ | One ETH management port |
| ④ | One PNP button |
| ⑤ | One console port |
| ⑥ | One USB port |
| ⑦ | Ground screw |
| ⑧ | ESN label |

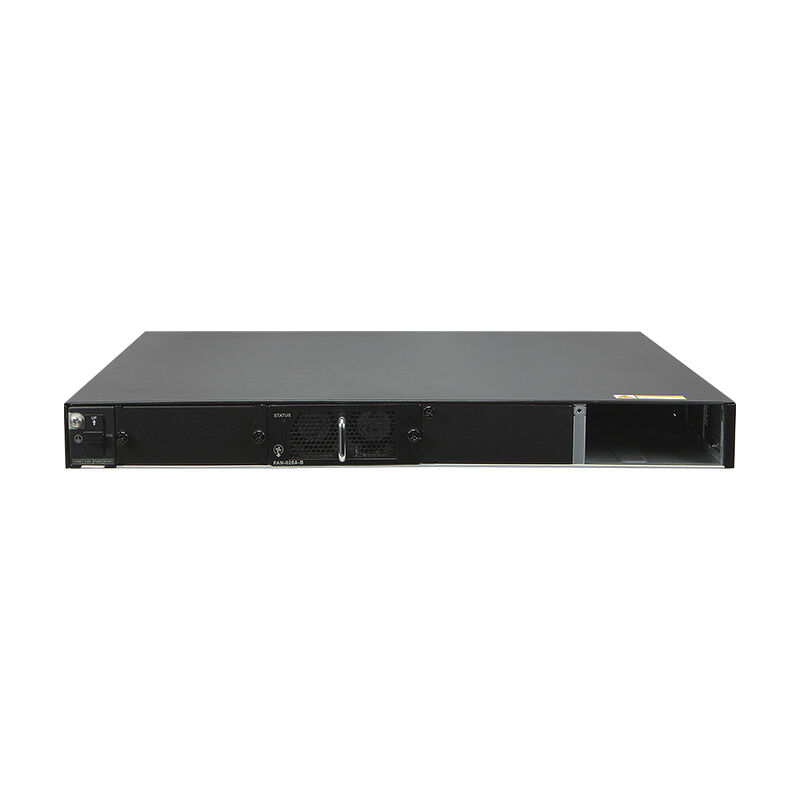

| ⑨ | SSD card slot |
| ⑩ | Rear card slot |
| ⑪ | Fan slot |
| ⑫ | Power module slot 2 |
| ⑬ | Power module slot 1 |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm,2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 1310nm, STM1, -15~-8dBm, -28dBm, LC, SM, 15km |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km, LC) |
| Model | S5730-36C-HI-24S | S5730-44C-HI-24S | S5730-60C-HI-48S | S5730-68C-HI-48S |
|---|---|---|---|---|
| Fixed Ports | 24 GE SFP ports (8 dual-purpose), 4 x 10 GE SFP+ | 24 GE SFP ports (8 dual-purpose), 4 x 10 GE SFP+ | 48 GE SFP ports, 4 x 10 GE SFP+ | 48 GE SFP ports, 4 x 10 GE SFP+ |
| Dimensions | 442 x 420 x 44.4 mm | 442 x 420 x 44.4 mm | 442 x 420 x 44.4 mm | 442 x 420 x 44.4 mm |
| Extended Slots | 1 slot (supports 8x10GE or 2x40GE cards) | 2 slots (1 reserved, supports 8x10GE or 2x40GE cards) | 1 slot (supports 8x10GE or 2x40GE cards) | 2 slots (1 reserved, supports 8x10GE or 2x40GE cards) |
