Brand Name:
Huawei
Model Number:
S5700-52P-LI-DC
Document:
| Model | S5700-52P-LI-DC |
|---|---|
| Part Number | 02353830 |
| Description | 48 Ethernet 10/100/1000 ports, 4 Gig SFP, DC -48V |
| Downlink Ports | Forty-eight 10/100/1000BASE-T ports |
| Uplink Ports | Four 1000BASE-X ports |
| PoE | Not supported |
| Forwarding Performance | 78 Mpps |
| Switching Capacity | 256 Gbit/s |
| Stack | Supported |
| Stack Ports | V200R010 and earlier versions: the last two uplink 1000BASE-X optical ports V200R011 and later versions: four uplink 1000BASE-X optical ports |
| Power | DC power |
| Heat Dissipation | Forced air cooling by Built-in fans |
| Memory (RAM) | 256 MB |
| Flash | V200R001: 64 MB V200R002 and later versions: 200 MB |
| Dimensions (W x D x H) | 43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.) |

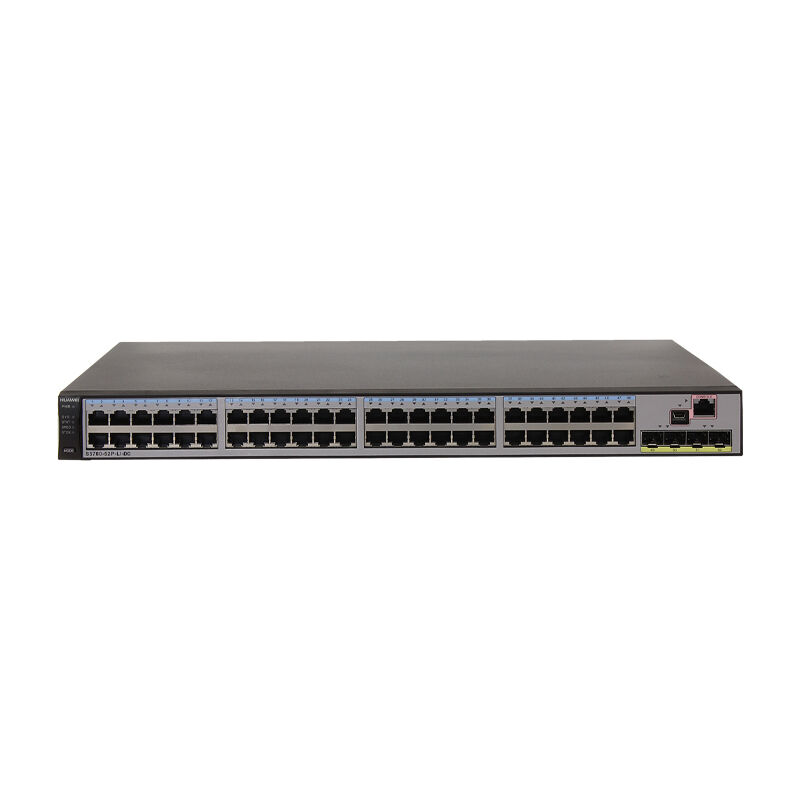

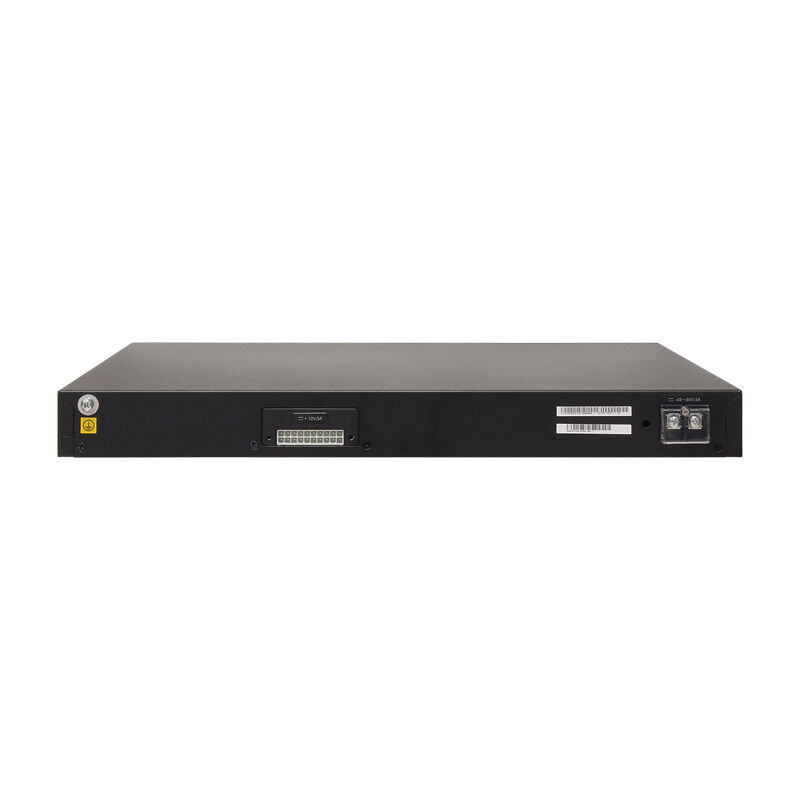

| (1) | Forty-eight 10/100/1000BASE-T ports | (5) | Ground screw |
| (2) | Four 1000BASE-X ports | (6) | RPS socket |
| (3) | One mini USB port | (7) | DC power terminal |
| (4) | One console port |
