Brand Name:
Huawei
Model Number:

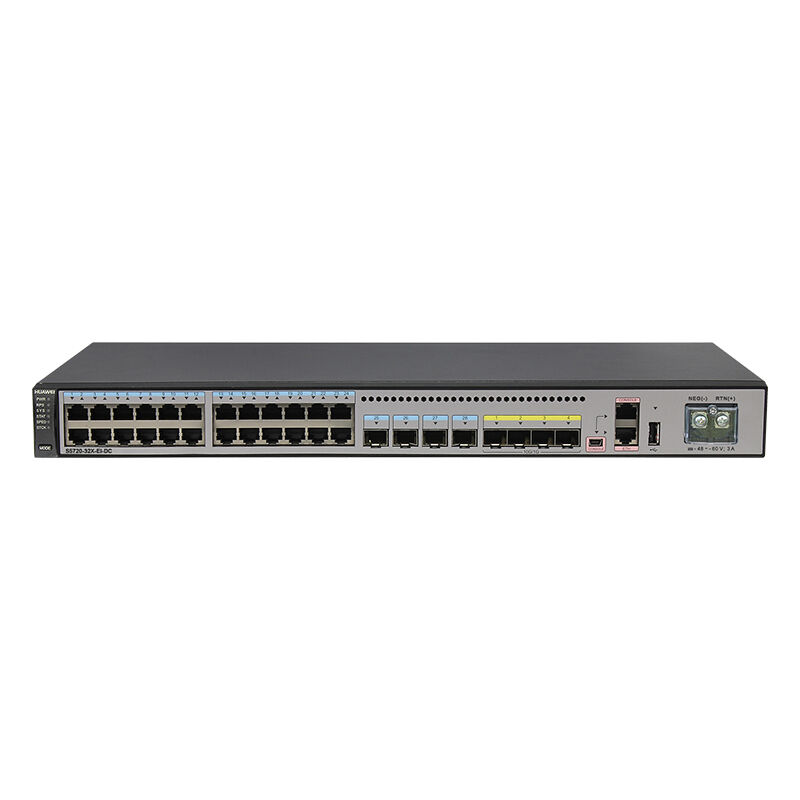

S5720-32X-EI-DC
Document:
| Model | S5720-32X-EI-DC |
|---|---|
| Part Number | 02350NHC |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| PoE | Not supported |
| Weight with packaging [kg(lb)] | 4.5 kg (9.92 lb) |
| Dimensions (H x W x D) |
Basic dimensions (excluding protruding parts): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions: 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.) |
| ① | Twenty-four 10/100/1000BASE-T ports |
| ② | Four 100/1000BASE-X ports |
| ③ | Four 10GE SFP+ ports |
| ④ | One mini USB port |
| ⑤ | One console port |
| ⑥ | One ETH management port |
| ⑦ | One USB port |
| ⑧ | DC power terminal |
| ⑨ | Ground screw |
| ⑩ | Two QSFP+ stack optical ports |
| ⑪ | RPS socket |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
| Model | Description |
|---|---|
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
| Model | Description |
|---|---|
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m, RJ45) |
| Product Code | S5720-32X-EI-DC | S5720-56PC-EI-AC |
|---|---|---|
| Switching Capacity | 598 Gbit/s | 598 Gbit/s |
| Forwarding Performance | 102 Mpps | 108 Mpps |
| Extended Slot | No | One extended slot |
| Fixed Interfaces | 24 x 10/100/1,000 Base-T Ethernet ports, 4 x 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports | 48 x 10/100/1,000 Base-T Ethernet ports and 4 x 1,000 Base-X SFP ports |
