Brand Name:
Huawei
Model Number:
S5720S-12TP-PWR-LI-AC
Document:
| Model | S5720S-12TP-PWR-LI-AC |
| Part Number | 98010571 |
| Memory (RAM) | 512 MB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| PoE | Supported |
| Weight with packaging [kg(lb)] | 3 kg (6.62 lb) |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 220.0 mm (1.72 in. x 12.6 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 228.3 mm (1.72 in. x 12.6 in. x 8.99 in.) |
| ① | Eight PoE+ 10/100/1000BASE-T ports |
| ② | Two combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
| ③ | Two 1000BASE-X ports |
| ④ | One console port |
| ⑤ | One PNP button |

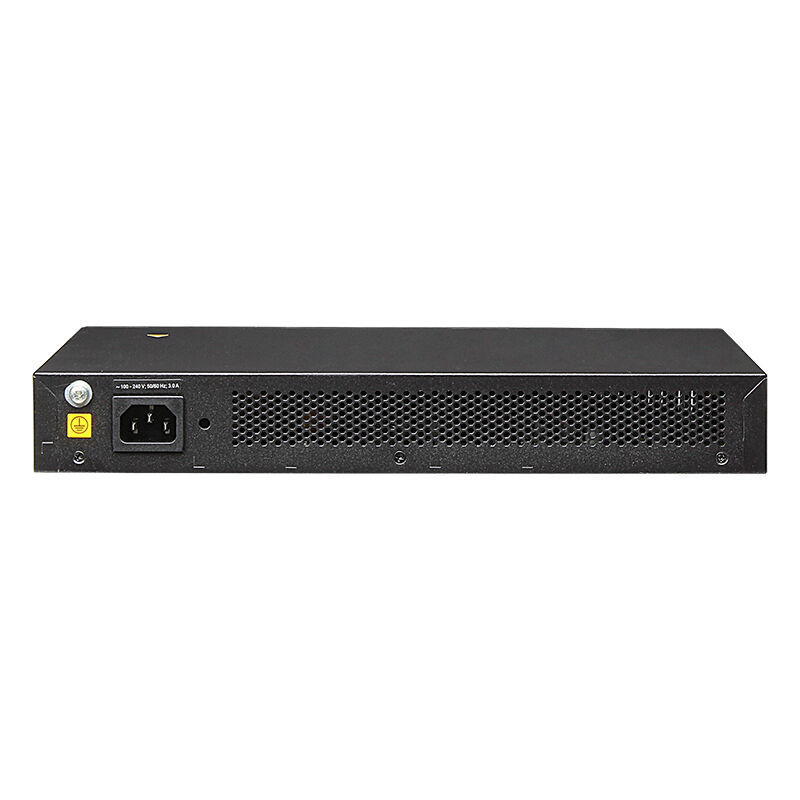

| ⑥ | Ground screw |
| ⑦ | AC socket |
| ⑧ | Jack for AC power cable locking strap |
