Brand Name:
Huawei
Model Number:
S5710-28C-PWR-EI-AC
Document:
| Model | S5710-28C-PWR-EI-AC |
|---|---|
| Part Number | 02354038 |
| Extended Slots | Two extended slots that support uplink sub-cards |
| Subcards supported | 2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard |
| Switching Capacity | 416 Gbit/s |
| Forwarding Performance | 156 Mpps |
| Fixed Interfaces | 24 x 10/100/1,000 Base-T, two GE SFP combo ports, 4 x 10 GE SFP+ ports |
| PoE Available | PoE+ |
| Power Supply | Double hot-swappable AC power supplies, including one 580W AC power unit |
| Memory (RAM) | 512 MB |
| Flash | 200 MB |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.75 in.) |
| Weight | Empty: ≤ 6 kg (13.23 lb) Fully loaded: ≤ 10 kg (22.05 lb) |

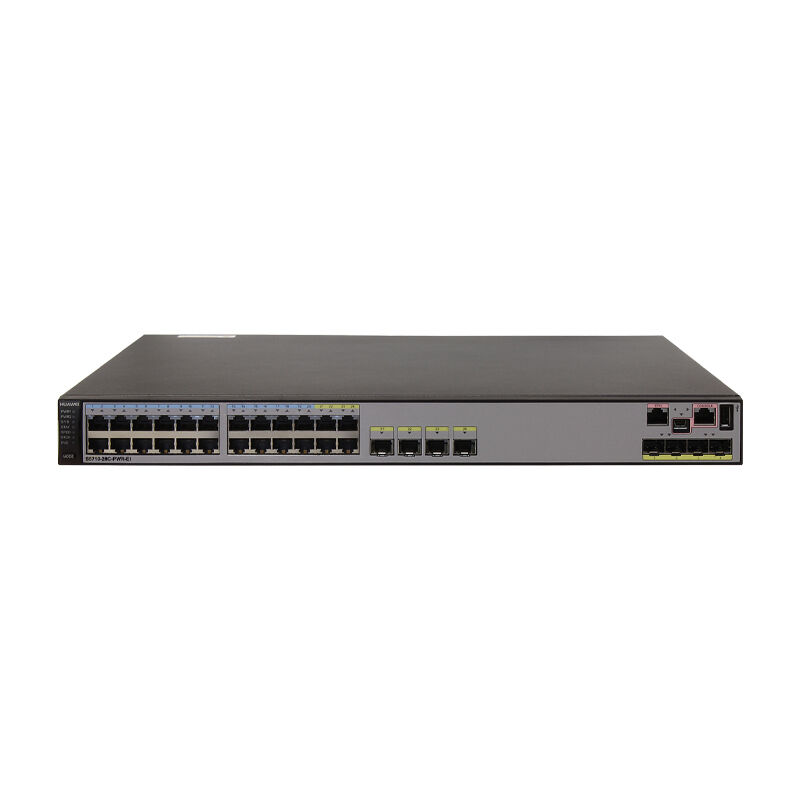

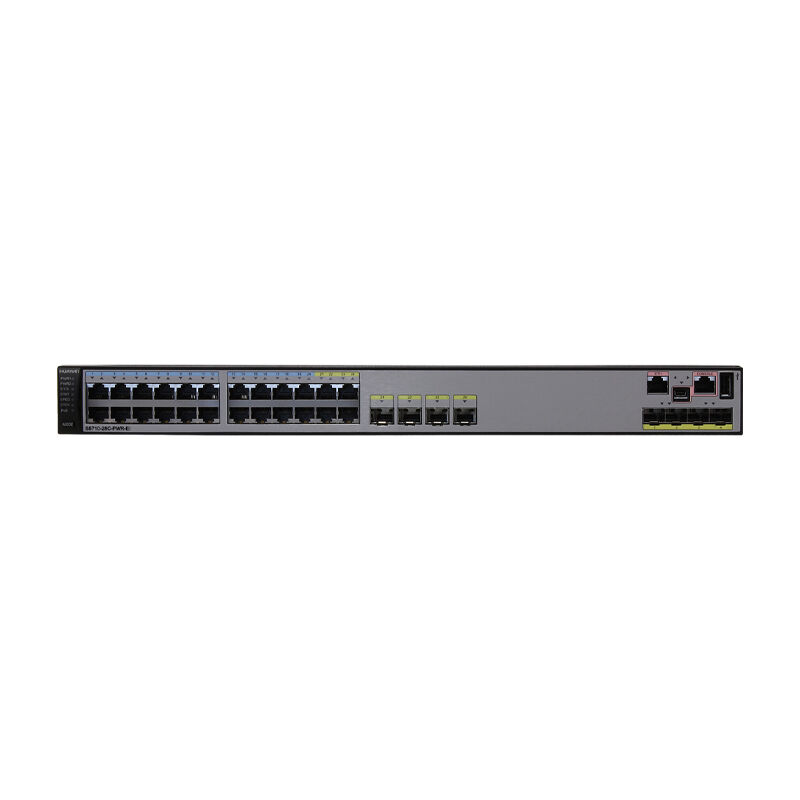

| (1) | Twenty PoE+ 10/100/1000BASE-T ports | (5) | One mini USB port |
| (2) | Four combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X) | (6) | One console port |
| (3) | Four 10GE SFP+ ports | (7) | One USB port |
| (4) | One ETH management port |

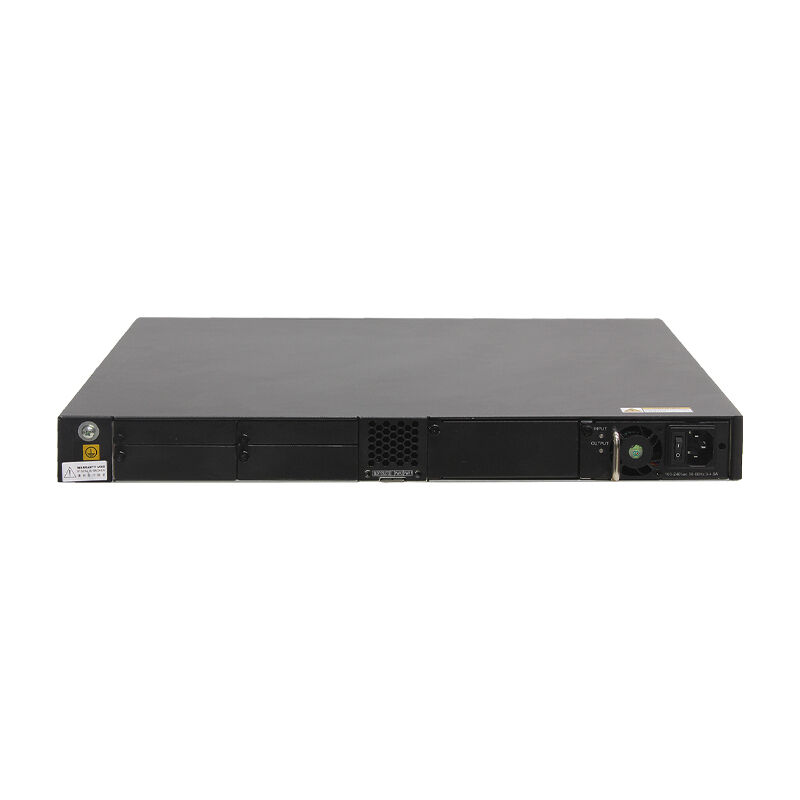

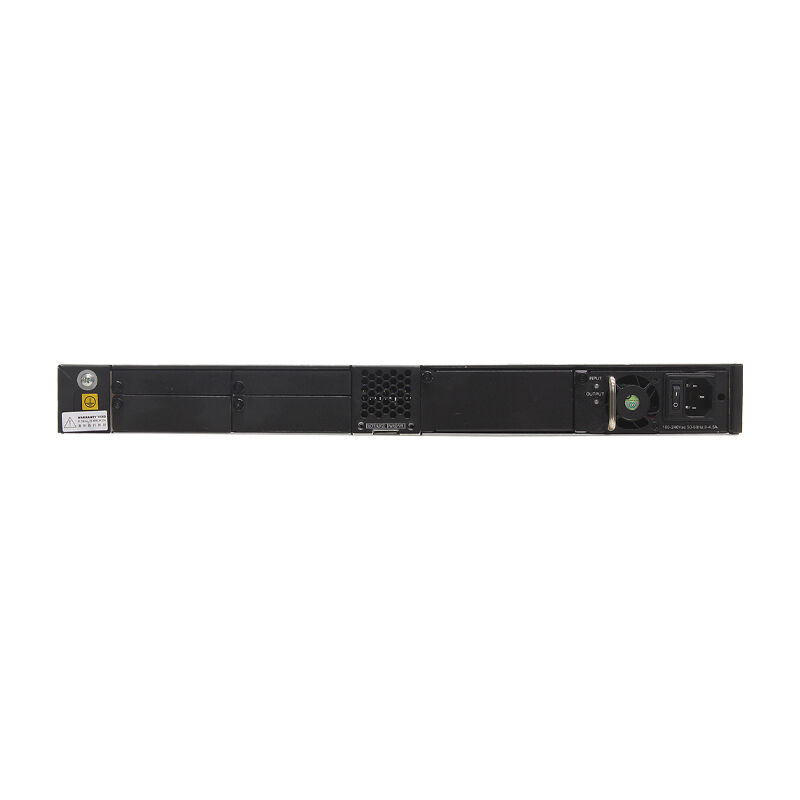

| (8) | Ground screw | (11) | ESN label |
| (9) | Rear card slot 1 | (12) | Power module slot 2 |
| (10) | Rear card slot 2 | (13) | Power module slot 1 |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| ES5D21X02S00 | 2 10 Gig SFP+ interface card (used in S5710EI series) |
| ES5D21G08T00 | 8 Ethernet 10/100/1000 ports interface card (used in S5710EI series) |
| ES5D21G08S00 | 8 Gig SFP interface card (used in S5710EI series) |
| Model | S5710-28C-PWR-EI-AC | S5700-28C-EI | S5700-52C-EI | S5710-52C-PWR-EI |
|---|---|---|---|---|
| Switching Capacity | 416 Gbit/s | 256 Gbit/s | 256 Gbit/s | 416 Gbit/s |
| Forwarding Performance | 156 Mpps | 96 Mpps | 132 Mpps | 192 Mpps |
| Fixed Ports | 24 x 10/100/1,000 Base-T, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 GE SFP+ | 24 x 10/100/1,000 Base-T | 48 x 10/100/1,000 Base-T | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ |
| Extended Slots | Two extended slots for uplink subcards | Two extended slots, one for an uplink subcard and the other for a stack card | Two extended slots, one for an uplink subcard and the other for a stack card | Two extended slots for uplink subcards |
| PoE Available | PoE+ | No | No | PoE+ |
| Subcards supported | 2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard | 4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard | 4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard | 2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard |
