Brand Name:
Huawei
Model Number:

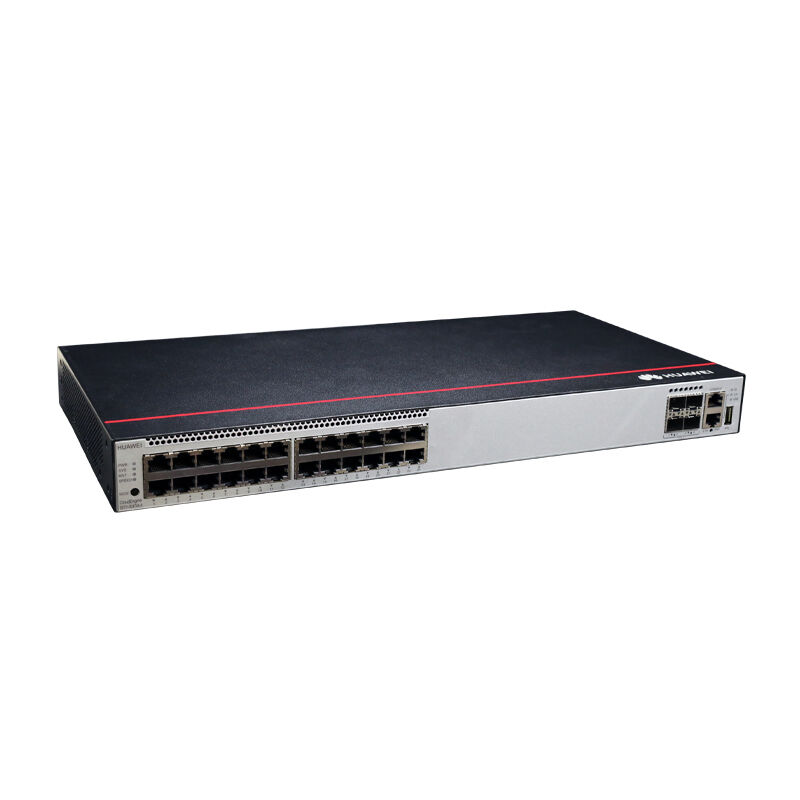

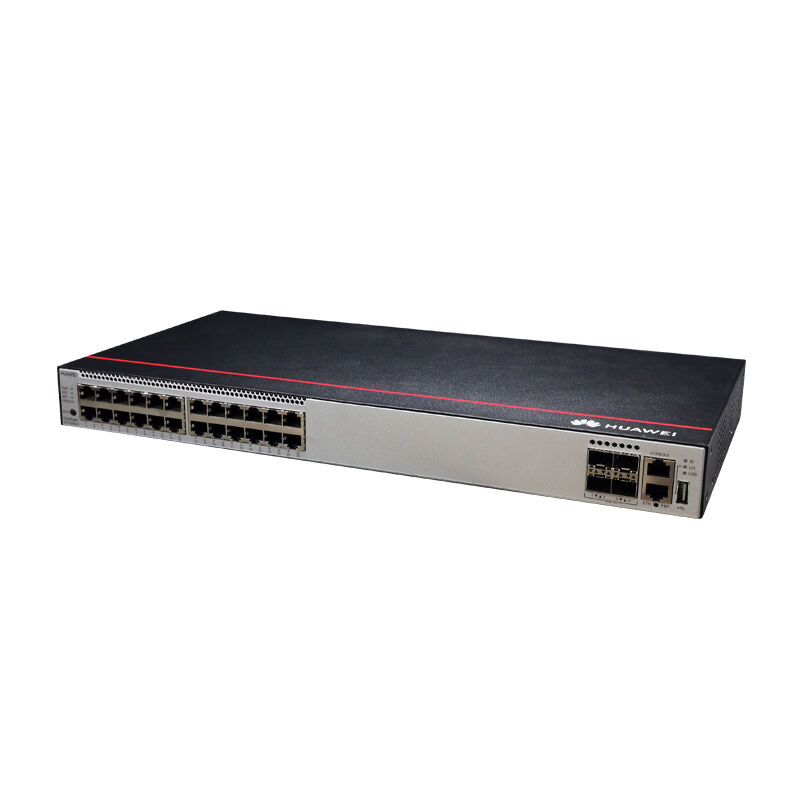

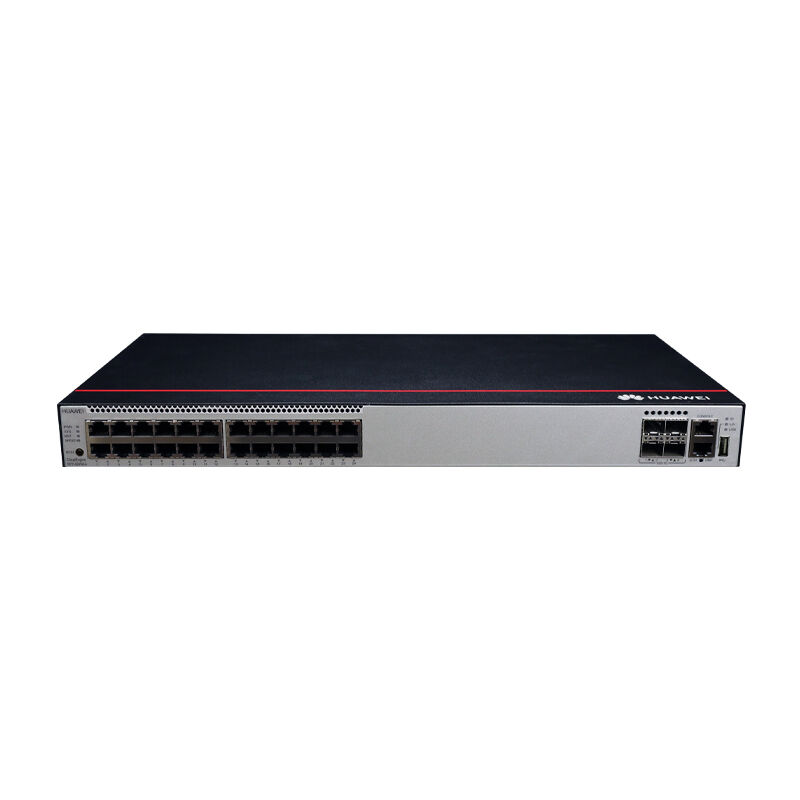

S5731-S24T4X-A
Document:
| Model | S5731-S24T4X-A |
|---|---|
| Part Number | 98011858/98011858-001 |
| Description | S5735-L24T4X-A (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power) |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Weight with packaging [kg(lb)] | 4.40 kg (9.7 lb) |
| Typical power consumption [W] | 64 W |
| Maximum power consumption [W] | 80 W |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| PoE | Not supported |

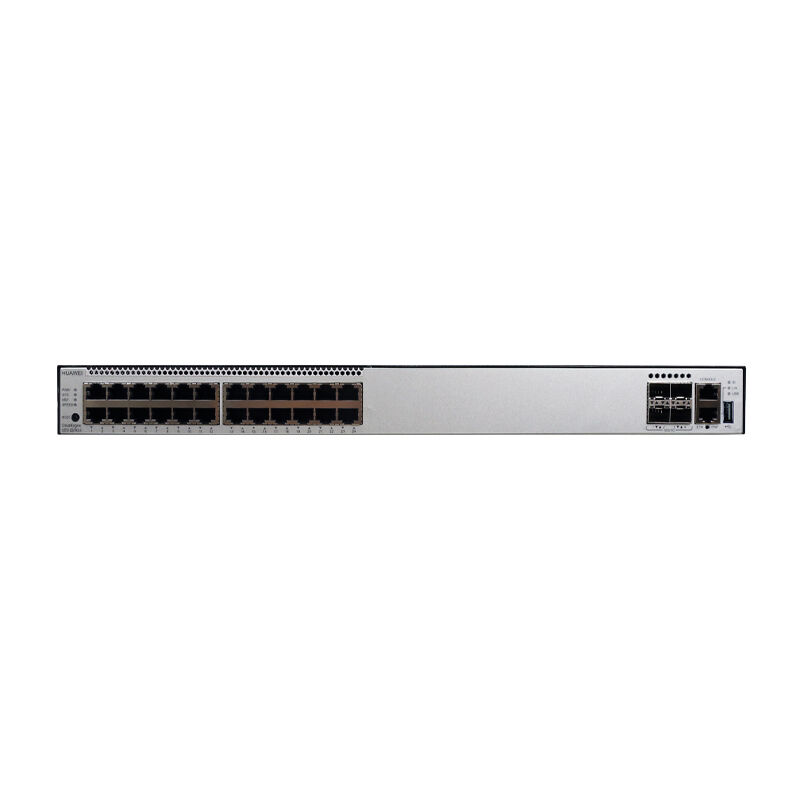

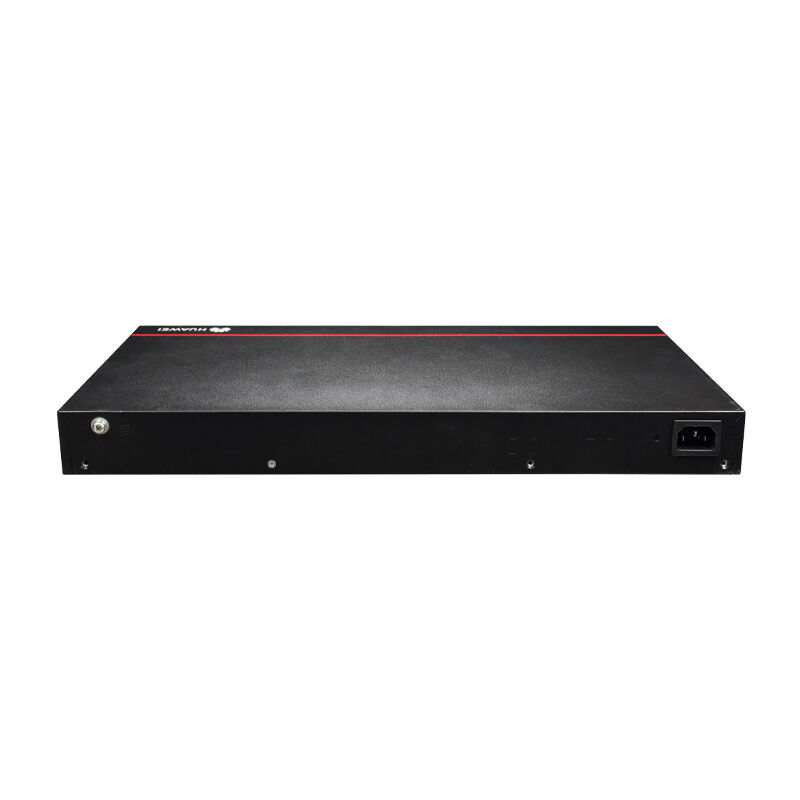

| (1) | Twenty-four 10/100/1000BASE-T ports | (6) | One PNP button |
| (2) | Four 10GE SFP+ ports | (7) | Ground screw |
| (3) | One console port | (8) | Jack for AC power cable locking strap |
| (4) | One ETH management port | (9) | AC socket |
| (5) | One USB port |
