Brand Name:
Huawei
Model Number:

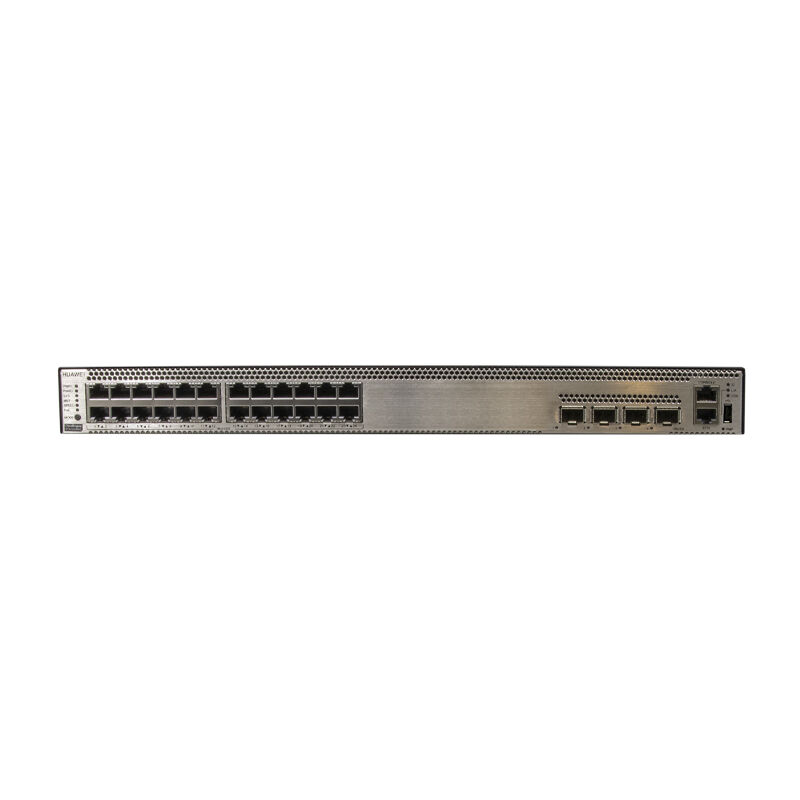

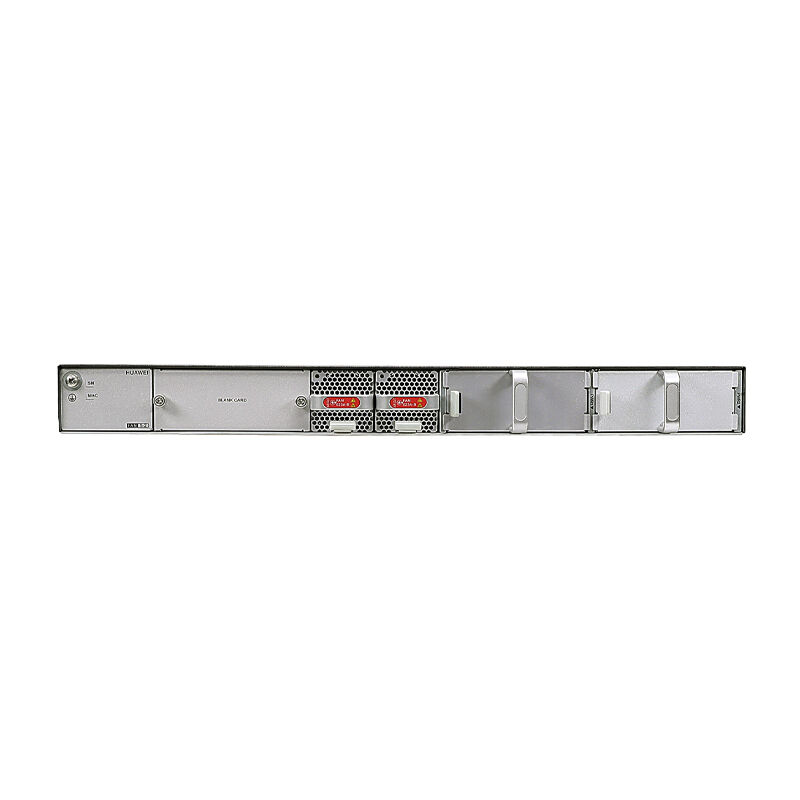

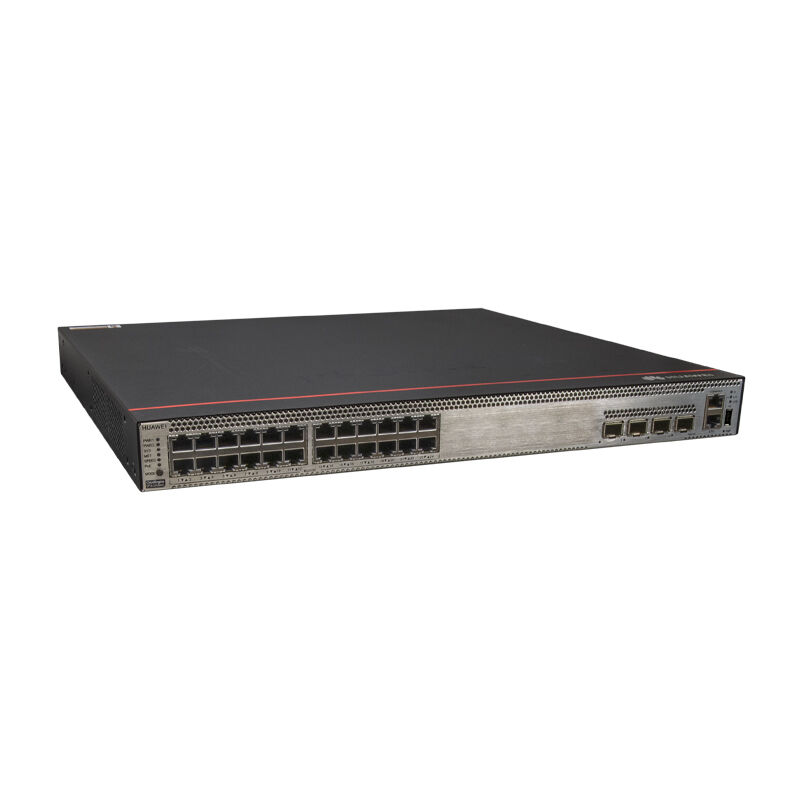

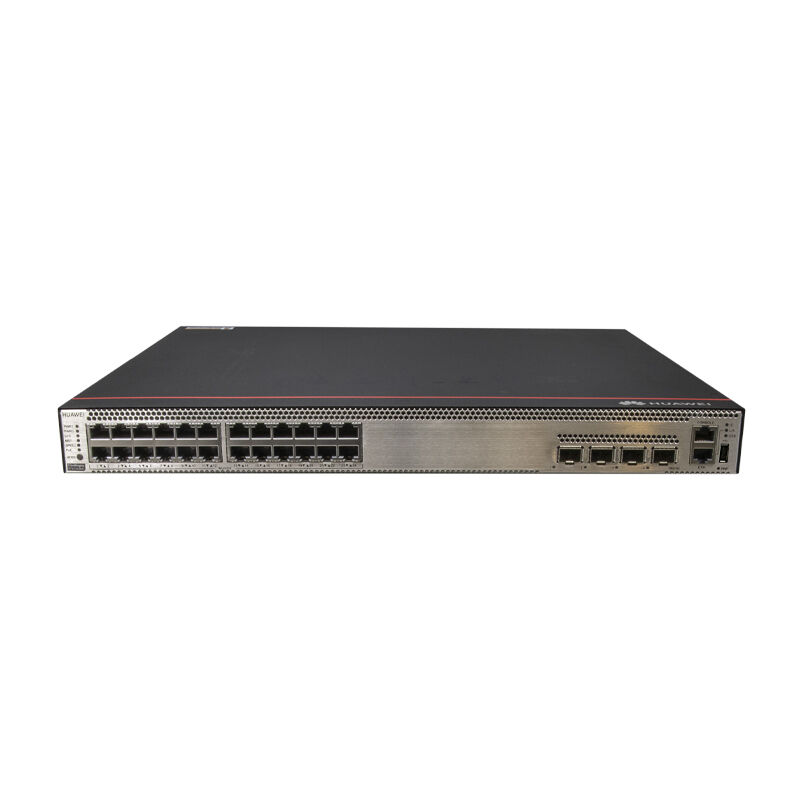

S5736-S24UM4XC
Document:
| Model | S5736-S24UM4XC |
|---|---|
| Part Number | 98011020, 98011020-001, 98011020-004 |
| Description |
|
| Memory | 2 GB |
| Flash Memory | 1 GB total (view available size using display version command) |
| Typical Power Consumption | 117 W |
| Typical Heat Dissipation | 399.22 BTU/hour |
| Part Number | Description | Remarks |
|---|---|---|
| 98011020 | S5736-S24UM4XC Base (24×100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 4×10GE SFP+ ports, 1×expansion slot, PoE++, without power module) | Multi-GE ports support 100 Mbit/s and 1000 Mbit/s by default. RTU license available for 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s upgrade. Rear label indicates "24×GE" port rates. |
| 98011020-001 | S5736-S24UM4XC 2.5&10G Bundle (12×100M/1G/2.5G Ethernet ports, 12×100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 4×10GE SFP+ ports, 1×expansion slot, PoE++, 1×1000W AC power) | Factory-activated 2.5GE RTU for 12 ports and 10GE RTU for 12 ports. Use assign group-speed command for configuration. Additional RTU available for 5GE/10GE upgrades. Rear label indicates "12×2.5GE+12×10GE" port rates. |
| 98011020-004 | S5736-S24UM4XC 10G Bundle (24×100M/1G/2.5G/5G/10G Ethernet ports, 4×10GE SFP+ ports, 1×expansion slot, PoE++, 1×1000W AC power) | Factory-activated 10GE RTU for all 24 multi-GE ports. Use assign group-speed command for 24×10GE configuration. Rear label indicates "24×10GE" port rates. |
| Model | Description |
|---|---|
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| Product Model | S5735S-L12T4S-A S5735S-L12P4S-A | S5735S-L24T4S-A S5735S-L24P4S-A | S5735S-L24T4X-A S5735S-L24P4X-A | S5735S-L48T4S-A | S5735S-L48T4X-A S5735S-L48P4X-A | S5735S-L32ST4X-A |
|---|---|---|---|---|---|---|
| Forwarding Performance | 24 Mpps | 42 Mpps | 96 Mpps | 78 Mpps | 132 Mpps | 108 Mpps |
| Switching Capacity | 32 Gbit/s/336 Gbit/s | 56 Gbit/s/336 Gbit/s | 128 Gbit/s/336 Gbit/s | 104 Gbit/s/432 Gbit/s | 176 Gbit/s/432 Gbit/s | 144 Gbit/s/432 Gbit/s |
| Fixed Ports | 12×10/100/1000Base-T ports, 4×GE SFP ports | 24×10/100/1000Base-T ports, 4×GE SFP ports | 24×10/100/1000Base-T ports, 4×10 GE SFP+ ports | 48×10/100/1000BASE-T ports, 4×GE SFP ports | 48×10/100/1000BASE-T ports, 4×10 GE SFP+ ports | 24×GE SFP ports, 8×10/100/1000BASE-T ports, 4×10 GE SFP+ ports |
| PoE+ | S5735S-L12P4S-A: Supported Other: Not supported |
S5735S-L24P4S-A: Supported Other: Not supported |
S5735S-L24P4X-A: Supported Other: Not supported |
Not supported | S5735S-L48P4X-A: Supported Other: Not supported |
Not supported |
