Name: Huawei Network Switch S5732-H24UM2CC with 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: S5732-H24UM2CC
Price: 2110 USD
Availability: InStock

Home > Products > Huawei Network Switch >

Huawei Network Switch S5732-H24UM2CC with 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28

24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports Huawei Switch

4 x 25 GE SFP28 Network Switch

2 x 40 GE QSFP+ or 2 x 100 GE QSFP28 Multi-GE Switch

Brand Name:

Huawei

Model Number:

S5732-H24UM2CC

Document:

huawei-s5732-h24um2cc-broch...et.pdf

Chat Now

Request A Quote

Product Details

Description:

Huawei CloudEngine S5732-H Series Multi-GE Switch, Management Of Up To 1024 APs, 24 X 100M/1G/2.5G/5G/10G Base-T Ethernet Ports, 4 X 25 GE SFP28 + 2 X 40 GE QSFP+ Or 2 X 100 GE QSFP28

Condition:

Original New; In Stock

Highlight:

24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports Huawei Switch

4 x 25 GE SFP28 Network Switch

2 x 40 GE QSFP+ or 2 x 100 GE QSFP28 Multi-GE Switch

Payment & Shipping Terms

Minimum Order Quantity

Price

$2110

Delivery Time

3-5 days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

200pcs

Huawei Switch S5700-28X-LI-24S-AC with 24 Gig SFP Ports 4 10 Gig SFP+ Ports and 256 Gbit/s Switching Capacity

Chat Now

Huawei Switch S5700-52C-PWR-EI with 48 PoE+ 10/100/1000BASE-T Ports, 256 Gbit/s Switching Capacity, and 132 Mpps Forwarding Performance

Chat Now

Huawei Switch S5700-28X-LI-DC with 24 Ethernet 10/100/1000 Ports and 4 10 Gig SFP+ Ports for Gigabit Enterprise Networks

Chat Now

Huawei S5720-52P-LI-AC Network Switch with 43.6 mm x 442.0 mm x 224.8 mm Compact Design 4.4 kg Lightweight and Intelligent Stack Technology

Chat Now

0086-571-86729517

info@hi-network.com

Chat Now

Product Description

Huawei Switch S5732-H24UM2CC

Next-generation CloudEngine S5732-H Series Multi-GE Switches offer either 24 or 48 downlink ports with speeds up to 10 GE, alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. Designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era, these switches provide exceptional performance for modern network infrastructure.

Based on Huawei's unified Versatile Routing Platform (VRP), the switches feature Intent-Driven Network (IDN) capabilities including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and free mobility features that ensure consistently high-quality user experience.

Quick Specification

Model	S5732-H24UM2CC
Part Number	02353HUC, 02353HUC-003, 02353SJY, 02353SJY-001, 02353SJY-004, 02353SJY-010, 02353SJY-011, 02353SJY-014, 02353SJY-020, 02353SJY-021, 02353SJY-024
Switching Capacity	1.28 Tbit/s / 2.4 Tbit/s
Fixed Ports	24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28
PoE	Supported
Extended Slots	One extended slot, supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards

Product Appearance

Key Features

10 GE Ultra-Fast Access: Supports 24 or 48 10 GE access ports with 60 W power supply per port
Built-in Native AC: Manages up to 1024 wireless APs with converged wireless and wired policy management
Intelligent Network O&M: Collects device data in real-time through telemetry, collaborating with CampusInsight analyzer to quickly detect problems affecting user experience

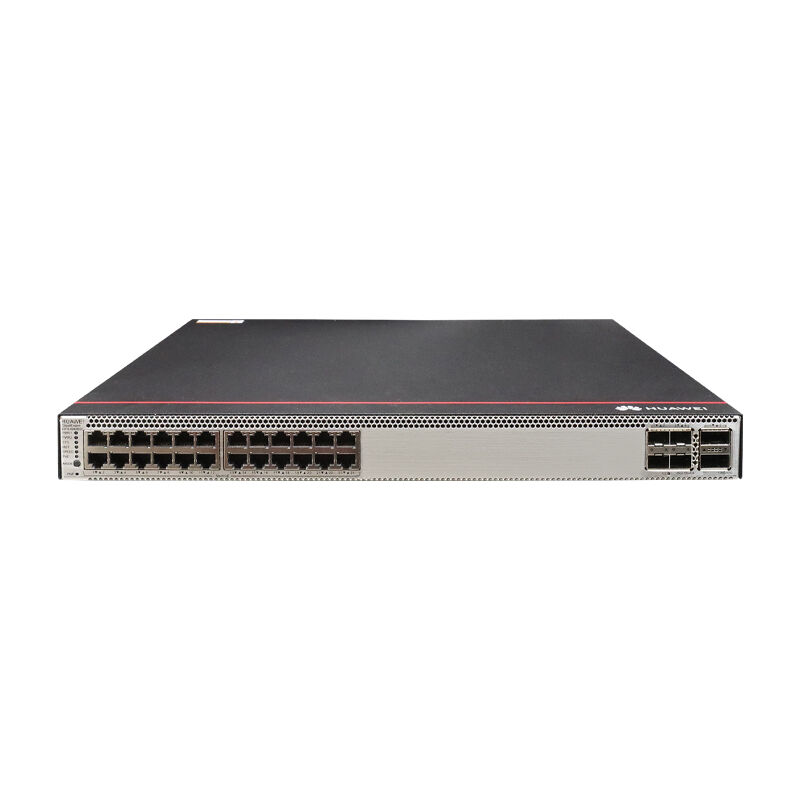

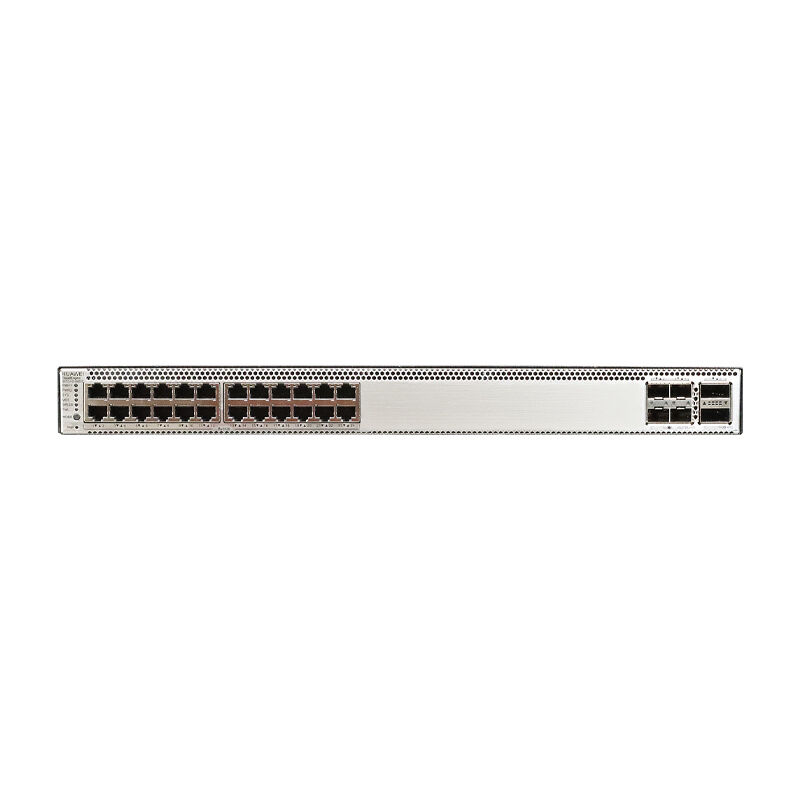

Front Panel Details

Component	02353HUC Series	02353SJY-020 Series
(1) PNP Button	One PNP button	One PNP button
(2) Multi-GE Ports	Twenty-four 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports	Twenty-four 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports
(3) SFP28 Ports	Four 1GE/10GE/25GE SFP28 optical ports	Four 10GE/25GE SFP28 optical ports
(4) QSFP28 Ports	Two 40GE/100GE QSFP28 optical ports	Two 40GE/100GE QSFP28 optical ports

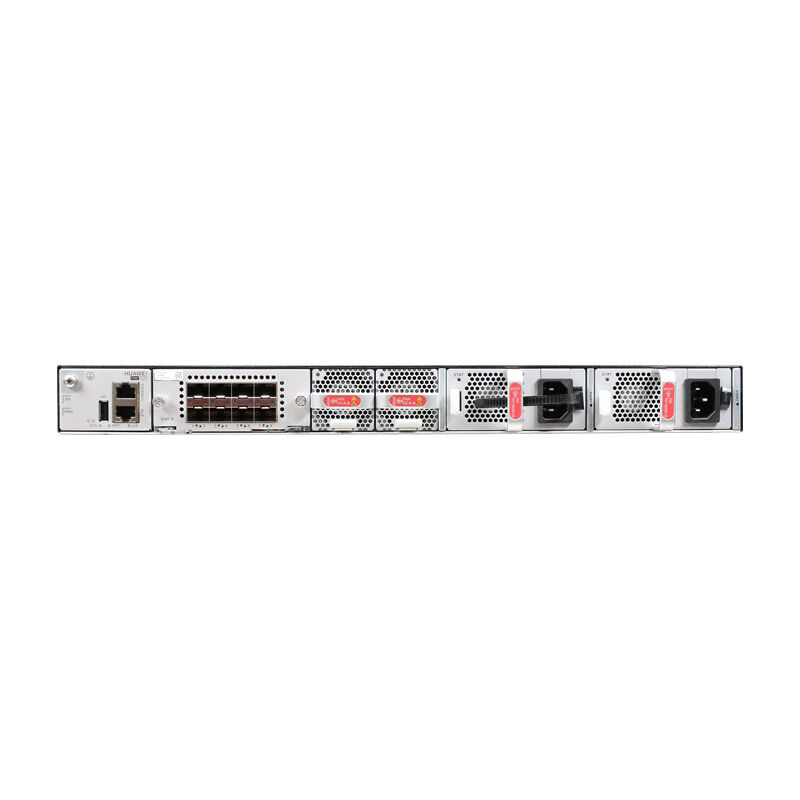

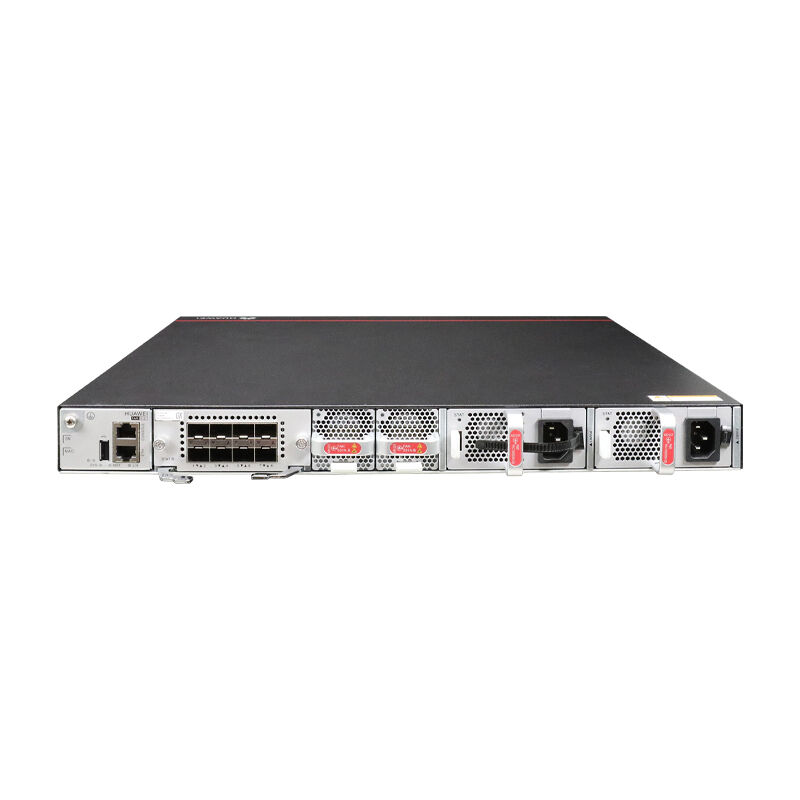

Back Panel Details

(5) Ground screw	(10) Fan module slot 1
(6) One USB port	(11) Fan module slot 2
(7) One console port	(12) Power module slot 1
(8) One ETH management port	(13) Power module slot 2
(9) Rear card slot

Product Bundles

Part Number	Description	Remarks
02353HUC 02353HUC-003	S5732-H24UM2CC Premium (24100M/1G/2.5G/5G/10G Ethernet ports, 425GE SFP28 + 240GE or 2100GE QSFP28 ports, 1*expansion slot, PoE++, without power module)	By default, no power supply is configured. Multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s.
02353SJY 02353SJY-010	S5732-H24UM2CC Base (24100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 425GE SFP28 + 240GE or 2100GE QSFP28 ports, 1*expansion slot, PoE++, without power module)	By default, no power supply is configured. Multi-GE ports support 100 Mbit/s and 1000 Mbit/s. RTU license required for 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s upgrade.
02353SJY-001 02353SJY-011	S5732-H24UM2CC 2.5&10G Bundle (12100M/1G/2.5G, 12100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 425GE + 240GE or 2100GE, 1expansion slot, PoE++, 1*1000W AC power)	Includes 1000W AC power module. First 12 ports support 100M/1G/2.5G (RTU upgradeable to 5G/10G). Last 12 ports support 100M/1G/2.5G/5G/10G.
02353SJY-004 02353SJY-014	S5732-H24UM2CC 10G Bundle (24100M/1G/2.5G/5G/10G Ethernet ports, 425GE SFP28 + 240GE or 2100GE QSFP28 ports, 1expansion slot, PoE++, 11000W AC power)	Includes 1000W AC power module. All multi-GE ports support 100M/1G/2.5G/5G/10G.
02353SJY-020	S5732-H24UM2CC Base (24100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 425GE SFP28, 2100GE QSFP28 ports, 1expansion slot, PoE++, without power module)	By default, no power supply is configured. Multi-GE ports support 100M/1G (RTU upgradeable to 2.5G/5G/10G).
02353SJY-021	S5732-H24UM2CC 2.5&10G Bundle (12100M/1G/2.5G, 12100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 425GE SFP28, 2100GE QSFP28 ports, 1*expansion slot, PoE++, with AC power supply)	Includes 1000W AC power module. First 12 ports support 100M/1G/2.5G (RTU upgradeable to 5G/10G). Last 12 ports support 100M/1G/2.5G/5G/10G.
02353SJY-024	S5732-H24UM2CC 10G Bundle (24100M/1G/2.5G/5G/10G Ethernet ports, 425GE SFP28, 2100GE QSFP28 ports, 1expansion slot, PoE++, with AC power supply)	Includes 1000W AC power module. All multi-GE ports support 100M/1G/2.5G/5G/10G.
