Brand Name:
Huawei
Model Number:

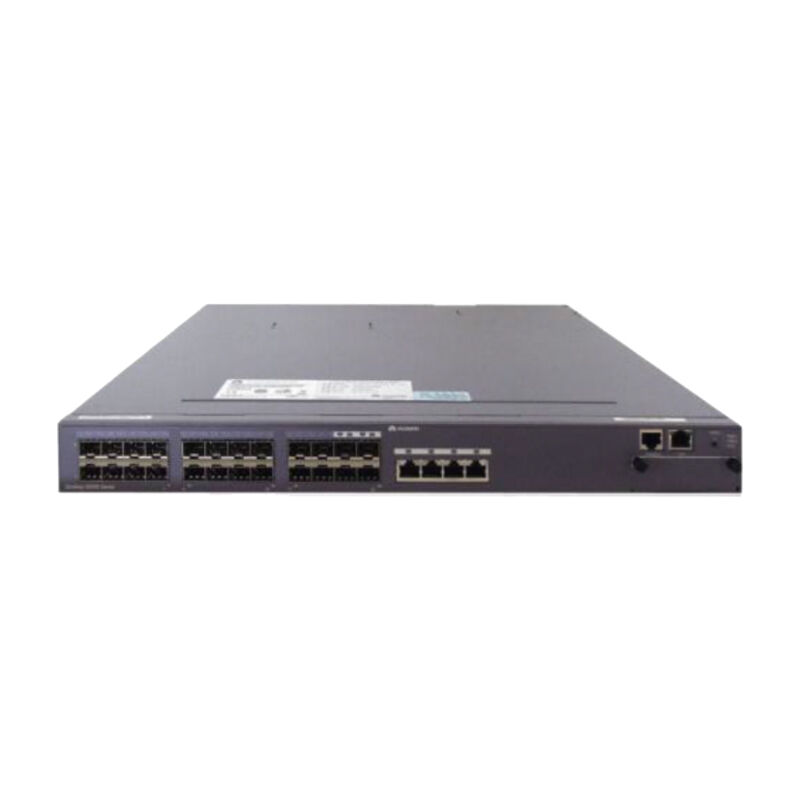

LS-S5328C-EI-24S
Document:
| Model | LS-S5328C-EI-24S |
|---|---|
| Part Number | 02351621 |
| Fixed Port | 24*10/100 /1000 Base-TX |
| Extended slot | Two extended slots, which can be installed with uplink subcard and stacking card respectively |
| Port switching capacity (bit/s) | 128 Gbit/s |
| Board switching capacity | 256 Gbit/s |
| Forwarding Performance | 96 Mpps |
| RPS | Not supported |
| PoE | No |
| Mean time between failures (MTBF) | 41.33 years when a 2x10GE card is configured; 50.00 years when a 4xGE front card is configured; 26.52 years when a 4x10GE front card is configured |
| Memory | 256 MB |
| Flash | 32 MB |
| Input voltage | AC: Rated voltage: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz DC: Rated voltage range: -48 V to -60 V, DC Maximum voltage: -36 to -72 V DC Note: POE hosts do not support DC power modules. |
| Power consumption | < 60 W |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm |
| Weight | Fully loaded ≤ 8.5 kg Empty loaded ≤ 5 kg |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| Model | LS-S5328C-EI-24S | LS-S5328C-PWR-EI | LS-S5352C-EI |
|---|---|---|---|
| Fixed Port | 24*10/100 /1000 Base-TX | 24*10/100 /1000 Base-TX | 48*10/100 /1000 Base-TX |
| Port switching capacity (bit/s) | 128 Gbit/s | 128 Gbit/s | 176 Gbit/s |
| Board switching capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
| Forwarding Performance | 96 Mpps | 96 Mpps | 132 Mpps |
| RPS | Not supported | Not supported | Not supported |
| PoE | No | Yes | No |
| Mean time between failures (MTBF) | 41.33 years when a 2x10GE card is configured; 50.00 years when a 4xGE front card is configured; 26.52 years when a 4x10GE front card is configured | 52 years when a 2x10GE card is configured; 55.4 years when a 4xGE front card is configured | 46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured |
| Memory | 256 MB | 256 MB | 256 MB |
| Flash | 32 MB | 32 MB | 32 MB |
| Power consumption | < 60 W | Max: 472 W (PoE: 370 W) | < 88 W |
