Brand Name:
Huawei
Model Number:
LS-S2326TP-SI-AC
Document:

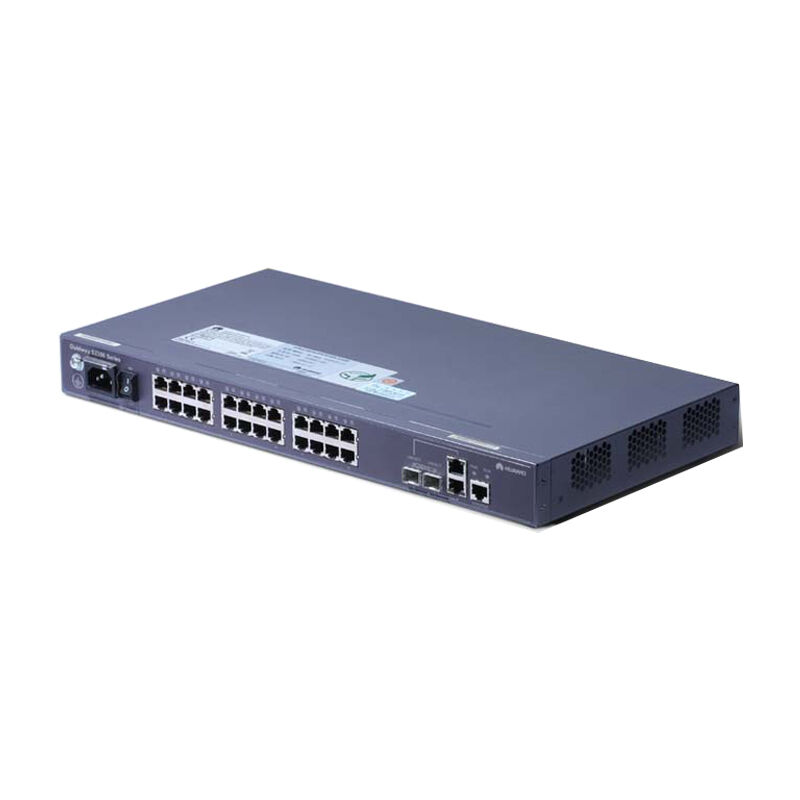

The Huawei LS-S2326TP-SI-AC (02351372) is part of the S2300 Series Switches, designed for intelligent Ethernet access in IP MAN and intranet environments. This 1U chassis switch features 24 10/100 FastEthernet ports and 2 Combo GE ports (RJ-45 + SFP), supporting basic Layer 2 functionality with AC power input (110/220V).
| Specification | Details |
|---|---|
| Port Configuration | 24 x 10/100Base-TX ports + 2 Combo GE ports (10/100/1000Base-T or 100/1000Base-X) |
| Forwarding Performance | 6.6 Mpps |
| Switching Capacity | 8.8 Gbit/s (port), 32 Gbit/s (backplane) |
| MAC Address Table | 8K entries with configurable aging time and learning limits |
| VLAN Features | Supports 4096 VLANs, port-based VLAN, IEEE 802.1Q |
| QoS | Port rate limiting, 4 priority queues, SP/WRR scheduling |
| Surge Protection | 7 kV per port (15 kV with additional protection device) |
| Power Supply | AC 100-240V, 50/60Hz, <15.5W power consumption |
| Dimensions | 442 x 220 x 43.6 mm (W x D x H) |
| Weight | <2.4 kg |
| Module Type | Model | Description |
|---|---|---|
| FE-SFP Optical Transceiver | SFP-FE-SX-MM1310 | 100M/155M Multi-mode (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | 100M/155M Single-mode (1310nm, 15km, LC) | |
| S-SFP-FE-LH40-SM1310 | FE Single-mode (1310nm, 40km, LC) | |
| GE-SFP Optical Transceiver | eSFP-GE-SX-MM850 | GE Multi-mode (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | GE Single-mode (1310nm, 10km, LC) | |
| S-SFP-GE-LH40-SM1310 | GE Single-mode (1310nm, 40km, LC) | |
| S-SFP-GE-LH40-SM1550 | GE Single-mode (1550nm, 40km, LC) | |
| GE Copper Transceiver | SFP-1000BaseT | GE Electrical Interface (100m, RJ45) |
| Feature | LS-S2326TP-SI-AC | LS-S2326TP-PWR-EI | LS-S2309TP-PWR-EI |
|---|---|---|---|
| Ports | 24x10/100 + 2xGE Combo | 24x10/100 + 2xGE Combo | 8x10/100 + 1xGE Combo |
| Forwarding Performance | 6.6 Mpps | 6.6 Mpps | 2.7 Mpps |
| Switching Capacity | 8.8 Gbit/s | 8.8 Gbit/s | 3.6 Gbit/s |
| Power Features | AC only | AC with PoE (740W) | Dual AC with PoE (124W) |
| Dimensions (WxDxH) | 442x220x43.6 mm | 442x420x43.6 mm | 320x220x43.6 mm |
| Weight | <2.4 kg | 4 kg | 2.5 kg |
