Brand Name:
Huawei
Model Number:
LS-S2318TP-EI-AC
Document:
| Feature | Specification |
|---|---|

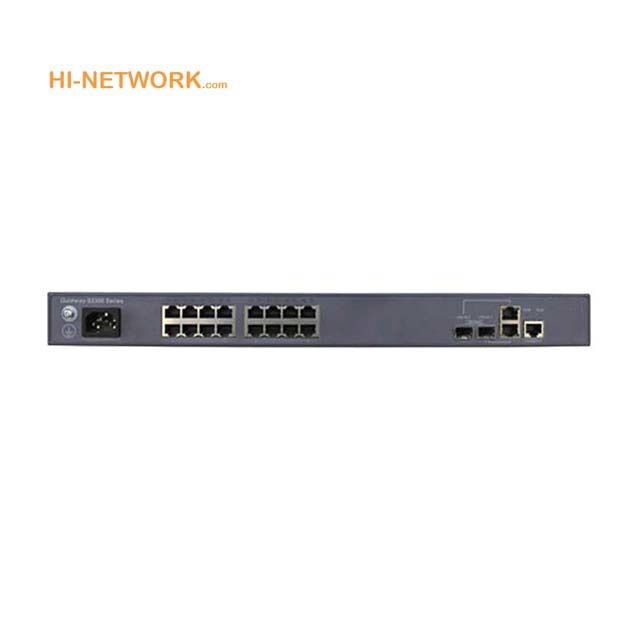

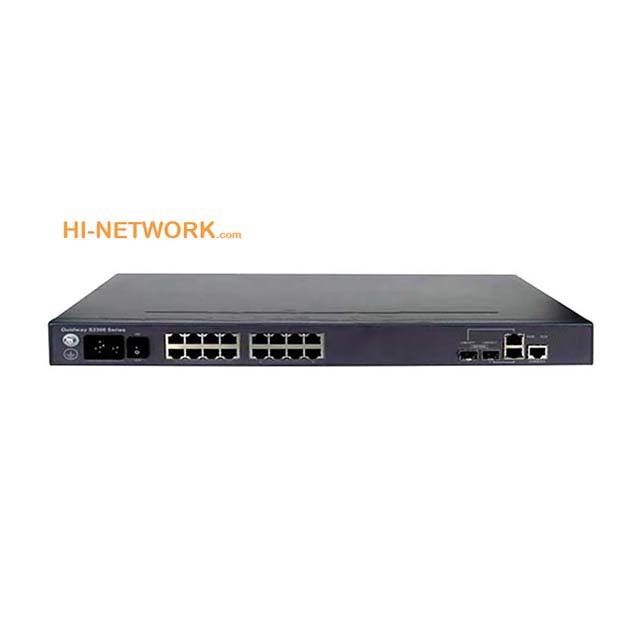

| Port Configuration | 16 x 10/100Base-TX ports, 2 x gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X) |
| Forwarding Performance | 5.4 Mpps |
| Port Switching Capacity | 7.2 Gbit/s |
| Backplane Switching Capacity | 32 Gbit/s |
| MAC Address Table | Supports 8K entries with manual configuration, aging time settings, and learning limits |
| VLAN Features | Supports IEEE 802.1Q, port-based VLAN, MAC-based VLAN, QinQ, and VLAN switching |
| QoS | Port rate limiting, traffic prioritization, and multiple queue algorithms (SP, WRR, SP+WRR) |
| IPv6 Support | Host functions, static routing, ACL, and MLD snooping |
| Multicast | IGMP snooping, multicast load sharing, and rate limiting |
| Security | IEEE 802.1X authentication, ARP detection, port security, and packet filtering |
| Surge Protection | 7 kV per port (15 kV with additional protection device) |
| Management | CLI, Telnet, SNMP, Web management, and HGMP v2 |
| Operating Environment | 0°C to 50°C (long term), -5°C to 55°C (short term), 10%-90% humidity |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions | 442 mm x 220 mm x 43.6 mm |
| Weight | < 2.4 kg |
| Power Consumption | < 14.5 W |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
