Brand Name:
Huawei
Model Number:
LS-S2309TP-SI-AC
Document:
The LS-S2309TP-SI-AC is part of the Huawei S2300 Series Switches, designed as next-generation Ethernet intelligent access switches. These switches are primarily deployed on IP MAN and intranets, meeting requirements for carrying various Ethernet services and network access. Built on high-performance hardware and Huawei's Versatile Routing Platform (VRP) software, the S2300 series offers rich service features, enhanced operability, manageability, and service expansibility.

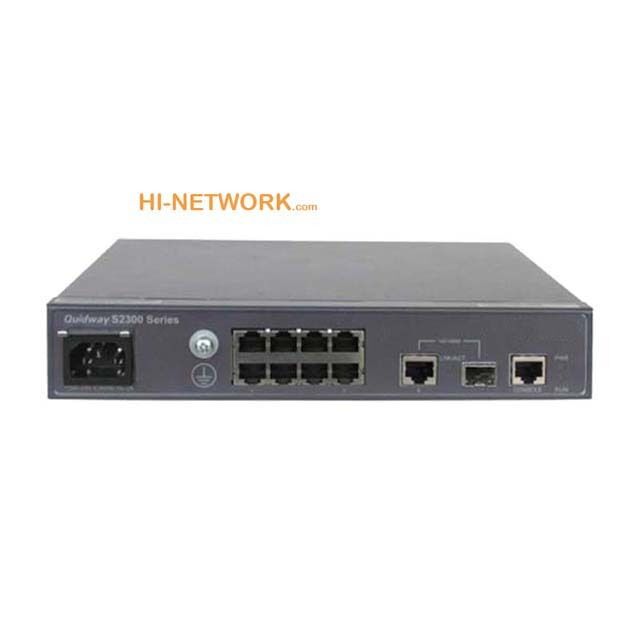

This model features 8 10/100 FastEthernet ports and 1 Combo GE (RJ-45 or SFP) uplink with AC 110/220V power supply, supporting basic layer 2 functionality.
| Specification | Details |
|---|---|
| Ports | 8 x 10/100Base-TX ports, 1 x gigabit Combo port (10/100/1000Base-T or 100/1000Base-X) |
| Forwarding performance | 2.7 Mpps |
| Port switching capacity | 3.6 Gbit/s |
| Backplane switching capacity | 32 Gbit/s |
| MAC address table | 8K entries, supports manual addition/deletion, aging time configuration, port-based learning limits, and blackhole MAC addresses |
| VLAN features | Supports IEEE 802.1Q (VLAN) with 4096 VLANs and port-based VLAN |
| QoS | Port rate limit, traffic rate limit, 4 priority queues per port, 802.1p mapping, SP/WRR/SP+WRR algorithms |
| IPv6 features | IPv6 host functions, static route configuration |
| Multicast | IGMP v1/v2/v3 snooping, multicast load sharing, port-based rate limit |
| Port mirroring | 1:1 or N:1 port mirroring with packet forwarding on observing port |
| Security | Port isolation, multicast/broadcast/unknown unicast suppression, CPU protection |
| Surge protection | 7 kV per port (15 kV with additional protection device) |
| Management | iStack, CLI, Telnet, SNMP v1/v2/v3, RMON, HGMP v2, SSH v2, Web management, GVRP |
| Operating environment | 0°C to 50°C (long term); -5°C to 55°C (short term); 10% to 90% humidity (non-condensing) |
| Power supply | AC: 100-240V, 50/60Hz (90-264V max) |
| Dimensions | 250 mm x 180 mm x 43.6 mm |
| Weight | < 1.4 kg |
| Power consumption | < 12.8 W |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Feature | LS-S2309TP-SI-AC | LS-S2309TP-EI-AC |
|---|---|---|
| IPv6 features | Supports IPv6 host functions and static route configuration | Adds IPv6 ACL and MLD v1/v2 snooping |
| VLAN features | IEEE 802.1Q with 4096 VLANs, port-based VLAN | Adds MAC-based VLAN, basic QinQ, 1:1/N:1 VLAN switching |
| Port mirroring | 1:1 or N:1 port mirroring with packet forwarding | Adds Remote Switched Port Analyzer (RSPAN) |
| Power supply | AC only | Some models support DC |
