Brand Name:
Huawei
Model Number:

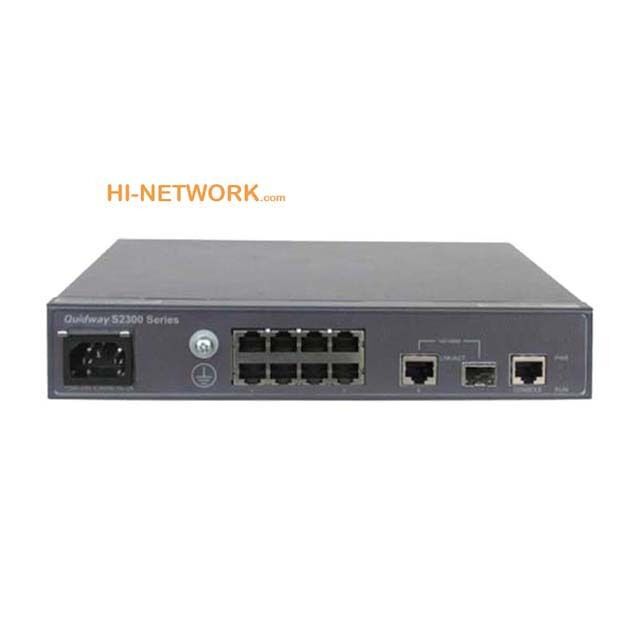

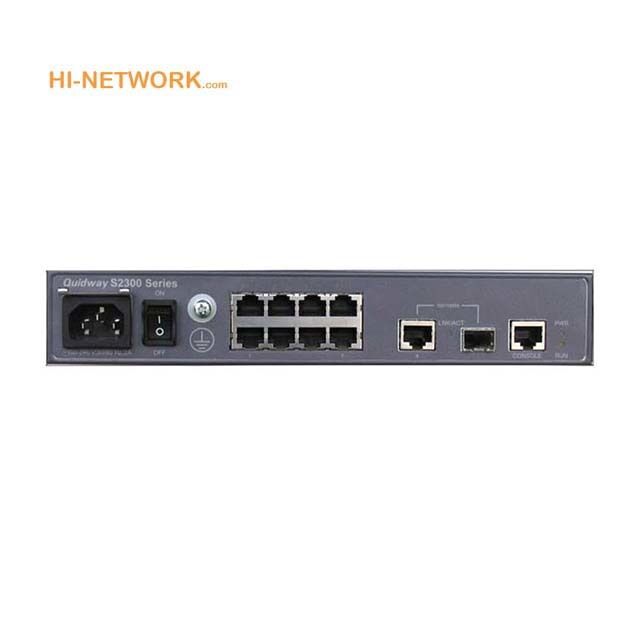

LS-S2309TP-EI-AC
Document:
| Specification | Details |
|---|---|
| Port | Eight 10/100Base-TX ports and one gigabit Combo port (10/100/1000Base-T or 100/1000Base-X) |
| Forwarding performance | 2.7 Mpps |
| Port switching capacity | 3.6 Gbit/s |
| Backplane switching capacity | 32 Gbit/s |
| MAC address table | Supports 8K MAC address entries with manual addition/deletion, aging time configuration, port-based learning disable, and blackhole MAC addresses |
| VLAN features | Supports IEEE 802.1Q (VLAN) with 4096 VLANs, port-based VLAN, MAC-based VLAN, basic QinQ, and VLAN switching (1:1 and N:1) |
| QoS | Supports port rate limit, traffic rate limit, priority queues (SP, WRR, SP+WRR), and traffic classification based on multiple parameters |
| IPv6 features | Supports IPv6 host functions, static route configuration, IPv6 ACL, and MLD v1/v2 snooping |
| Multicast | Supports IGMP v1/v2/v3 snooping, multicast load sharing, and port-based multicast rate limit |
| Port mirroring | Supports 1:1 or N:1 port mirroring, RSPAN, traffic-based mirroring, and packet forwarding on observing port |
| Security | Comprehensive security features including 802.1X authentication, ARP detection, IP Source Guard, port isolation, and CPU protection |
| Surge protection | 7 kV per port (15 kV with additional protection device) |
| Management | Supports multiple management protocols including SNMP v1/v2/v3, RMON, HGMP v2, SSH v2, and Web management |
| Operating environment | 0°C to 50°C (long term); -5°C to 55°C (short term); 10% to 90% relative humidity (non-condensing) |
| Power supply | AC: 100V to 240V, 50/60 Hz (90V to 264V maximum) |
| Dimensions | 250 mm * 180 mm * 43.6 mm (W*D*H) |
| Weight | < 1.4 kg |
| Power consumption | < 12.8 W |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Feature | LS-S2309TP-EI-AC | LS-S2309TP-SI-AC |
|---|---|---|
| IPv6 features |
|
|
| VLAN features |
|
|
| Port mirroring |
|
|
| Power supply | With some model support DC | All model AC based |
