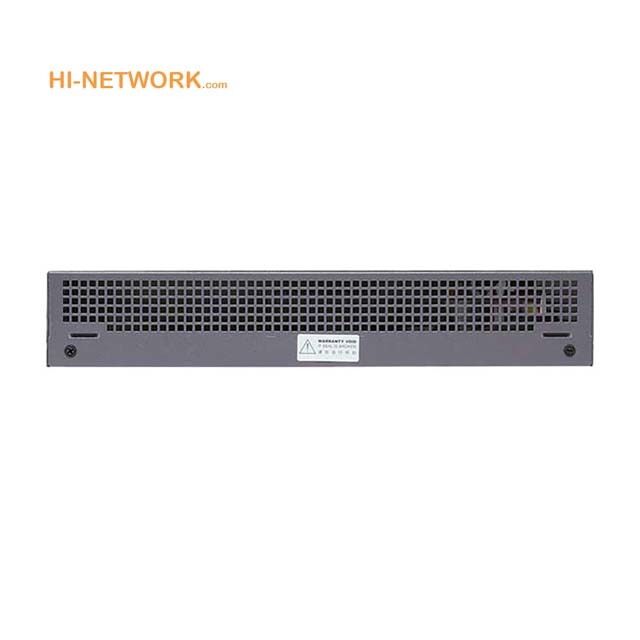

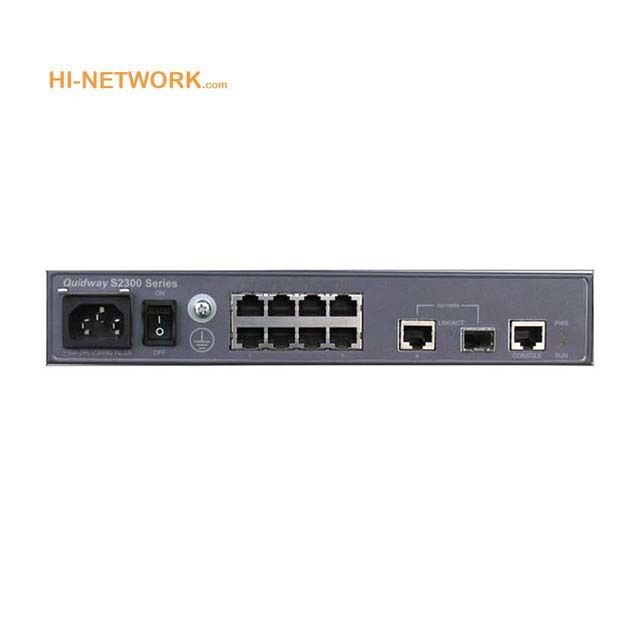

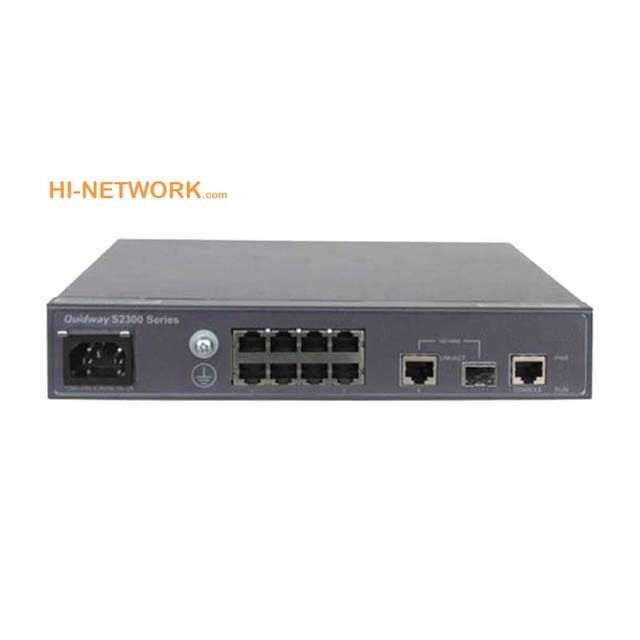

Brand Name:
Huawei
Model Number:
LS-S2309TP-EI-DC
Document:
| Specification | Details |
|---|---|
| Ports | 8x 10/100Base-TX ports, 1x gigabit Combo port (10/100/1000Base-T or 100/1000Base-X) |
| Forwarding performance | 2.7 Mpps |
| Port switching capacity | 3.6 Gbit/s |
| Backplane switching capacity | 32 Gbit/s |
| MAC address table | 8K entries, supports manual configuration, aging time, and learning limits |
| VLAN features | Supports 4096 VLANs, port/MAC-based VLAN, QinQ, and VLAN switching |
| QoS | Advanced traffic management with multiple queuing and classification options |
| IPv6 features | Supports host functions, static routing, ACL, and MLD snooping |
| Multicast | IGMP snooping v1/v2/v3 with load sharing and rate limiting |
| Security | Comprehensive protection including 802.1X, ARP detection, and port security |
| Surge protection | 7 kV per port (15 kV with additional protection device) |
| Management | Multiple options including CLI, SNMP, Web, and SSH |
| Operating environment | 0°C to 50°C (long term), 10% to 90% humidity |
| Power supply | DC: -48V to -60V (operational range: -36V to -72V) |
| Dimensions | 250 mm x 180 mm x 43.6 mm |
| Weight | < 1.4 kg |
| Power consumption | < 12.8 W |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Feature | LS-S2309TP-EI-DC | LS-S2309TP-PWR-EI |
|---|---|---|
| Fixed Ports | 8x 10/100BASE-T, 1x Combo port, 1x Console | 8x 10/100BASE-T, 1x Combo port, 1x Console |
| Forwarding performance | 2.7 Mpps | 2.7 Mpps |
| Port switching capacity | 3.6 Gbit/s | 3.6 Gbit/s |
| Backplane switching capacity | 32 Gbit/s | 32 Gbit/s |
| Power supplies | DC power supplies | Two pluggable AC power supplies with PoE |
| Power consumption | 12.8 W | 154 W (PoE power = 124 W) |
| PoE (Power over Ethernet) | No | Yes |
| Dimensions | 250 x 180 x 43.6 mm | 320 x 220 x 43.6 mm |
| Weight | 1.4 kg | 2.5 kg |
