Brand Name:
Huawei
Model Number:
LS-S2352P-EI-AC
Document:
The LS-S2352P-EI-AC is part of the Huawei S2300 Series Switches, designed as next-generation Ethernet intelligent access switches. These switches are primarily deployed on IP MAN and intranets to meet various Ethernet service requirements. Built on high-performance hardware and Huawei's Versatile Routing Platform (VRP) software, the S2300 series offers enhanced operability, manageability, and service expansibility.

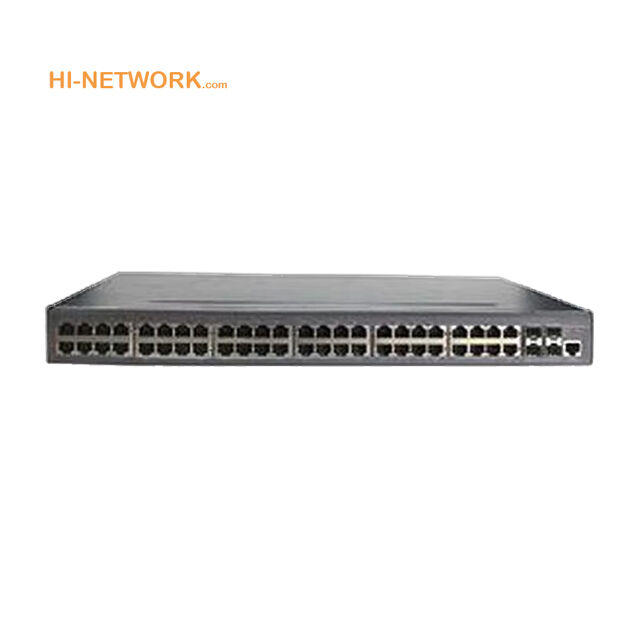

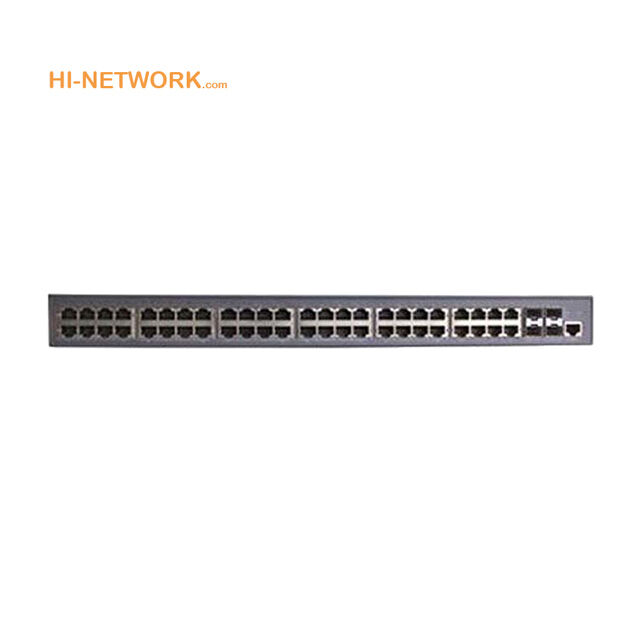

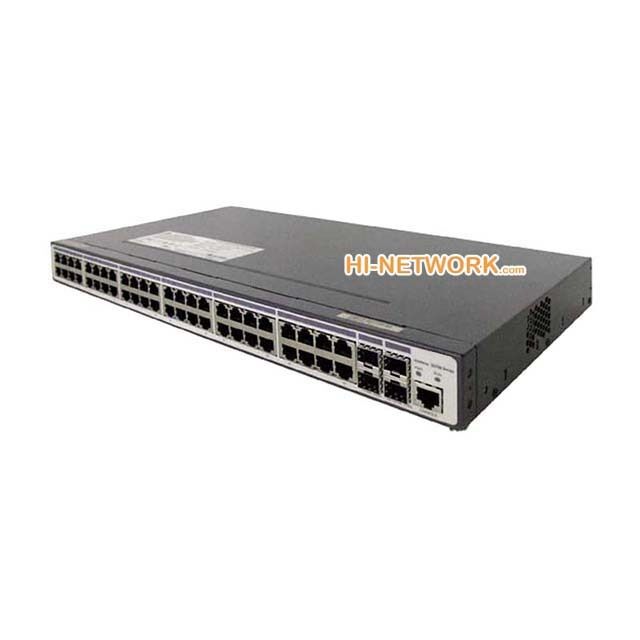

This 1U chassis switch features 48 10/100 Fast Ethernet ports, 2 100/1000 SFP ports, and 2 SFP uplinks, with AC 110/220V power supply. It supports QoS and comprehensive Layer 2 features.
| LS-S2352P-EI-AC Specification | |
|---|---|
| Port | 48 10/100BaseTX ports, 2 100/1000Base-X SFP ports, and 2 1000Base-X SFP ports |
| Forwarding performance | 13.2 Mpps |
| Port switching capacity | 17.6 Gbit/s |
| Backplane switching capacity | 32 Gbit/s |
| MAC address table | Supports 8K MAC address entries with manual addition/deletion, aging time configuration, and port-based learning limits |
| VLAN features | Supports IEEE 802.1Q (VLAN), 4096 VLANs, port-based VLAN, MAC-based VLAN, QinQ, and VLAN switching |
| QoS | Supports port rate limit, traffic rate limit, priority queues, and multiple scheduling algorithms |
| IPv6 features | Supports IPv6 host functions, static routing, ACL, and MLD snooping |
| Multicast | Supports IGMP snooping, multicast load sharing, and port-based rate limiting |
| Port mirroring | Supports 1:1 or N:1 mirroring, RSPAN, and traffic-based mirroring |
| Security | Supports 802.1X authentication, ARP detection, IP Source Guard, and multiple authentication methods |
| Surge protection | 7 kV per port (15 kV with additional protection device) |
| Management | Supports iStack, CLI, SNMP, RMON, Web management, and various protocols |
| Operating environment | 0°C to 50°C (long term); -5°C to 55°C (short term); 10% to 90% humidity |
| Power supply | AC: 100-240V, 50/60Hz; DC: -48V to -60V (non-PoE models only) |
| Dimensions | 442 mm * 220 mm * 43.6 mm |
| Weight | < 3 kg |
| Power consumption | < 38 W |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Feature | LS-S2352P-EI-AC | LS-S2326TP-PWR-EI |
|---|---|---|
| Fixed Ports | 48 10/100BaseTX + 2 100/1000Base-X SFP + 2 1000Base-X SFP | 24 10/100Base-TX + 2 gigabit Combo ports |
| Forwarding performance | 13.2 Mpps | 6.6 Mpps |
| Port switching capacity | 17.6 Gbit/s | 8.8 Gbit/s |
| Backplane switching capacity | 32 Gbit/s | 32 Gbit/s |
| Power supplies | AC: 100-240V, 50/60Hz | Supports AC and PoE |
| Power consumption | < 38 W | < 868 W (PoE power = 740 W) |
| Dimensions | 442 * 220 * 43.6 mm | 442 * 420 * 43.6 mm |
| Weight | < 3 kg | < 4 kg |
