Place of Origin:
China
Brand Name:
Huawei
Certification:
CE
Model Number:
S5735I-S8T4SN-V2
| Item | Details |
|---|---|

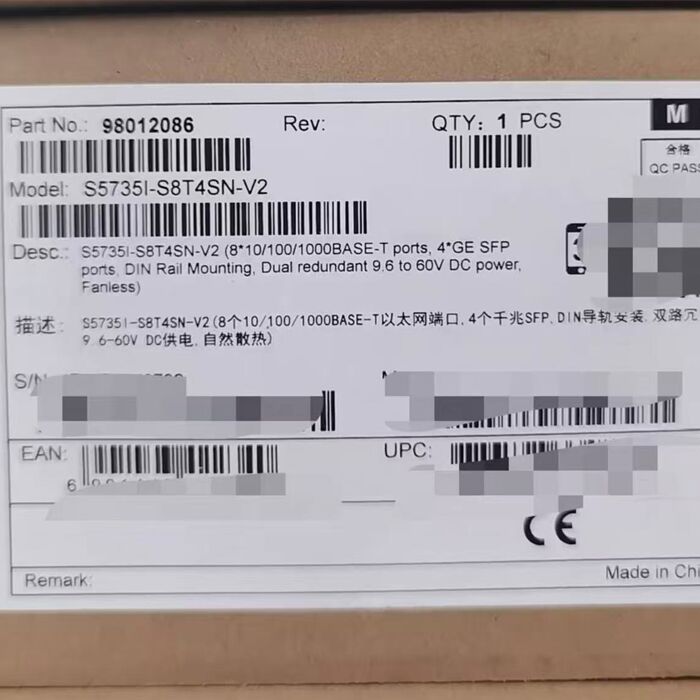

| Description | S5735I-S8T4SN-V2 (8*10/100/1000BASE-T ports, 4*GE SFP ports, DIN Rail Mounting, Dual redundant 9.6 to 60V DC power, Fanless) |
| Part Number | 98012086 |
| Model | S5735I-S8T4SN-V2 |
| First supported version | V600R022C01 |
|

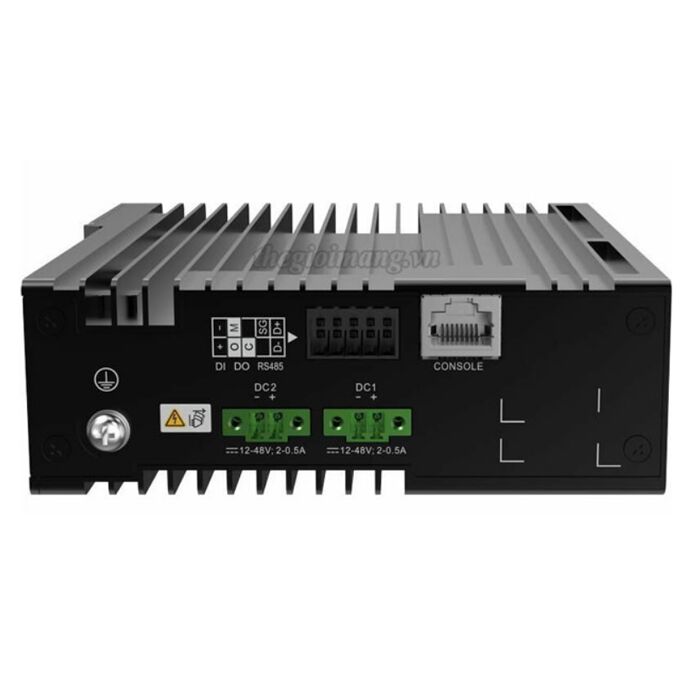

1 |
DI port |
2 |
DO port |
|
3 |
RS485 port |
4 |
One console port |
|
5 |
Ground screw NOTE:
It is used with a ground cable.
|
6 |
Two DC input power sockets NOTE:
Applicable external power module: PAC60S12-AN |
|
7 |
Eight 10/100/1000BASE-T ports |
8 |
Four 1000BASE-X ports |
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 10/100/1000BASE-T port | RJ45 | A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. |
Ethernet cable |
| 1000BASE-X port | SFP | A 1000BASE-X port can send and receive data at 1000 Mbit/s. |
|
| Console port | RJ45 | The console port is connected to a console for on-site configuration. |
Console cable |
| RS-485 port | 2x5-Pin Phoenix Connector |
The RS-485 port is used for data collection.
The default configurations of the RS-485 port are as follows:
|
2x5-Pin Phoenix Connector |
| DI port | 2x5-Pin Phoenix Connector |
The DI port is used to check remote communication input and level signals. Signal type: Passive DI signals, Boolean value (short circuit and open circuit) |
2x5-Pin Phoenix Connector |
| DO port | 2x5-Pin Phoenix Connector |
The DO port outputs signals so that the connected device can take corresponding actions. Signal type: Passive DO signals, Boolean value (short circuit and open circuit) External power supply: voltage less than 60 V DC and circuit current less than 0.5 A |
2x5-Pin Phoenix Connector |
The S5735I-S8T4SN-V2 has similar indicators to those on the S5735I-S8U4XN-V2 except that the S5735I-S8T4SN-V2 does not have PoE and USB indicators. For details, see the S5735I-S8U4XN-V2.
The switch can use a single power module or two power modules for 1+1 power redundancy. The switch can be directly connected to an external 12 V to 48 V DC power supply or powered by the PAC60S12-AN.
The switch has no fans and uses natural heat dissipation.
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 46.0 mm x 133.0 mm (5.91 in. x 1.81 in. x 5.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 46.0 mm x 142.0 mm (6.38 in. x 1.81 in. x 5.59 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 235.0 mm x 90.0 mm x 205.0 mm (9.25 in. x 3.54 in. x 8.07 in.) |
| Chassis height [U] | 3.65 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.95 kg (2.09 lb) |
| Weight with packaging [kg(lb)] | 1.23 kg (2.71 lb) |
| Typical power consumption [W] | 17.44 W |
| Typical heat dissipation [BTU/hour] | 59.48 BTU/hour |
| Maximum power consumption [W] | 18.59 W |
| Maximum heat dissipation [BTU/hour] | 63.40 BTU/hour |
| Static power consumption [W] | 14.10 W |
| MTBF [years] | 104.86 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | 1+1 |
| Long-term operating temperature [°C(°F)] |
0–1800 m (0–5906 ft.) altitude, industrial optical modules:
|
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +85°C (-40°F to +185°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | DC external |
| Rated input voltage [V] | DC input: 12 V DC to 48 V DC |
| Input voltage range [V] | DC input: 9.6 V DC to 60 V DC |
| Maximum input current [A] | 2 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | DC power: ±2 kV in common mode and ±1 kV in differential mode |
| Ingress protection level (dustproof/waterproof) | IP40 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
