Place of Origin:
China
Brand Name:
ZTE
Certification:
CE
Model Number:
GTGH
Document:
| Brand | ZTE |
| Model | GTGH |
| GPON Port | 16-GPON Port |
| Type | C++ Module: Single Fiber Bidirectional Optical Module, Class C++ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimum Output Optical Power | C++ Module: 4.50 dBm |
| Maximum Output Optical Power | C++ Module: 8.00 dBm |
| Maximum Receiver Sensitivity | C++ Module: -30 dBm @10E-10 |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C++ Module: -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Weight | 1kg |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| GTGO | 8 ports GPON board with 8 B+ modules |
| GTGO | 8 ports GPON board with 8 C+ modules |
| GTGO | 8 ports GPON board with 8 C++ modules |

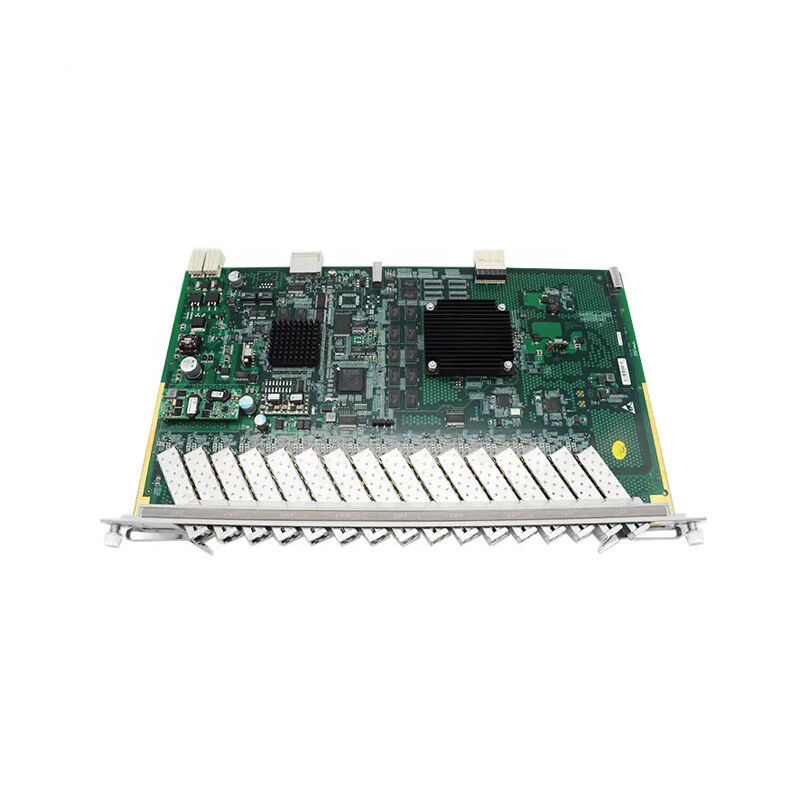

| GTGH | 16 ports GPON board with 16 B+ modules |
| GTGH | 16 ports GPON board with 16 C+ modules |
| GTGH | 16 ports GPON board with 16 C++ modules |
| GTTO | 8 ports 10G GPON board with 8 10G GPON modules |
| GTXO | 8 ports 10G GPON board with 8 10G GPON modules |
| ETGO | 8 ports EPON board with 8 modules |
| ETGH | 16 ports EPON board with 16 modules |
| ETTO | 8 ports 10G EPON board with 8 10G EPON modules |
