Name: GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: C320 with GTGH
Price: 1885 USD
Availability: InStock

Home > Products > OLT ZTE >

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

GBIC FTTH OLT ZTE

SMXA3 OLT ZTE

gtgh zte Board

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

C320 with GTGH

Chat Now

Request A Quote

Product Details

Condition:

New; In Stock

Model:

Various Models (e.g., ZXA10 C300, ZXA10 C320)

Security Features:

Encryption, Authentication

Dimensions:

Varies By Model, Typically Rack-mountable

Product Type:

Optical Line Terminal

Uplink Interface:

10G/1G Ethernet

Operating Temperature:

-5°C To 55°C

Maximum Ports:

Up To 128 PON Ports

Application:

FTTx Networks, Broadband Access

Fiber Type:

Single-mode Fiber

Interface Type:

GPON, EPON

Power Supply:

AC/DC Redundant Power Supply

Data Rate:

Up To 2.5 Gbps Downstream Per PON Port

Manufacturer:

ZTE Corporation

Management:

SNMP, CLI, Web GUI

Highlight:

GBIC FTTH OLT ZTE

SMXA3 OLT ZTE

gtgh zte Board

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$1885

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

50 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink Device

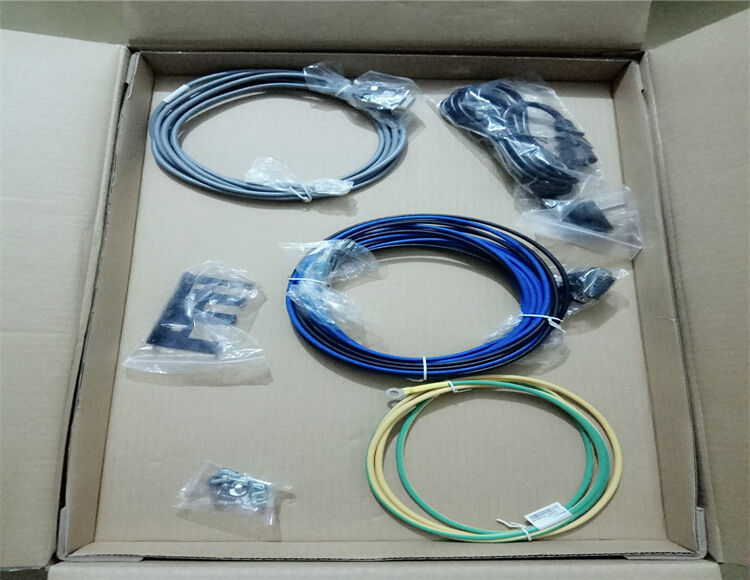

Package Contents

Condition: Original In New Box

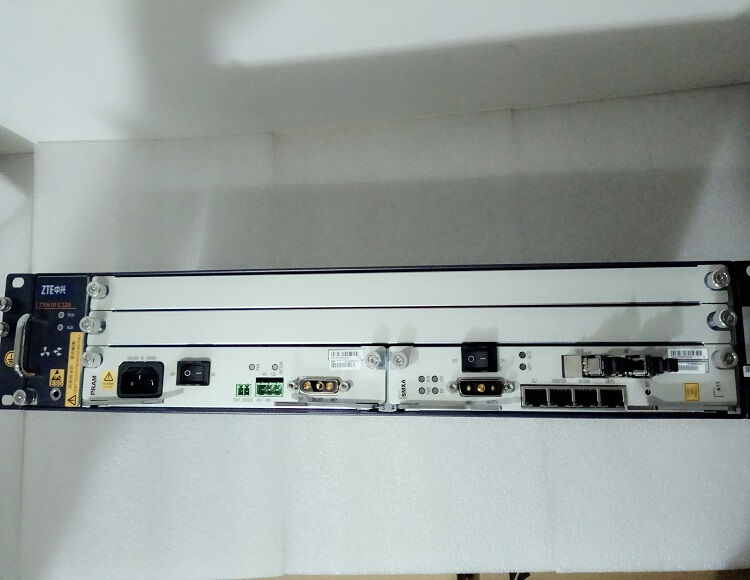

Model: ZTE ZXA10 C320

1 × C320 Chassis
1 × PRAM POWER Board
1 × SMXA3/5 Main Control Board
2 × 16 ports GTGH PON Board

ZTE ZXA10 C320 is a compact, full-service optical access convergent platform that provides carrier-class QoS and reliable network performance to meet the requirements for small-scale FTTx service implementations.

ZXA10 C320 OLT Product Overview

The ZTE ZXA10 C320 OLT is a compact, high-density full-service xPON converged optical access platform designed for next-generation optical access networks. It supports GPON, EPON, P2P, 10GEPON, and XG-PON1 common platform access, enabling comprehensive service aggregation and management control for HSI, VoIP, IPTV, CATV, mobile backhaul, WiFi, and other full-service applications.

Key Features

Compact 2U height design saves installation space
High line card density with industry-leading 16-port GPON/EPON capability
Single-frame capacity: 32 G/EPON ports and 96 channels P2P GE port
Unified platform supporting GPON/EPON/P2P/10G EPON/XG-PON1 access
Future-ready with TWDM-PON technology support
Unified bearer for voice, high-speed Internet, IPTV, TDM, and mobile backhaul services
Compatible with ZXA10 C300 service boards for cost savings

Technical Specifications

Specification	Details
Brand	ZTE
Model	ZXA10 C320
Backplane Capacity	420 Gbit/s
Switching Capacity	84 Gbit/s
Service Card Slots	2 (GPON/P2P/XG-PON1)
Control Card Slots	2
Power Supply Cards	1
Uplink Card Slots	1 (10GE/GE/FE/E1/T1)
Maximum GPON Subscribers	4096
Management Interfaces	CLI, SSH, SNMP, telnet
Power Requirements	-48 V (DC), 230V (AC)
Operating Temperature/Humidity	-25°C to +55°C, 5% to 95%
Split Ratio	Up to 1:128
Range	20-60 km
Maximum Attenuation	SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation	NSR-DBA, SR-DBA
Supported Features	FEC, AES128, SCB, OLS
Dimensions	86.1 mm (H) × 482.6 mm (W) × 270 mm (D)
Power Supply Options	Dual DC: 48V/60V AC: 100V~240V
Cabinet Compatibility	Indoor: 2200mm × 600mm × 300mm standard cabinet Outdoor: EC90EB, EC70E

Board Specifications

Main-Control Switching Card SMXA

Panel interfaces: 1×10GE/GE(optical) + 1×GE/FE(Optical) + 1×GE/FE(electrical) + 1×serial port + 1×management FE + 1×environment detecting port
Ethernet uplink port: Maximum 2×10GE + 4×GE or 6×GE

Service Card (2 slots)

GTGO (8×GPON)
GTGH (16×GPON)
FTGK (48×P2P)
GTXO (8×XG-PON1)
