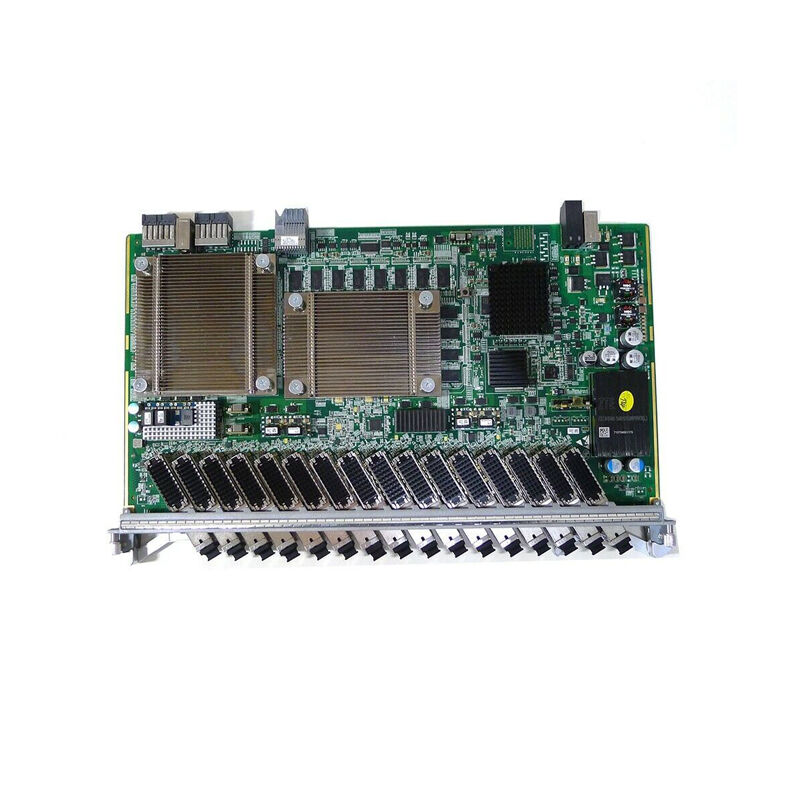

Name: GFBH OLT ZTE 16 Port XG PON & GPON Combo Interface Board For C600 C650 C680
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: GFBH
Price: 997 USD
Availability: InStock

Home > Products > OLT ZTE >

GFBH OLT ZTE 16 Port XG PON & GPON Combo Interface Board For C600 C650 C680

GPON OLT ZTE

C600 OLT ZTE

gfbh Interface Board

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

GFBH

Document:

zte-gfbh-datasheet.pdf

Chat Now

Request A Quote

Product Details

Condition:

Original New

Power Supply:

Dual AC/DC Redundant Power Supply

Uplink Interfaces:

10GE/GE SFP+

Maximum Ports:

16 PON Ports

Application:

FTTH, FTTB, FTTC Network Deployments

Management:

SNMP, CLI, Web GUI

Supported Pon Standards:

GPON, XG-PON, XGS-PON

Model:

ZXA10 C300

Product Type:

Optical Line Terminal (OLT)

Fan:

Intelligent Fan With Adjustable Speed

Manufacturer:

ZTE Corporation

Security Features:

MAC Filtering, Port Isolation, Encryption

Dimensions:

440mm X 420mm X 44mm

Downlink Interfaces:

GPON/EPON Ports

Operating Temperature:

-5°C To 55°C

Highlight:

GPON OLT ZTE

C600 OLT ZTE

gfbh Interface Board

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$997

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

50 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

ZTE GFBH 16 port GPON & XG PON Combo interface board suitable for C600 (include 10GE SFP module)

The ZTE GFBH Service Board is a 16-port XG-PON & GPON Combo service card designed for ZTE ZXA10 C600/C650/C680 GPON OLT systems. This advanced interface board supports 16 XG-PON & GPON SFP+ hybrid interfaces with maximum optical split ratios of 1:128 for both GPON and XG-PON technologies.

Product Overview

ZXA10 C600 is a large capacity optical access equipment based on the TITAN platform, meeting full-scenario access requirements for ultra-high bandwidth, big video, FMC and network re-architecture, while providing carrier-class QoS and security. The ZXA10 C680 represents ultra-large capacity optical access equipment with industry-leading 36 line card slots supporting up to 576 GPON/10G PON ports.

Technical Specifications

Brand	ZTE
Model Name	GFBH
Port Configuration	16-port
Interface Type	XG-PON & GPON Combo
Function	XG-PON & GPON service access
Specification	XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector
Weight	1.72 kg
Dimensions (L × H × W)	393.1 mm × 23.9 mm × 214 mm

Functional Modules

Management and Control Module: Configures, controls, and manages the card operations
PONMAC Module: Implements GPON layer functions per ITU-T G.984.3 and XGS-PON layer functions per ITU-T G.989.3 and G.987.3
NP Module: Handles data processing on service layer including bandwidth and QoS processing based on service types and user SLA requirements, compliant with TR156
Optical Module: Provides GPON optical interface compliant with ITU-T G.984.2 or XGS-PON optical interface compliant with ITU-T G.9807
Clock Module: Processes system clock in compliance with ITU-T G.8262, G.8264, and G.781 standards

Key Feature: This board includes 10GE SFP module and supports hybrid GPON/XG-PON operation with industry-leading optical split ratios for maximum network flexibility and scalability.
