Name: 10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: GFXH
Price: 1140 USD
Availability: InStock

Home > Products > OLT ZTE >

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

GFXH gpon board

OEM gpon board

GFXH Board

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

GFXH

Document:

zte-gfxh-datasheet.pdf

Chat Now

Request A Quote

Product Details

Condition:

New; In Stock

Compliance:

ITU-T G.984, IEEE 802.3ah, IEEE 802.3av

Fan:

Intelligent Fan Cooling System

Manufacturer:

ZTE Corporation

Model:

Various Models (e.g., ZXA10 C300, ZXA10 C320)

Operating Temperature:

-5°C To 55°C

Max Ports:

Up To 16/32/64 PON Ports Depending On Model

Management:

SNMP, CLI, Web GUI, Telnet

Security:

Supports Encryption And Authentication Protocols

Dimensions:

Varies By Model, Typically 440mm X 420mm X 44mm

Uplink Interface:

10G/1G Ethernet Ports

Power Supply:

AC/DC Redundant Power Supply Options

Type:

Optical Line Terminal (OLT)

Interface:

GPON, EPON, XG-PON, XGS-PON

Application:

Fiber To The Home (FTTH), Fiber To The Building (FTTB)

Highlight:

GFXH gpon board

OEM gpon board

GFXH Board

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$1140

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

20 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

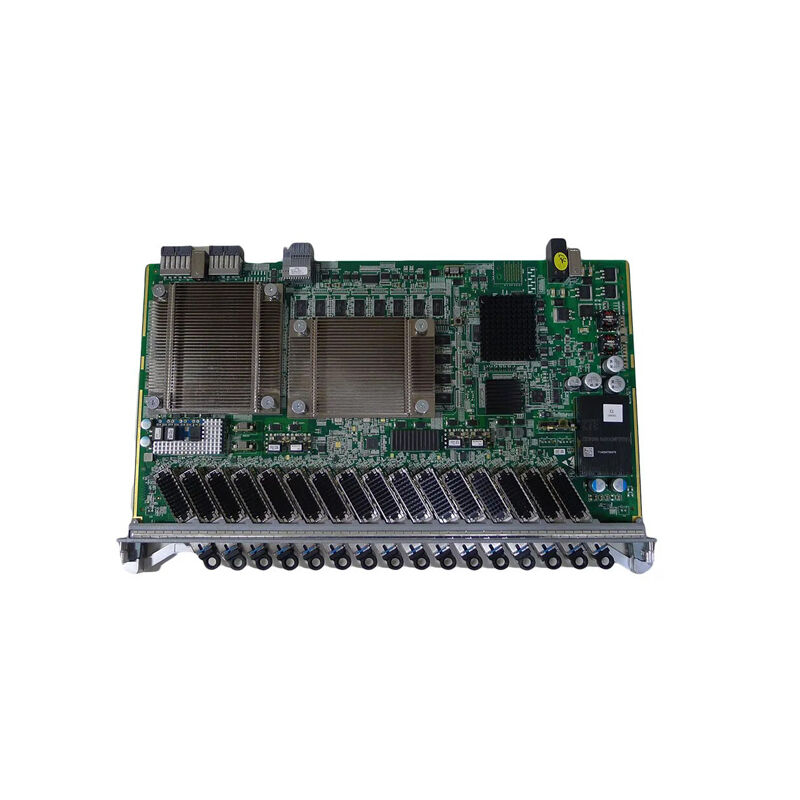

ZTE GFXH 16-port XG-PON OLT Interface Board

The ZTE GFXH Service Board is a 16-port 10G GPON OLT interface board designed to work with ONU devices to deliver GPON access services. This board is specifically engineered for ZTE ZXA10 C600/C650/C680 OLT platforms, which feature a 19-inch, 11U height unified platform with 17 service slots supporting multiple access technologies including GPON, XG-PON, XGS-PON, Combo PON, 10G-EPON and GE P2P.

Technical Specifications

Brand	ZTE
Item	GFXH
Port	16
Type	N1 Module: Single Fiber Bidirectional Optical Module N1 N2a Module: Single Fiber Bidirectional Optical Module N2a
Operating Wavelength	Tx: 1577 nm, Rx: 1270 nm
Encapsulation Type	SFP+
Port Rate	Tx: 10 Gbit/s, Rx: 2.488 Gbit/s
Minimum Output Optical Power	N1 Module: 2dBm N2a Module: 4dBm
Maximum Output Optical Power	N1 Module: 6dBm N2a Module: 8dBm
Maximum Receiver Sensitivity	N1 Module: -27.5dBm N2a Module: -29.50dBm
Optical Connector Type	SC/UPC
Optical Fiber Type	Single-mode
Reach	20.00 km
Saturation Optical Power	N1 Module: -7dBm N2a Module: -9dBm
Extinction Ratio	8.2dB
Weight	1.68kg
Dimensions (W x D x H)	393.1 mm(H) × 23.9 mm(W) × 214 mm(D)

Key Features

Provides redundant control & switch card on the control plane with dual matrix load balancing on the forwarding plane
Supports ISSU (In-Service Software Upgrade) and NSR (Non-Stop Routing)
Compatible with 16-port GPON cards, 16-port XGS-PON/XG-PON/Combo PON/10G-EPON cards, 16-port 10GE cards and 48-port GE P2P cards
Supports multiple services including VoIP, HSI, IPTV, VPN, and mobile backhaul
Supports CFM functions defined by 802.1ag
Features Type-B/C PON protection, Ethernet and IP service protection, and redundant protection of switch & control cards, power cards, fans, and uplink interfaces
Provides comprehensive equipment security, system security, network security and service security features

Compatible Service Boards

PON Type	XG-PON	XGS-PON	XG-PON and GPON Combo	XGS-PON and GPON Combo	Port
C300/C320/C350	GTGO	GTXO	GTTO	GTBO	8
C600/C650/C680	GFGH	GFXH	GFTH	GFBN/GFBH	16

Platform Compatibility: This GFXH service board is designed for ZTE ZXA10 C600, C650, and C680 OLT platforms, which come equipped with 2 control boards, 8x10GE uplink ports, 2xDC power boards, 2 DC power cables, and 1 earth cable.
