Name: GTXO OLT ZTE Network Interface Card 40Gbit 8 Port With ONU
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: GTXO
Price: 280 USD
Availability: InStock

Home > Products > OLT ZTE >

GTXO OLT ZTE Network Interface Card 40Gbit 8 Port With ONU

GTXO OLT ZTE

OLT ZTE Interface Card

GTXO network interface card

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

GTXO

Document:

zte-gtxo-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

ZTE GTXO ZXA10 C320 C350 C300 8-port XG-PON OLT Interface Board (full With C+ Modules)

Condition:

Original New; In Stock

Downstream_Rate:

2.488 Gbps (GPON), 1.25 Gbps (EPON)

Weight:

Approx. 3.5 Kg

Upstream_Rate:

1.244 Gbps (GPON), 1.25 Gbps (EPON)

Model:

ZXA10 C320

Type:

Optical Line Terminal

Operating_Temperature:

-5°C To 55°C

Management:

SNMP, CLI, Web GUI

Pon_Technology:

GPON/EPON

Compliance:

ITU-T G.984, IEEE 802.3ah

Interface_Type:

Gigabit Ethernet, 10 Gigabit Ethernet

Fiber_Type:

Single-mode Fiber

Power_Supply:

AC/DC Redundant Power Supply

Max_Ports:

Up To 16 PON Ports

Dimensions:

440mm X 220mm X 44mm

Highlight:

GTXO OLT ZTE

OLT ZTE Interface Card

GTXO network interface card

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$280

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

80 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

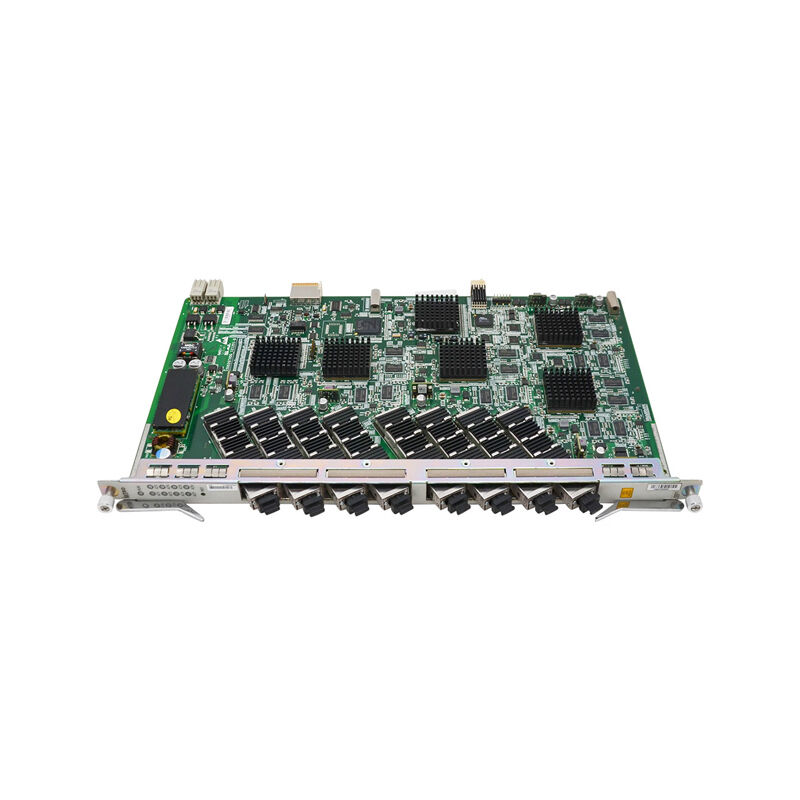

ZTE GTXO ZXA10 C320 C350 C300 8-port XG-PON OLT Interface Board

The ZTE GTXO Service Board is an 8-port 10G GPON OLT interface board designed to work with ONU devices for GPON access service delivery. The ZXA10 C320 represents a new-generation compact OLT solution at only 2U height, optimizing installation space while delivering high line card density with industry-leading 16-port GPON/EPON and 48-channel P2P board capability. A single frame can support 32 G/EPON ports and 96 channels of P2P GE ports.

The ZTE C320 platform supports multiple access technologies including GPON, EPON, P2P, 10G EPON, and XG-PON1, with future compatibility for TWDM-PON technology. It provides unified bearer services for voice, high-speed Internet access, IPTV, traditional TDM, and mobile backhaul applications. Built on a scalable OLT hardware and software architecture, it maintains compatibility with ZXA10 C300 service boards while reducing board costs.

Technical Specifications

Brand	ZTE
Model	GTXO
Port	8
Forwarding Rate	40Gbit/s
Maximum Differential Fibre Distance	40 km
Board Supporting Downstream FEC	Yes
CAR	Yes
MAX Split Ratio	0.219444444
Port Rate	Send: 9.95Gbit/s Receive: 2.49Gbit/s
Working Temperature	-40℃ to +65℃
Board Supporting Upstream FEC	Yes
D-CCAP	Yes

Product Features

High density design with energy saving capabilities and low power consumption, supporting 2048 access users
Manual shutdown of idle PON ports to minimize power waste
Supports maximum distance difference of 40 km between ONUs and PON ports under the same PON port, simplifying network planning
Intelligent Management Channel for enhanced control
Level 4 HQoS to improve user experience
Easy to operate and maintain
Real-time rogue ONU detection and isolation to ensure stable business operation

Compatible Service Boards

GTGO	8 ports GPON board with 8 B+ modules
GTGO	8 ports GPON board with 8 C+ modules
GTGO	8 ports GPON board with 8 C++ modules
GTGH	16 ports GPON board with 16 B+ modules
GTGH	16 ports GPON board with 16 C+ modules
GTGH	16 ports GPON board with 16 C++ modules
GTTO	8 ports 10G GPON board with 8 10G GPON modules
GTXO	8 ports 10G GPON board with 8 10G GPON modules
ETGO	8 ports EPON board with 8 modules
ETGH	16 ports EPON board with 16 modules
ETTO	8 ports 10G EPON board with 8 10G EPON modules
