Name: 10GE C300 SCXN Uplink Card Placa Control Card For ZTE C300 C320
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: SCXN
Price: 110 USD
Availability: InStock

Home > Products > OLT ZTE >

10GE C300 SCXN Uplink Card Placa Control Card For ZTE C300 C320

10GE uplink card

Placa Control uplink card

scxn Control Card

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

SCXN

Document:

zte-scxn-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

ZTE SCXN Control And Switch Card For C300 Supporting 16 Port GPON Cards, 4x GE Uplink Interface, 2x Management Interface

Condition:

In Stock

Interface Types:

GPON, EPON, 10G PON

Product Type:

Optical Line Terminal (OLT)

Management:

SNMP, CLI, Web GUI, Telnet

Fiber Type:

Single-mode Fiber

Dimensions:

Standard 19-inch Rack Mountable

Application:

FTTx Networks, Broadband Access

Uplink Interfaces:

10GE, 1GE, 2.5GE

Security Features:

Encryption, Authentication, Access Control

Manufacturer:

ZTE Corporation

Model:

Various Models (e.g., ZXA10 C300, ZXA10 C320)

Maximum Ports:

Up To 16 PON Ports Per Chassis

Compliance Standards:

ITU-T G.984, IEEE 802.3ah

Power Supply:

Redundant AC/DC Power Supply Options

Operating Temperature:

-5°C To 55°C

Highlight:

10GE uplink card

Placa Control uplink card

scxn Control Card

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$110

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

60 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

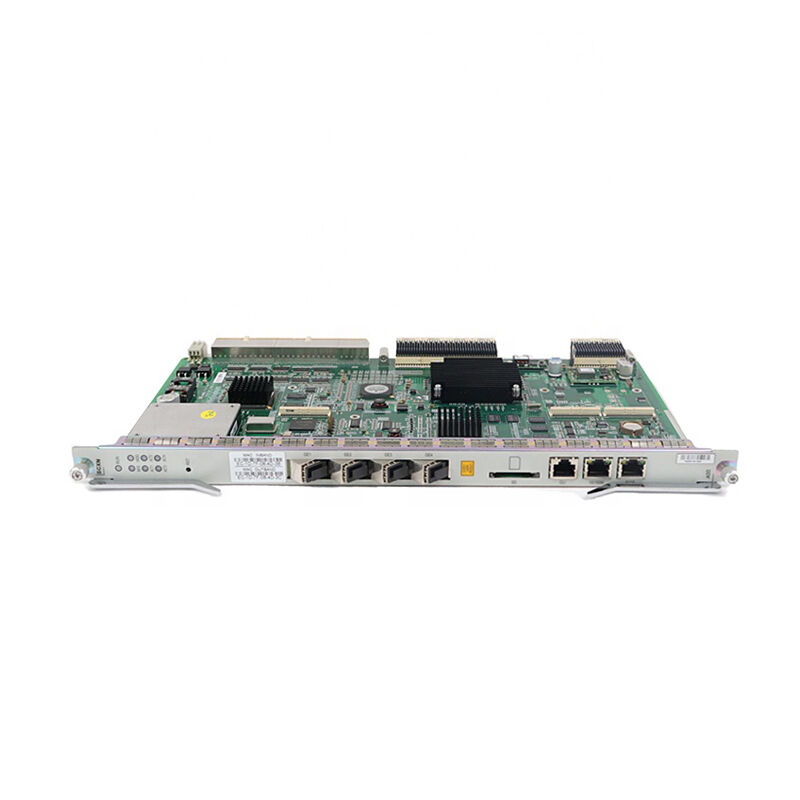

ZTE SCXN Control and Switch Card for C300 OLT

The ZTE ZXA10 SCXN control and switch card serves as the core component for ZXA10 C300 systems, providing comprehensive system monitoring, control functionality, and non-blocking switching capabilities for all line cards. This advanced card supports 16 port GPON cards and features 4x GE uplink interfaces plus 2x management interfaces.

Technical Specifications

Model	ZTE SCXN
GE1-GE4/XG1-XG4	GE/10GE optical interface, for uplink
SD	SD socket, for importing/exporting data
CLI	RS-232 port, for local debugging
10/100M	RJ45 interface, for out-of-band network management
DIAG	RJ45 interface, for mirroring service traffic
Dimensions	395.5 mm × 25 mm × 225 mm (Height × Width × Depth)

Performance Capabilities

SCXN: Supports 480 Gbps switching capacity, 64 K MAC address table, and VoIP function (with VoIP daughter-card)

Key Product Features

Switching Module: Serves as the central switching hub for data services, implementing data switching, Ethernet, VLAN, multicast, IP route, QoS, and security functions
Management and Control Module: Comprises control software, protocol processing software, overhead processing, Ethernet switching chip, and control CPU. Provides interfaces for forced card version downloads and hardware/software resets, implements online card detection, and manages fan detection and control functions
Clock/Time Module: Processes system clock and time in compliance with ITU-T G.8262, G.8264, G.781, and RFC 1305 standards

The ZTE ZXA10 C300 OLT platform represents the world's first future-proof, high-capacity optical access solution, engineered for mass optical access deployment with exceptional performance and economic efficiency.
