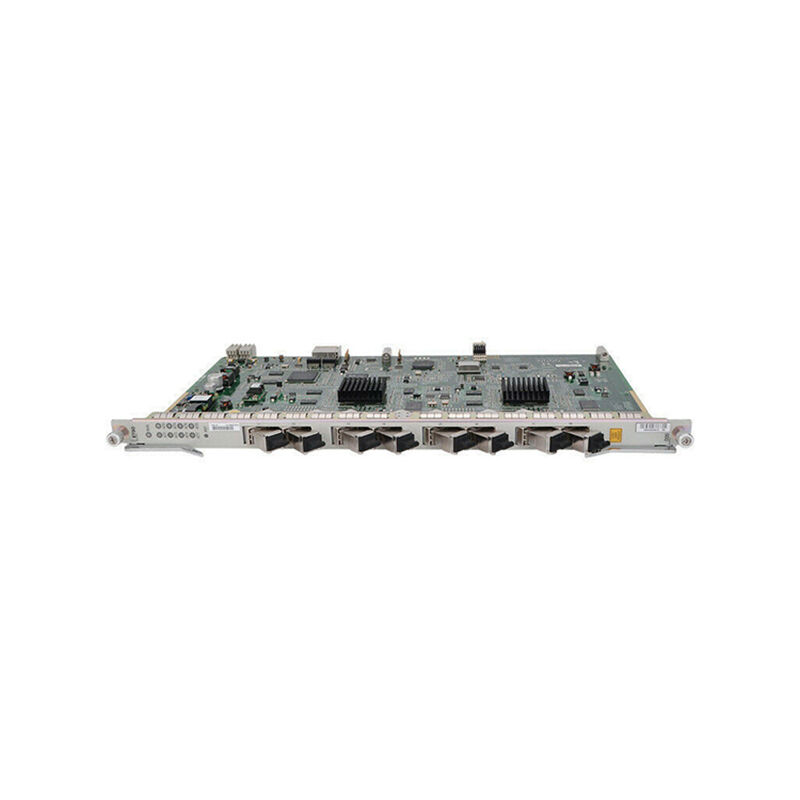

ZTE ETGO G K version EPON 8 Ports Board With 8 Modules For C300 C320 OLT
The ZTE ETGO service interface board is an 8-port C-connected board designed for ZTE ZXA10 C300 equipment to provide EPON service access. The ZTE ZXA10 C300 OLT is a high-capacity, high-density optical access platform that supports multiple access approaches and enables triple-play services with customized solutions for various network requirements. The ZTE ZXA10 C320 OLT is a compact, dense full-service xPON converged optical access platform for next-generation networks, supporting GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, along with HSI, VoIP, IPTV, CATV, mobile backhaul, WiFi, and other full-service access aggregation and management control with carrier-class QoS and security reliability.
Technical Specifications
| Brand |
ZTE |
| Model |
ETGO |
| GPON Port |
8-EPON Port |
| Operating Wavelength |
Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type |
PX 20 |
| Port Rate |
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Optical Connector Type |
SC/PC |
| Optical Fiber Type |
Single-mode |
| Reach |
20.00 km |
| Extinction Ratio |
8.2 dB |
| Weight |
1kg |
| Dimensions (W x D x H) |
22.86 mm x 237.00 mm x 395.40 mm |
ETGO Service Board Features
8 EPON SFP ports
Maximum 1:128 split ratio
PX20+ optical modules
Received signal strength indicator (RSSI) detection and controlled optical signal transmission
ONU-based shaping
Optical performance monitor (OPM)
Automatic power shutdown in case of high temperature
Compatible Service Boards
CICC Common Interface Card
CICG Common Interface Card
CICK Common Interface Card
CTBB 32 ports E1 balance interface card
CTEUA Type A 32 ports E1 un-balance interface card
CTLA 2 STM-1 ports CES interface card
CTTB 32 ports T1 interface card
CTUB 32 ports E1 unbalance interface card
ETGH 16-port EPON PON card
ETGO 8-port EPON OLT line card
ETTD 2-port 10G EPON symmetry PON card
ETTO Type D 8 ports EPON OLT line card
ETTQ 10G EPON PON card
ETTS 2-port 10G EPON PCM PON card
ETXD 2-port 10G EPON unsymmetric PON card
FTGH Type A 16 ports GE PTP Ethernet interface card
FTGHA Type A 16 ports GE PTP Ethernet interface card
FTGK 48-ports PTP Ethernet interface card
FUFQ 4FE Fiber Uplink Card
GDFO 8-ports ethernet uplink interface card
GDFOU 8-ports ethernet P2P Card
GTGH 16-port GPON PON card
GTGO 8-port GPON OLT line card
GTGQ 4-port GPON OLT line card
GTTO Type K 8-port XGPON OLT line card
GTXD XG-GPON OLT line card
GTXO 8 ports XGPON OLT line card
GTXQ XG-GPON OLT line card
GTXT Gpp ASIC test card
GUFQ 4GE Fiber Uplink Card
GUSQ 2GE Fiber & 2GE Electrical Uplink Card
GUTQ 4-port Electrical Uplink Card
HDTT 2-ports 10GE and 8-ports GE PTP Ethernet interface card
HUGQ 2-port GE and 2-port FE optical Ethernet interface card
HULQ 2-port 10GE and 2-port FE optical Ethernet interface card
HUTQ 2-port 10GE and 2-port GE optical Ethernet interface card
HUVQ 2-port 10GE and 2-port GE optical Ethernet interface card
HUWQ 2-port 10GE and 2-port GE optical Ethernet interface card supporting SyncE
WTBS 2-port 10G EPON WDM PON card
XDTD 2-port 10GE optical Ethernet interface card
XDTS 1-port 10GE optical Ethernet interface card
XUTQ 4-port 10GE optical Ethernet interface card
XUXQ 4-port 10GE optical Ethernet interface card
