Name: ETTO 8 Ports EPON 10gb Ethernet Card Nic For ZTE C320 C300 OLT Equipment
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: ETTO
Price: 116 USD
Availability: InStock

Home > Products > OLT ZTE >

ETTO 8 Ports EPON 10gb Ethernet Card Nic For ZTE C320 C300 OLT Equipment

ETTO 10gb ethernet card

EPON 10gb ethernet card

OLT ethernet nic

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

ETTO

Document:

zte-etto-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

ZTE ETTO 8 Ports 10G EPON Board With 8 10G EPON Modules For C320 C300 OLT Equipment

Condition:

In Stock

Interface:

GPON, EPON, 10G PON

Dimensions:

Varies By Model, E.g., 440mm X 440mm X 44mm

Management:

SNMP, CLI, Web GUI

Manufacturer:

ZTE Corporation

Uplink Interface:

10GE, 1GE, 2.5GE

Reliability:

High Availability With Redundancy And Protection

Model:

Various Models (e.g., ZXA10 C300, ZXA10 C320)

Type:

Optical Line Terminal

Compliance:

ITU-T G.984, IEEE 802.3ah

Max Ports:

Up To 128 PON Ports

Functions:

Service Aggregation, QoS, Multicast, Security

Power Supply:

AC/DC Redundant Power Supply

Operating Temperature:

-5°C To 55°C

Deployment:

FTTx Networks (FTTH, FTTB, FTTC)

Highlight:

ETTO 10gb ethernet card

EPON 10gb ethernet card

OLT ethernet nic

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$116

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

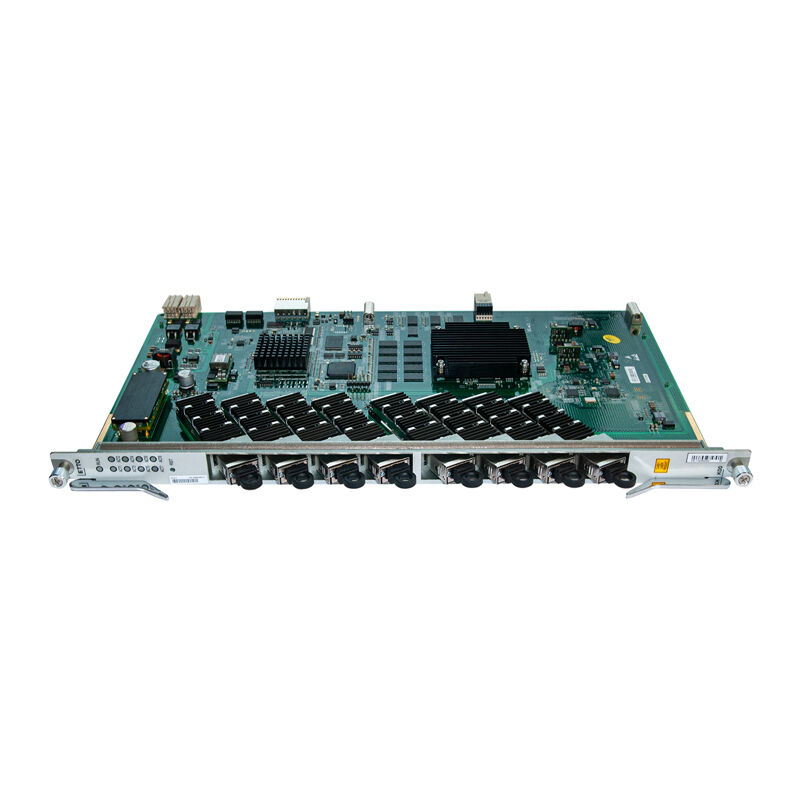

ZTE ETTO 8 Ports 10G EPON Board with 8 10G EPON Modules

The ZTE ETTO Service Board is an 8-port 10G EPON OLT interface board designed to work with ONU devices to enable EPON access services. Compatible with ZXA10 C320 and C300 OLT equipment, this compact solution offers high-density connectivity while conserving installation space.

Product Overview

ZXA10 C320 represents a new-generation compact OLT platform standing only 2U high, offering exceptional space efficiency. With industry-leading 16-port GPON/EPON and 48-channel P2P board capability, a single frame can provide 32 G/EPON ports and 96 channels P2P GE port. The platform supports GPON/EPON/P2P/10G EPON/XG-PON1 access technologies and future TWDM-PON compatibility, enabling unified voice, high-speed Internet, IPTV, traditional TDM, and mobile backhaul services.

Technical Specifications

Brand	ZTE
Specification	ETTO
Port Quantity	8
Maximum Split Ratio	1:128
Forwarding Rate	80Gbit/s
Rate Model	Symmetric Rate Model Asymmetric Rate Model
Maximum Number of LLID	256
Maximum Service Flows Supported	16368
Maximum Frame Length	2052 bytes
Maximum Number of MAC	16384
Maximum Differential Fiber Distance	40 km

Key Features

High density design supporting 1024 access users with energy-saving operation
Manual shutdown capability for idle PON ports to minimize power consumption
40 km maximum distance difference between ONUs and PON ports for simplified network planning
Intelligent management channel for optimized performance
Level 4 HQoS to enhance user experience
9216 Jumbo frame support for improved transmission efficiency
Easy operation and maintenance capabilities
Real-time rogue ONU detection and isolation for business stability
Variable Length OMCI for improved upgrade efficiency and reduced service interruption
1:128 eOTDR for accurate fault responsibility division and rapid fault location
8 x 10G EPON Ports (XFP Optical Module) with 1:128 maximum split ratio

Compatible Service Boards

GTGO	8 ports GPON board with 8 B+ modules
GTGO	8 ports GPON board with 8 C+ modules
GTGO	8 ports GPON board with 8 C++ modules
GTGH	16 ports GPON board with 16 B+ modules
GTGH	16 ports GPON board with 16 C+ modules
GTGH	16 ports GPON board with 16 C++ modules
GTTO	8 ports 10G GPON board with 8 10G GPON modules
GTXO	8 ports 10G GPON board with 8 10G GPON modules
ETGO	8 ports EPON board with 8 modules
ETGH	16 ports EPON board with 16 modules
