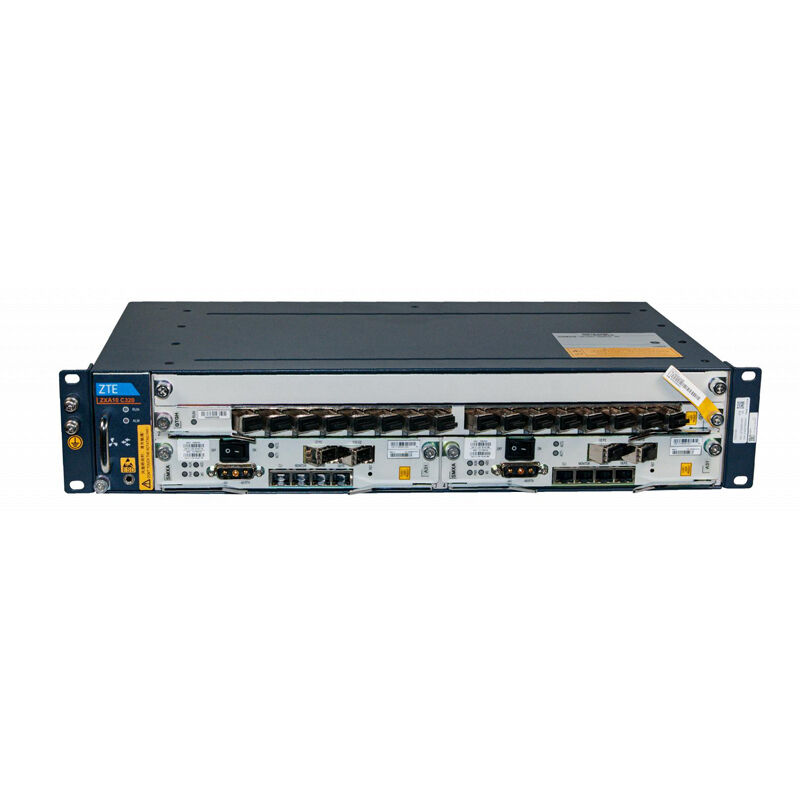

Name: Mini Compact OLT ZTE ZXA10 C320 8port 2U 48V DC SMXA-A31 10Gb
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: C320 10gig
Price: 1124 USD
Availability: InStock

Home > Products > OLT ZTE >

Mini Compact OLT ZTE ZXA10 C320 8port 2U 48V DC SMXA-A31 10Gb

Compact OLT ZTE

48V OLT ZTE

SMXA-A31 zte c320 olt

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

C320 10gig

Chat Now

Request A Quote

Product Details

Condition:

In Stock

Management:

SNMP, CLI, Web GUI

Product Type:

Optical Line Terminal

Power Supply:

AC/DC Redundant Power Supply

Application:

FTTx Networks, Broadband Access

Max Ports:

Up To 128 PON Ports

Uplink Interface:

10G/1G Ethernet Ports

Manufacturer:

ZTE Corporation

Fiber Type:

Single Mode Fiber

Model:

Various Models (e.g., ZXA10 C300, ZXA10 C320)

Interface Type:

GPON, EPON

Compliance:

ITU-T G.984, IEEE 802.3ah

Security Features:

Encryption, Authentication, ACL

Dimensions:

Varies By Model, E.g., 440mm X 440mm X 44mm

Operating Temperature:

-5°C To 55°C

Highlight:

Compact OLT ZTE

48V OLT ZTE

SMXA-A31 zte c320 olt

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$1124

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

ZTE 10Gig OLT 8 Port C320 Smart Mini OLT

Condition: Original In New Box

ZTE ZXA10 C320 is a compact, full-service optical access convergent platform that provides carrier-class QoS and reliable network performance to meet the requirements for small-scale FTTx service implementations.

Product Overview

The ZTE ZXA10 C320 OLT is a dense, compact full-service xPON converged optical access platform designed for next-generation optical access networks. It supports GPON, EPON, P2P, 10GEPON, and XG-PON1 common platform access, enabling comprehensive service aggregation and management control for HSI, VoIP, IPTV, CATV, mobile backhaul, WiFi, and other full-service applications.

Key Features & Benefits

Compact 2U height design saves installation space
High line card density with industry-leading 16-port GPON/EPON capability
Single-frame capacity: 32 G/EPON ports and 96 channels P2P GE port
Multi-technology support: GPON, EPON, P2P, 10G EPON, XG-PON1 on same platform
Future-ready: Supports TWDM-PON technology evolution
Unified service bearer for voice, high-speed Internet, IPTV, TDM, and mobile backhaul
Compatible with ZXA10 C300 service boards for cost savings

Technical Specifications

Specification	Details
Brand	ZTE
Model	ZXA10 C320
Backplane Capacity	420 Gbit/s
Switching Capacity	84 Gbit/s
Service Card Slots	2 (GPON/P2P/XG-PON1)
Control Cards	2
Power Supply Cards	1
Uplink Cards	1 (10GE/GE/FE/E1/T1)
Maximum GPON Subscribers	4096
Management Interfaces	CLI, SSH, SNMP, telnet
Power Requirements	-48 V (DC), 230V (AC)
Operating Temperature/Humidity	-25°C to +55°C, 5% to 95%
Split Ratio	Up to 1:128
Range	20-60 km
Maximum Attenuation	SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation	NSR-DBA, SR-DBA
Supported Features	FEC, AES128, SCB, OLS
Dimensions	86.1 mm (H) × 482.6 mm (W) × 270 mm (D)
Power Supply Options	Dual DC: 48V/60V AC: 100V~240V
Cabinet Compatibility	Indoor: 2200mm × 600mm × 300mm standard cabinet Outdoor: EC90EB, EC70E

Card Configuration Details

Main-Control Switching Card SMXA:
Panel interfaces: 1×10GE/GE(optical) + 1×GE/FE(Optical) + 1×GE/FE(electrical) + 1×serial port + 1×management FE + 1×environment detecting port
Ethernet uplink port: MAX. 2×10GE + 4×GE or 6×GE

Service Card (2 slots):
GTGO (8×GPON) / GTGH (16×GPON) / FTGK (48×P2P) / GTXO (8×XG-PON1)
