Name: 420Gbit Epon OLT ZTE Zxa10 C320 SMX-A Board Chasis With ETGO EPON
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: C320
Price: 735 USD
Availability: InStock

Home > Products > OLT ZTE >

420Gbit Epon OLT ZTE Zxa10 C320 SMX-A Board Chasis With ETGO EPON

420Gbit zte zxa10 c320

ETGO zte zxa10 c320

EPON olt zxa10 c320

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

C320

Document:

zte-zxa10 c320-datasheet.pdf

Chat Now

Request A Quote

Product Details

Condition:

In Stock

Security Features:

Encryption, Authentication, Access Control

Management Protocols:

SNMP, CLI, Web GUI

Power Supply:

AC/DC Redundant Power Supply

Uplink Interfaces:

10G Ethernet, 1G Ethernet, 40G Ethernet (depending On Model)

Supported Standards:

ITU-T G.984, IEEE 802.3ah, IEEE 802.3av

Maximum Ports:

Up To 128 PON Ports

Warranty:

Typically 1-3 Years Depending On Vendor

Fiber Type:

Single-mode Fiber

Model:

Various Models (e.g., ZXA10 C300, ZXA10 C320)

Applications:

FTTx, Broadband Access, IPTV, VoIP

Manufacturer:

ZTE Corporation

Product Type:

Optical Line Terminal

Operating Temperature:

-5°C To 55°C

Interface Types:

GPON, EPON, XG-PON, 10G-EPON

Dimensions:

Varies By Model (e.g., 440mm X 440mm X 44mm)

Highlight:

420Gbit zte zxa10 c320

ETGO zte zxa10 c320

EPON olt zxa10 c320

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$735

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

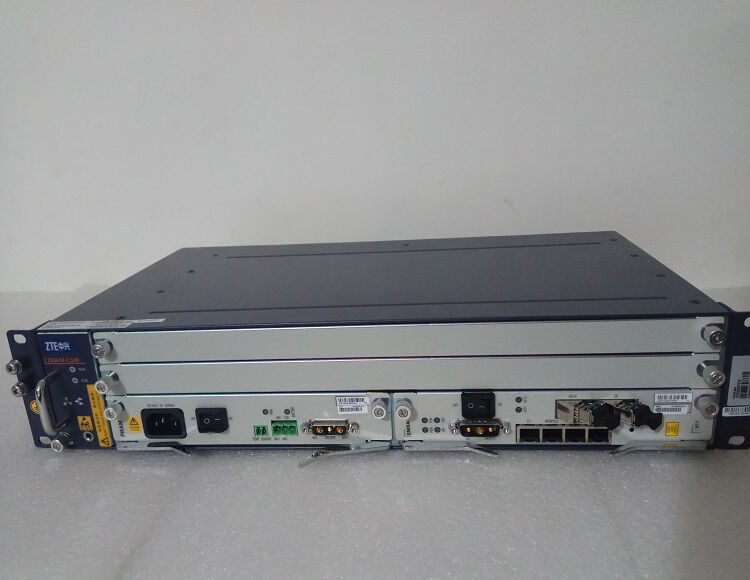

420Gbit EPON OLT ZTE ZXA10 C320 SMX-A Board Chassis with ETGO EPON

Condition: Original In New Box

ZTE ZXA10 C320 SMXA chassis with 1 pc ETGO 8 ports EPON card is a compact, full-service optical access convergent platform that provides carrier-class QoS and reliable network performance to meet FTTx service deployment requirements for small-scale implementations.

ZXA10 C320 OLT Product Overview

ZTE ZXA10 C320 OLT is a compact, dense full-service xPON converged optical access platform designed for next-generation optical access networks. This versatile platform supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access and enables comprehensive service aggregation and management control for HSI, VoIP, IPTV, CATV, mobile backhaul, WiFi, and other full-service applications.

Key Features

Compact 2U height design for space-efficient installation
High line card density with industry-leading 16-port GPON/EPON and 48-channel P2P board capability
Single-frame capacity: 32 G/EPON ports and 96 channels P2P GE port
Unified bearer for voice, high-speed Internet, IPTV, traditional TDM, and mobile backhaul services
Advanced hardware and software architecture supporting future technology evolution
Compatible with ZXA10 C300 service boards for cost-effective upgrades

Technical Specifications

Brand	ZTE
Model	ZXA10 C320
Backplane Capacity	420 Gbit/s
Switching Capacity	84 Gbit/s
Service Cards	2 (GPON/P2P/XG-PON1)
Control Cards	2
Power Supply Cards	1
Uplink Cards	1 (10GE/GE/FE/E1/T1)
Maximum GPON Subscribers	4096
Management Interfaces	CLI, SSH, SNMP, telnet
Power	-48 V (DC), 230V (AC)
Operating Temperature/Humidity	-25°C - +55°C, 5% - 95%
Split Ratio	up to 1:128
Range	20-60 km
Maximum Attenuation	SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation	NSR-DBA, SR-DBA
Support	FEC, AES128, SCB, OLS
Dimensions	86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)
Power Supply Options	Dual DC: 48V/60V AC: 100V~240V
Cabinet Compatibility	Indoor: 2200mm x 600mm x 300mm standard cabinet Outdoor: EC90EB, EC70E

Main-Control Switching Card SMXA

Panel interfaces: 1*10GE/GE(optical) + 1*GE/FE(Optical) + 1*GE/FE(electrical) + 1*serial port + 1*management FE + 1*environment detecting port. Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE.

Service Card Configuration

Service Card (2 slots): ETGO (8*EPON)
