Name: C600 ZTE EFTH 10gb Ethernet NIC 16 Port EPON With PR30 Symmetric Module
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: EFTH
Price: 795 USD
Availability: InStock

Home > Products > OLT ZTE >

C600 ZTE EFTH 10gb Ethernet NIC 16 Port EPON With PR30 Symmetric Module

C600 ZTE 10gb ethernet nic

ZTE EFTH 10gb ethernet nic

C600 ZTE EFTH

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

EFTH

Document:

huawei-efth-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

ZTE EFTL Service Board 16 Port 10GE EPON Service Board With 16 Symmetric PR30 Modules Applied For C600 Series OLT

Condition:

In Stock

Type:

Optical Line Terminal

Weight:

6.5 Kg

Standard:

GPON, EPON

Uplink Interface:

10G Ethernet

Power Supply:

AC/DC Redundant Power

Application:

FTTx, Broadband Access

Management:

SNMP, CLI, Web GUI

Dimensions:

440mm X 440mm X 44mm

Max Ports:

16 PON Ports

Downlink Interface:

GPON/EPON Ports

Functions:

Bandwidth Control, QoS, Multicast

Model:

ZXA10 C300

Compliance:

ITU-T G.984, IEEE 802.3ah

Operating Temperature:

-5°C To 55°C

Highlight:

C600 ZTE 10gb ethernet nic

ZTE EFTH 10gb ethernet nic

C600 ZTE EFTH

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$795

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

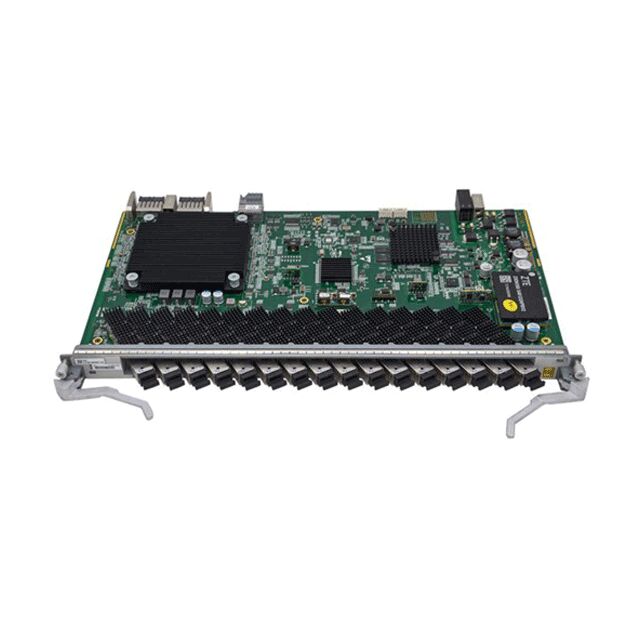

C600 ZTE EFTH 10gb Ethernet NIC 16 Port EPON With PR30 Symmetric Module

ZTE EFTL 16 Port 10GE EPON service board with 16 symmetric PR30 modules applied for C600 series OLT

Quick Specification

Board	EFTL
EPON Port	16-port 10G EPON
Type	PR30 Module: Single Fiber Bidirectional Optical Module, Class PR30 Symmetric
Operating Wavelength	Tx: 1577nm, 1490nm; Rx: 1270nm, 1310nm
Encapsulation Type	SFP
Port Rate	Tx: 10.3125Gbit/s; 10.3125Gbit/s; Rx: 1.25Gbit/s, 1.25Gbit/s
Minimum Output Optical Power	10G: 2dBm; GE: 3dBm
Maximum Output Optical Power	10G: 5dBm; GE: 7dBm
Maximum Receiver Sensitivity	10G: -28dBm; GE: -29.78dBm
Optical Connector Type	SC
Optical Fiber Type	Single-mode
Reach	20.00 km
Overload Optical Power	10G: -6dBm; GE: -9dBm
Extinction Ratio	10G: 6dB; GE: 9dB
Weight	1.74kg
Dimensions (H x W x D)	393.1 mm × 23.9 mm × 214 mm

EFTL Service Board Product Features

High Density, energy saving, low power consumption, supports 1024 access users
Manual shutdown of idle PON port to avoid power waste
Supports maximum distance difference between two ONUs and PON ports under same PON port: 40 km, simplifying network planning
Intelligent Management Channel
Level 4 HQoS to improve user experience
9216 Jumbo frame support, greatly improving transmission efficiency
Easy to operate and maintain
Real-time hooligans ONU detection and isolation to ensure stable operation of business
Variable Length OMCI to improve upgrade efficiency and shorten business interruption time
1:128 eOTDR, accurate fault responsibility division and fast fault location
Maximum spectral ratio: 1:128
