C320 OLT ZTE ETGO EPON 1gb Ethernet Card With PX20+ Optical Modules

C320 OLT ZTE ETGO EPON 1gb Ethernet Card With PX20+ Optical Modules

ETGO OLT ZTE

C320 OLT ZTE

ETGO 1gb ethernet card

Place of Origin:

China

Brand Name:

ZTE

Certification:

CE

Model Number:

ETGO

Document:

zte-etgo-datasheet.pdf

Chat Now
Request A Quote
C320 OLT ZTE ETGO EPON 1gb Ethernet Card With PX20+ Optical Modules
Product Details
Detail:
ZTE ETGO EPON 8 Ports Board With 8 Modules For C300 C320 OLT
Condition:
In Stock
Humidity:
5% To 95% Non-condensing
Management:
SNMP, CLI, Web GUI
Power Supply:
AC/DC Redundant Power Supply
Compliance:
ITU-T G.984, IEEE 802.3ah
Security:
Encryption, Authentication, ACL
Interface Type:
GPON, EPON
Max Ports:
Up To 128 PON Ports
Model:
Various Models (e.g., ZXA10 C300, ZXA10 C320)
Operating Temperature:
-5°C To 45°C
Uplink Interface:
10G/1G Ethernet Ports
Product Type:
Optical Line Terminal
Manufacturer:
ZTE Corporation
Dimensions:
Standard 19-inch Rack Mount
Functions:
Data, Voice, Video Transmission
Highlight:

ETGO OLT ZTE

,

C320 OLT ZTE

,

ETGO 1gb ethernet card

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
$495
Packaging Details
Box
Delivery Time
3-5 working days
Payment Terms
T/T,Western Union,MoneyGram
Supply Ability
100 pcs
RELATED PRODUCTS
Good price ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT online

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now
Good price ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620 online

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now
Good price 10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM online

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now
Good price GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module online

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now
CONTACT US
86-180-5715-6223
info@hi-network.com
Chat Now
Product Description

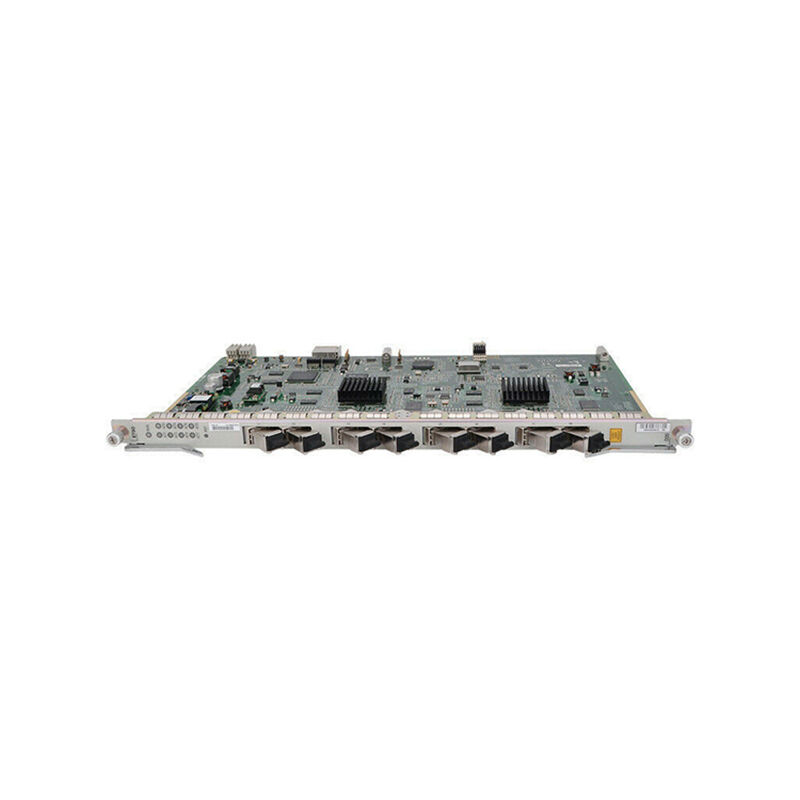

ZTE ETGO EPON 8 Ports Board With 8 Modules For C300 C320 OLT
The ZTE ETGO service interface board is an 8-port C-connected board designed for ZTE ZXA10 C300 equipment to provide EPON service access. The ZTE ZXA10 C300 OLT is a high-capacity, high-density optical access platform that supports multiple access approaches and enables triple-play services with customized solutions for various network demands. The ZTE ZXA10 C320 OLT is a compact, dense full-service xPON converged optical access platform for next-generation networks, supporting GPON/EPON/P2P/10GEPON/XG-PON1 common platform access. It facilitates HSI, VoIP, IPTV, CATV, mobile backhaul, WiFi, and other full-service access aggregation with carrier-class QoS and security reliability.
Technical Specifications
Brand ZTE
Model ETGO
GPON Port 8-EPON Port
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type PX 20
Port Rate Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Extinction Ratio 8.2 dB
Weight 1kg
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
ETGO Service Board Features
  • 8 EPON SFP ports for high-density connectivity
  • Maximum 1:128 split ratio for extensive network coverage
  • PX20+ optical modules for enhanced performance
  • Received signal strength indicator (RSSI) detection and controlled optical signal transmission
  • ONU-based shaping for optimized traffic management
  • Optical performance monitor (OPM) for network diagnostics
  • Automatic power shutdown in high-temperature conditions for safety
Compatible Service Boards
CICC CICG CICK CTBB CTEUA CTLA CTTB CTUB ETGH ETGO ETTD ETTO ETTQ ETTS ETXD FTGH FTGHA FTGK FUFQ GDFO GDFOU GTGH GTGO GTGQ GTTO GTXD GTXO GTXQ GTXT GUFQ GUSQ GUTQ HDTT HUGQ HULQ HUTQ HUVQ HUWQ WTBS XDTD XDTS XUTQ XUXQ
