Name: 8port ZTE ETTO Network Interface Board Chip 10G EPON Board
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: ETTO
Price: 492 USD
Availability: InStock

Home > Products > OLT ZTE >

8port ZTE ETTO Network Interface Board Chip 10G EPON Board

ZTE ETTO network interface board

10G network interface board

ZTE ETTO network interface chip

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

ETTO

Document:

zte-etto-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

ZTE ETTO 8 Ports 10G EPON Board With 8 10G EPON Modules For C320 C300 OLT Equipment

Condition:

In Stock

Management Protocol:

SNMP, CLI, Web-based GUI

Power Supply:

AC/DC Redundant Power Supply

Weight:

Varies By Model, Approx. 7-10 Kg

Operating Temperature:

-5°C To 55°C

Uplink Interface:

10G/1G Ethernet

Applications:

FTTx, Broadband Access, Triple-play Services

Dimensions:

Depends On Model, E.g., 440mm X 440mm X 44mm

Product Type:

Optical Line Terminal

Interface Type:

GPON, EPON

Security Features:

Encryption, Authentication, ACL

Max Ports:

Up To 128 PON Ports

Compliance Standards:

ITU-T G.984, IEEE 802.3ah

Manufacturer:

ZTE Corporation

Model:

Various Models (e.g., ZXA10 C300, ZXA10 C320)

Highlight:

ZTE ETTO network interface board

10G network interface board

ZTE ETTO network interface chip

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$492

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

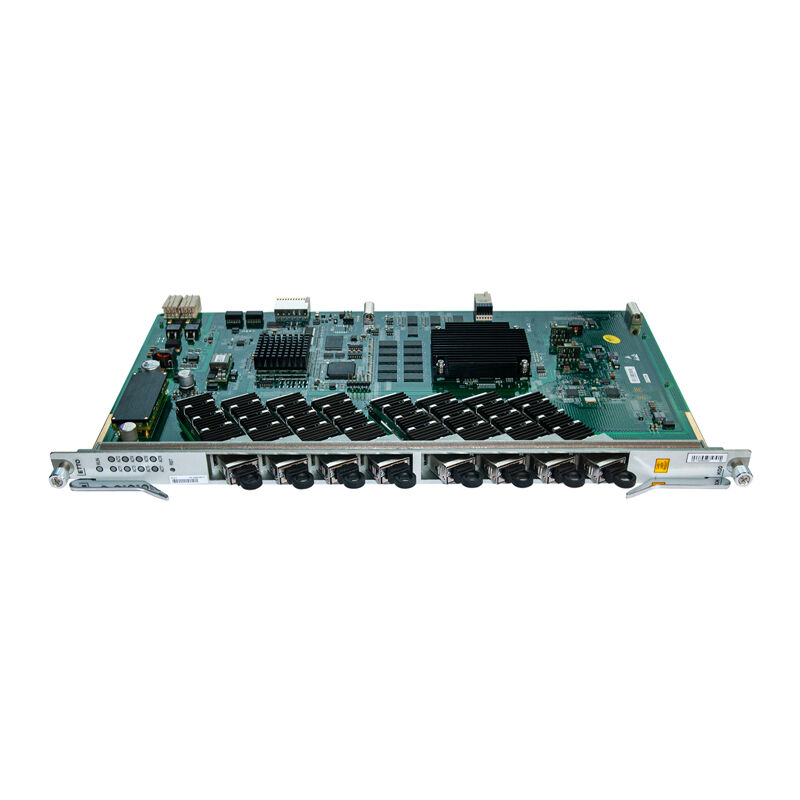

ZTE ETTO 8-Port 10G EPON Network Interface Board

The ZTE ETTO Service Board is an 8-port 10G EPON OLT interface board designed to work with ONU equipment for EPON access services. Compatible with ZXA10 C320 and C300 OLT platforms, this compact 2U high solution saves installation space while delivering industry-leading port density and performance.

Technical Specifications

Brand	ZTE
Specification	ETTO
Port Quantity	8
Maximum Split Ratio	1:128
Forwarding Rate	80Gbit/s
Rate Model	Symmetric Rate Model Asymmetric Rate Model
Maximum Number of LLID	256
Maximum Service Flows Supported	16,368
Maximum Frame Length	2052 bytes
Maximum Number of MAC	16,384
Maximum Differential Fiber Distance	40 km

Key Features

High density design supporting 1024 access users with energy-saving low power consumption
Manual shutdown of idle PON ports to minimize power waste
40 km maximum distance difference between ONUs and PON ports for simplified network planning
Intelligent management channel for enhanced control
Level 4 HQoS to improve user experience
9216 Jumbo frame support for increased transmission efficiency
Easy operation and maintenance capabilities
Real-time rogue ONU detection and isolation for business stability
Variable Length OMCI for improved upgrade efficiency and reduced business interruption
1:128 eOTDR for accurate fault responsibility division and fast fault location
8 x 10G EPON ports (XFP Optical Module) with 1:128 maximum split ratio

Compatible Service Boards

GTGO	8 ports GPON board with 8 B+ modules
GTGO	8 ports GPON board with 8 C+ modules
GTGO	8 ports GPON board with 8 C++ modules
GTGH	16 ports GPON board with 16 B+ modules
GTGH	16 ports GPON board with 16 C+ modules
GTGH	16 ports GPON board with 16 C++ modules
GTTO	8 ports 10G GPON board with 8 10G GPON modules
GTXO	8 ports 10G GPON board with 8 10G GPON modules
ETGO	8 ports EPON board with 8 modules
ETGH	16 ports EPON board with 16 modules
