Name: ZTE C320 OLT 8-port 48V DC 2U compact 10GE GPON OLT with 10Gb uplink and dual power supply
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: C320 DC
Price: 995 USD
Availability: InStock

Home > Products > OLT ZTE >

ZTE C320 OLT 8-port 48V DC 2U compact 10GE GPON OLT with 10Gb uplink and dual power supply

8-port ZTE C320 OLT

48V DC ZXA10 C320 OLT

2U compact 10GE GPON OLT

Place of Origin:

China

Brand Name:

ZTE

Certification:

Model Number:

C320 DC

Chat Now

Request A Quote

Product Details

Detail:

ZTE ZXA10 Mini C320 10GE GPON OLT

Condition:

In Stock

Highlight:

8-port ZTE C320 OLT

48V DC ZXA10 C320 OLT

2U compact 10GE GPON OLT

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$995

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

ZTE GTBO Service Board 8-Port XG-PON1 Subscriber Card with Single-mode Fiber for ZXA10 C300/C320 OLT

Chat Now

ZTE GFXL Service Board 16-port XG-PON Line card with Single-mode Fiber for ZTE C620

Chat Now

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM

Chat Now

GBIC FTTH OLT ZTE 10GE GPON OLT SMXA3/5 A31 A51 Uplink device PON GTGH Board C++ SFP Module

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

ZTE 10Gig OLT 8 Port C320 Smart Mini OLT 48V SMXA-A31 10Gb ZXA10 Board Chassis

Condition: Original In New Box

ZTE ZXA10 C320 is a small size, full-service optical access convergent platform that provides carrier-class QoS and reliable network performance to meet the requirements for small-scale implementation of FTTx services.

Product Overview

ZTE ZXA10 C320 OLT is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks. It supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access and enables HSI, VoIP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control.

Key Features

Compact 2U height design saves installation space
High line card density with industry-leading 16-port GPON/EPON capability
Single-frame supports 32 G/EPON ports and 96 channels P2P GE port
Future-ready platform supporting TWDM-PON technology evolution
Unified bearer for voice, high-speed Internet, IPTV, TDM and mobile backhaul services
Compatible with ZXA10 C300 service boards for cost savings

Technical Specifications

Specification	Details
Brand	ZTE
Model	ZXA10 C320
Backplane Capacity	420 Gbit/s
Switching Capacity	84 Gbit/s
Service Cards	2 (GPON/P2P/XG-PON1)
Control Cards	2
Power Supply Cards	1
Uplink Cards	1 (10GE/GE/FE/E1/T1)
Maximum GPON Subscribers	4096
Management Interfaces	CLI, SSH, SNMP, telnet
Power Requirements	-48 V (DC), 230V (AC)
Operating Temperature/Humidity	-25°C - +55°C, 5% - 95%
Split Ratio	Up to 1:128
Range	20-60 km
Maximum Attenuation	SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation	NSR-DBA, SR-DBA
Supported Features	FEC, AES128, SCB, OLS
Dimensions	86.1 mm (H) x 482.6 mm (W) x 270 mm (D)
Power Supply Options	Dual DC: 48V/60V AC: 100V~240V
Cabinet Compatibility	Indoor: 2200mm x 600mm x 300mm standard cabinet Outdoor: EC90EB, EC70E

Card Specifications

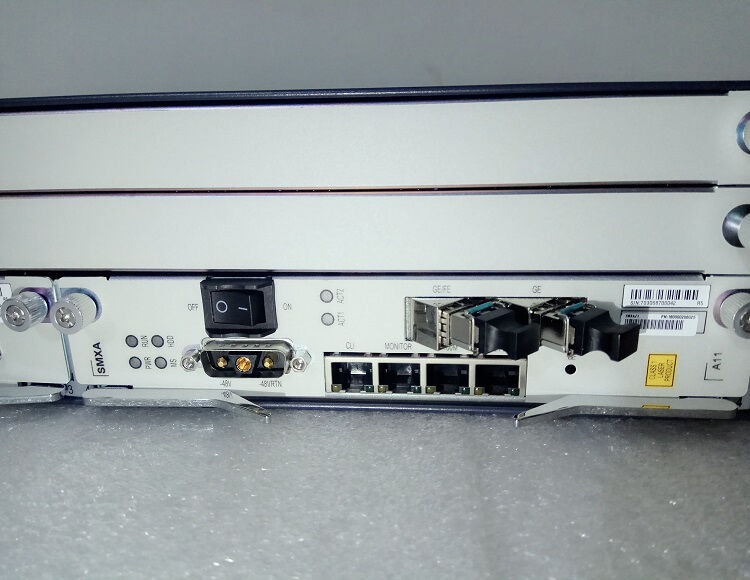

Main-Control Switching Card SMXA: Panel interfaces include 1*10GE/GE(optical)+1*GE/FE(Optical)+1*GE/FE(electrical)+1*serial port+1*management FE+1*environment detecting port. Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE.

Service Card (2 slots): GTGO(8*GPON) / GTGH(16*GPON) / FTGK(48*P2P) / GTXO(8*XG-PON1)
