Place of Origin:
China
Brand Name:
Huawei
Certification:
CE
Model Number:
OMXD30000 02313URC
Document:
| Specification | Details |
|---|---|
| Model | OMXD30000 |
| Part Number | 02313URC 02318169 |

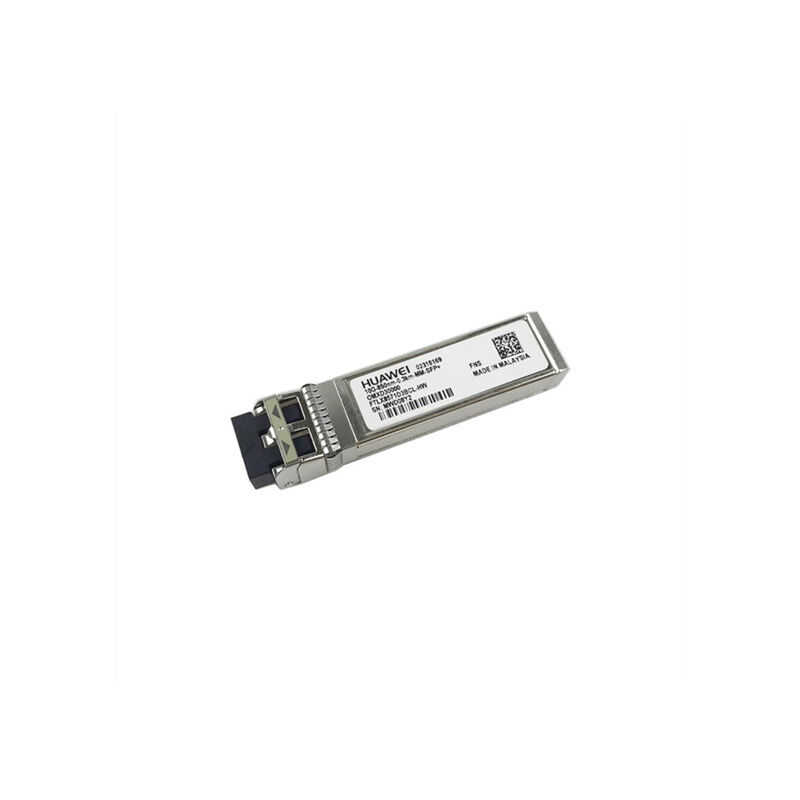

| Description | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| Level-1 Category | 10GE SFP+ Optical Modules |
| Form Factor | SFP+ |
| Application Standard | 10GBASE-SR |
| Connector Type | LC |
| Optical Fiber Type | MMF |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Transmission Rate | 10 Gbit/s |
| Center Wavelength | 850 nm |
| Maximum Tx Optical Power | -1.0 dBm |
| Minimum Tx Optical Power | -7.3 dBm |
| Minimum Extinction Ratio | 3.0 dB |
| Rx Sensitivity | -11.1 dBm |
| Overload Power | -1.0 dBm |
| Specification | OMXD10000 | OMXD30000 |
|---|---|---|
| Transceiver Form Factor | SFP+ | SFP+ |
| Transmission Speed | 10 Gbit/s | 10 Gbit/s |
| Center Wavelength | 1310 nm | 1310 nm |
| Standard Compliance | 10Gbase-LR | 10GBASE-iLR |
| Connector Type | LC | LC |
| Applicable Cable & Max Distance | Single-mode fiber: 10 km | Single-mode fiber: 1.4 km |
| Transmit Power | -8.2 to +0.5 dBm | -8.2 to +0.5 dBm |
| Maximum Receiver Sensitivity | -12.6 dBm | -14.4 dBm |
| Overload Power | 0.5 dBm | 0.5 dBm |
| Extinction Ratio | 3.5 dB | 3.5 dB |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | -40°C to +85°C (-40°F to +185°F) |
