Place of Origin:
China
Brand Name:
Huawei
Certification:
CE
Model Number:
02311KNR/SFP-25G-SR

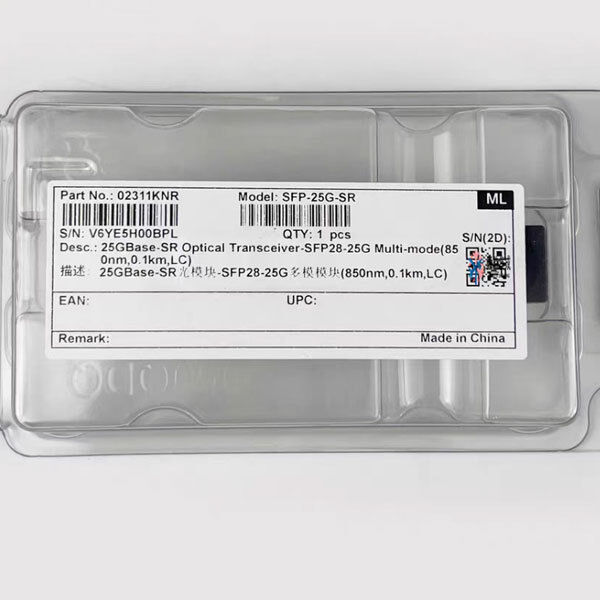

| Part Number | 02311KNR SFP-25G-SR |
| Vendor Name | Huawei |
| Form Factor | SFP28 |
| Max Data Rate | Dual Rate 10Gbps and 25.78Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 100m@OM4/70m@OM3 at 25G 100m@OM3 at 10G |
| Connector | Duplex LC |
| Media | MMF (Multimode Fiber) |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -6.4~2.4dBm |
| Minimum Receiver Power | ＜-6dBm |
| Power Budget | -0.4dB |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | 2dB |
| CDR | TX & RX Built-in CDR |
| Inbuilt FEC | No |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFP28 MSA, SFF-8432, SFF-8472, CPRI, eCPRI, IEEE 802.3by |
| Core Size | 50/125 µm |
| Packaging Technology | COB Packaging |
| DDM/DOM | Supported |
| Warranty | 3 Years |
