Brand Name:
Huawei
Model Number:
S6720S-26Q-LI-24S-AC
Document:
| Model | S6720S-26Q-LI-24S-AC |
|---|---|
| Part Number | 98010685 |
| Memory | 1 GB |
| Flash Memory | 512 MB total (view available size using display version command) |
| PoE Support | Not supported |
| Weight with Packaging | 4.2 kg (9.26 lb) |
| Dimensions (H x W x D) |
Basic: 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.) Maximum: 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.) |

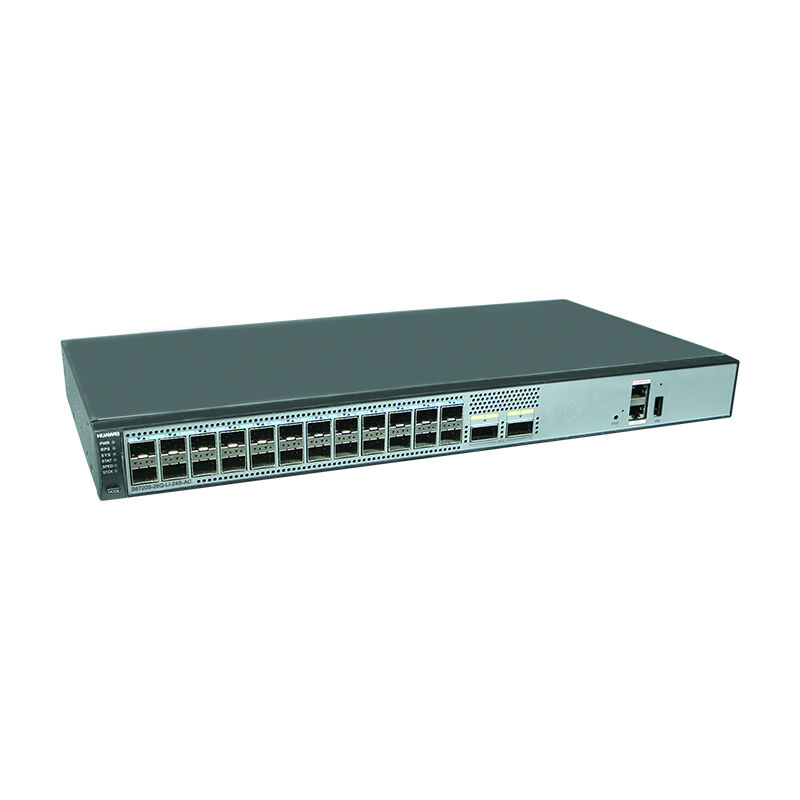

| Port/Component | Description |
|---|---|
| ① | Twenty-four 10GE SFP+ ports |
| ② | Two 40GE QSFP+ ports |
| ③ | One PNP button |
| ④ | One ETH management port |
| ⑤ | One console port |
| ⑥ | One USB port |

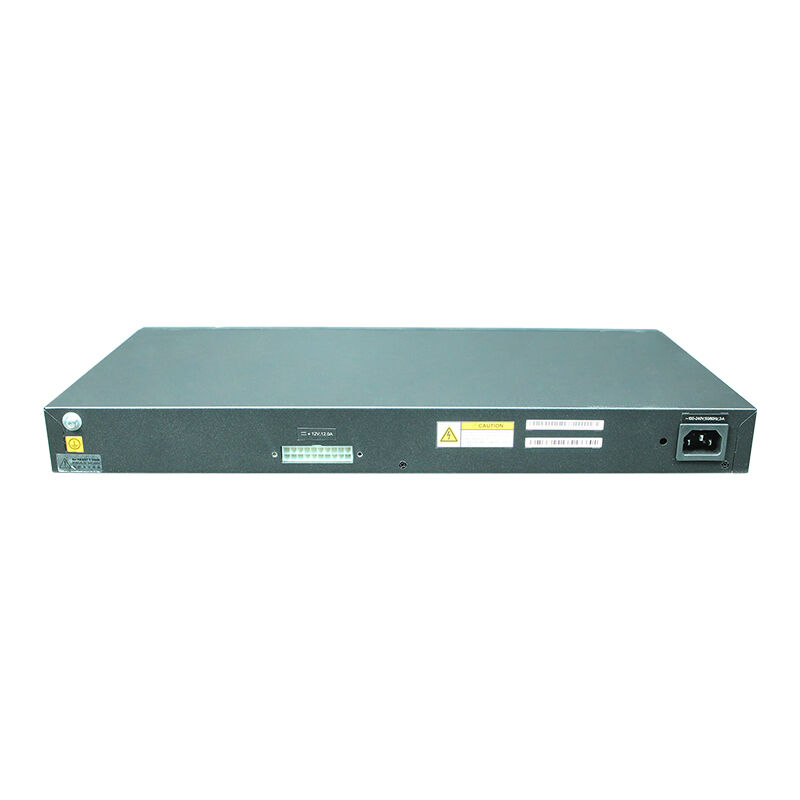

| ⑦ | Ground screw |
| ⑧ | RPS socket |
| ⑨ | Jack for AC power cable locking strap |
| ⑩ | AC socket |
| Model | Description |
|---|---|
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm(Tx)/1490nm(Rx), 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx), 80km, LC) |
| SFP-GE-BXU1-SC | 1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| CWDM-SFPGE-1471 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC) |
| CWDM-SFPGE-1491 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC) |
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1560.61nm, 120km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 1.4km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| OSX040N01 | Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-ER-1310 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 40km, LC) |
| SFP-10G-ZR | 10GBase-ZR Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 80km, LC) |
| SFP-10G-BXU1 | 10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC) |
| Specification | S6720-26Q-LI-24S-AC | S6720S-26Q-LI-24S-AC |
|---|---|---|
| Fixed Ports | 24x10GE port, 2x40GE port | 24x10GE port, 2x40GE port |
| Dimensions (W x D x H, mm) | 420 x 220 x 43.6 | 420 x 220 x 43.6 |
| Chassis Height (U) | 1U | 1U |
| CPU Frequency | 1 GHz | 1 GHz |
| CPU Cores | 2 | 2 |
| Memory (RAM) | 1 GB | 1 GB |
| Rated Voltage Range | AC: 100 V AC to 240 V AC, 50/60 Hz | AC: 100 V AC to 240 V AC, 50/60 Hz |
| Maximum Voltage Range | AC: 90 V AC to 264 V AC; 47-63 Hz | AC: 90 V AC to 264 V AC; 47-63 Hz |
| Maximum Input Current | 3 A | 3 A |
| Minimum Power Consumption | 100.2 W | 100.2 W |
