Brand Name:
Huawei
Model Number:
S6720S-26Q-EI-24S-AC
Document:
| Model | S6720S-26Q-EI-24S-AC |
|---|---|
| Part Number | 02350MTR |
| Memory | 2 GB |
| Flash Memory | 512 MB total To view available flash memory size, run the display version command. |
| PoE Support | Not supported |
| Weight with Packaging | 5.4 kg (11.91 lb) |
| Dimensions (H x W x D) |
Basic dimensions: 44.4 mm x 442.0 mm x 222.3 mm (1.75 in. x 17.4 in. x 8.75 in.) Maximum dimensions: 44.4 mm x 442.0 mm x 250.0 mm (1.75 in. x 17.4 in. x 9.84 in.) |

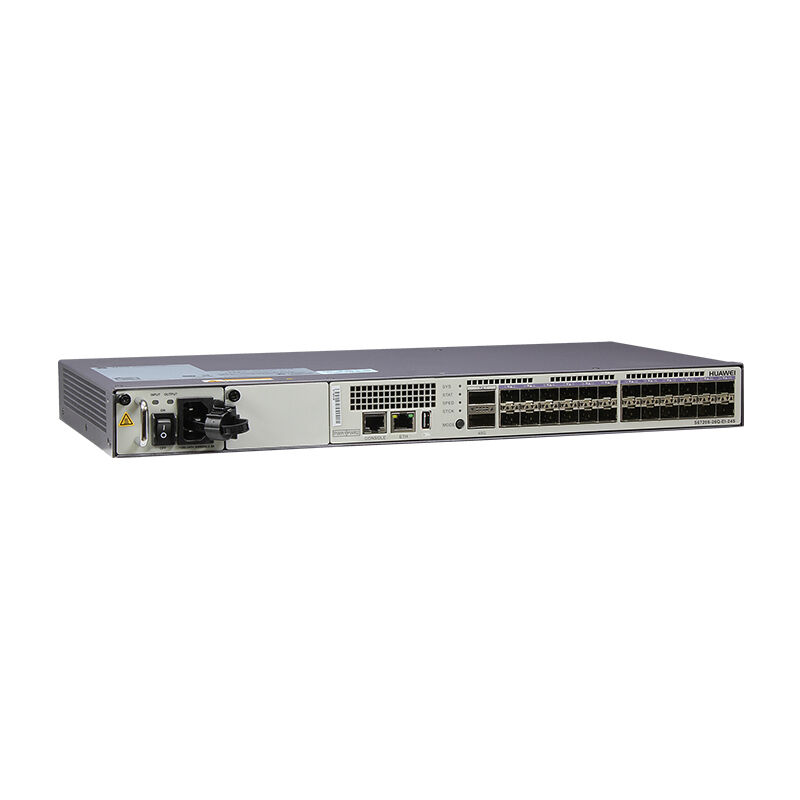

| ① | Power module slot 1 |
|---|---|
| ② | Power module slot 2 |
| ③ | Console port |
| ④ | ETH management port |
| ⑤ | USB port |
| ⑥ | Two 40GE QSFP+ ports |
| ⑦ | Twenty-four 10GE SFP+ ports |
| ⑧ | Ground screw |
| ⑨ | Monitoring port |
