Brand Name:
Huawei
Model Number:
S5732-H48UM2CC
Document:
| Model | S5732-H48UM2CC |
| Part Number | 02353HUB, 02353HUB-002, 02353SJT, 02353SJT-001, 02353SJT-003, 02353SJT-004, 02353SJT-010, 02353SJT-011, 02353SJT-013, 02353SJT-014, 02353SJT-020, 02353SJT-021, 02353SJT-023, 02353SJT-024 |
| Switching Capacity | 1.76 Tbit/s / 2.4 Tbit/s |
| Fixed Ports | 48 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28 |
| PoE | Supported |
| Extended Slots | One extended slot, supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards |
| Model | S5732-H48UM2CC | S5732-H48UM2CC |
|---|---|---|
| Part Number | 02353HUB, 02353HUB-002, 02353SJT, 02353SJT-001, 02353SJT-003, 02353SJT-004, 02353SJT-010, 02353SJT-011, 02353SJT-013, 02353SJT-014 | 02353SJT-020, 02353SJT-021, 02353SJT-023, 02353SJT-024 |
| (1) | One PNP button | One PNP button |

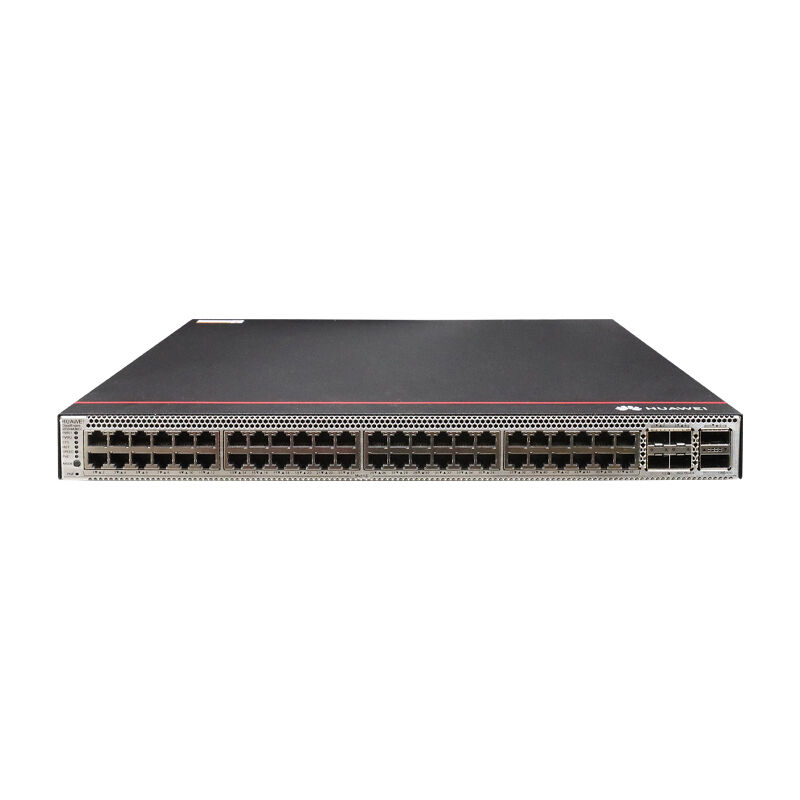

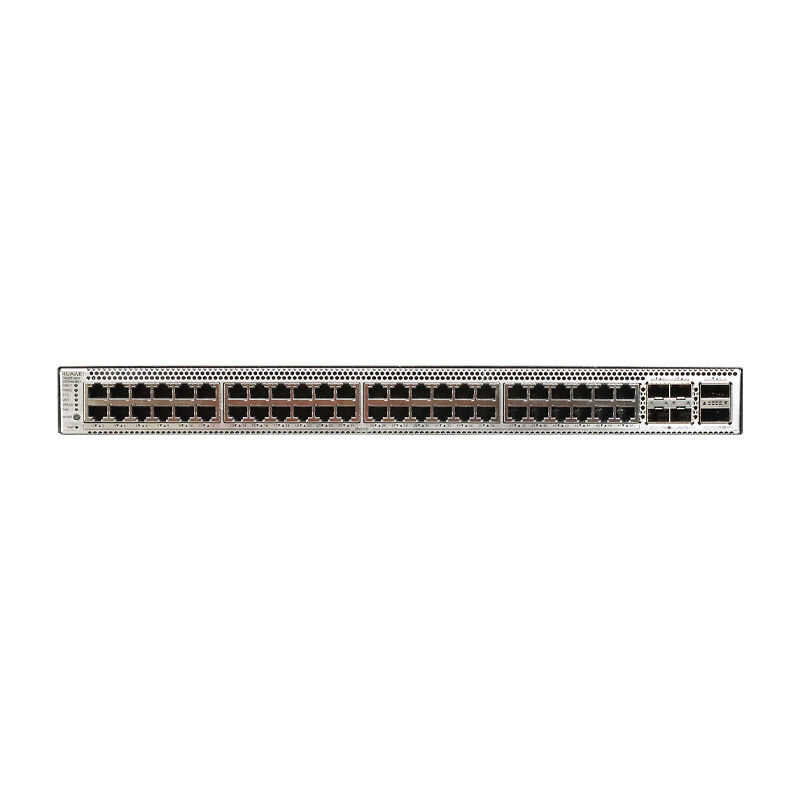

| (2) | Forty-eight 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports) | Forty-eight 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports) |
| (3) | Four 1GE/10GE/25GE SFP28 optical ports | Four 10GE/25GE SFP28 optical ports |
| (4) | Two 40GE/100GE QSFP28 optical ports | Two 40GE/100GE QSFP28 optical ports |

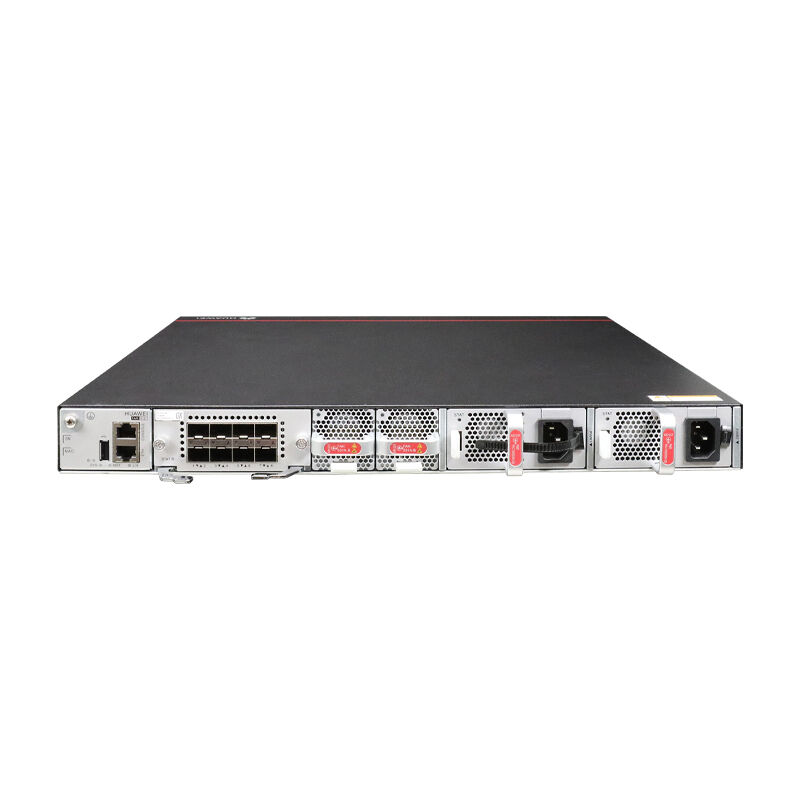

| (5) | Ground screw | (10) | Fan module slot 1 |
| (6) | One USB port | (11) | Fan module slot 2 |
| (7) | One console port | (12) | Power module slot 1 |
| (8) | One ETH management port | (13) | Power module slot 2 |
| (9) | Rear card slot |
| Part Number | Description | Remarks |
|---|---|---|
| 02353HUB 02353HUB-002 | S5732-H48UM2CC Premium (48*100M/1G/2.5G/5G/10G Ethernet ports, 4*25GE SFP28 + 2*40GE ports or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module) | By default, no power supply is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. |
| 02353SJT 02353SJT-010 | S5732-H48UM2CC Base (48*100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module) | By default, no power supply is configured. By default, multi-GE ports support 100 Mbit/s and 1000 Mbit/s. You can purchase an RTU license to increase the port rate to 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s. |
| 02353SJT-001 02353SJT-011 | S5732-H48UM2CC 2.5&10G Bundle (36*100M/1G/2.5G, 12*100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 4*25GE + 2*40GE or 2*100GE, 1*expansion slot, PoE++, 1*1000W AC power) | By default, one 1000 W AC power module is configured. By default, the first 36 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, and 2.5 Gbit/s. You can purchase an RTU license to increase the port rate to 5 Gbit/s or 10 Gbit/s. By default, the last 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device indicating "36*2.5GE+12*10GE". |
| 02353SJT-003 02353SJT-013 | S5732-H48UM2CC 5G Bundle (48*100M/1G/2.5G/5G Ethernet ports, Optional RTU upgrade to 10G, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, 1*1000W AC power) | By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, and 5 Gbit/s. You can purchase an RTU license to increase the port rate to 10 Gbit/s. There is a label on the rear side of the device indicating "48*5GE". |
| 02353SJT-004 02353SJT-014 | S5732-H48UM2CC 10G Bundle (48*100M/1G/2.5G/5G/10G Ethernet ports, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, 1*1000W AC power) | By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device indicating "48*10GE". |
| 02353SJT-020 | S5732-H48UM2CC Base (48*100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 4*25GE SFP28, 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module) | By default, no power supply is configured. By default, multi-GE ports support 100 Mbit/s and 1000 Mbit/s. You can purchase an RTU license to increase the port rate to 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s. |
| 02353SJT-021 | S5732-H48UM2CC 2.5&10G Bundle (36*100M/1G/2.5G, 12*100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 4*25GE SFP28, 2*100GE QSFP28 ports, 1*expansion slot, PoE++, with AC power supply) | By default, one 1000 W AC power module is configured. By default, the first 36 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, and 2.5 Gbit/s. You can purchase an RTU license to increase the port rate to 5 Gbit/s or 10 Gbit/s. By default, the last 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device indicating "36*2.5GE+12*10GE". |
| 02353SJT-023 | S5732-H48UM2CC 5G Bundle (48*100M/1G/2.5G/5G Ethernet ports, Optional RTU upgrade to 10G, 4*25GE SFP28, 2*100GE QSFP28 ports, 1*expansion slot, PoE++, with AC power supply) | By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, and 5 Gbit/s. You can purchase an RTU license to increase the port rate to 10 Gbit/s. There is a label on the rear side of the device indicating "48*5GE". |
| 02353SJT-024 | S5732-H48UM2CC 10G Bundle (48*100M/1G/2.5G/5G/10G Ethernet ports, 4*25GE SFP28, 2*100GE QSFP28 ports, 1*expansion slot, PoE++, with AC power supply) | By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device indicating "48*10GE". |
