Huawei Switch S5735I-S24T8S4XE-QA-V2 24 Port Network Switch with All-Gigabit Access and GE/10GE Uplinks

Huawei Switch S5735I-S24T8S4XE-QA-V2 24 Port Network Switch with All-Gigabit Access and GE/10GE Uplinks

24 Port Huawei Switch

GE/10GE Uplinks Network Switch

All-Gigabit Access Industrial Switch

Brand Name:

Huawei

Model Number:

S5735I-S24T8S4XE-QA-V2

Chat Now
Request A Quote
Product Details
Dimensions:
43.6 Mm X 442.0 Mm X 335.0 Mm
Weight:
5.457 Kg
Storage Temperature:
-40°C To +85°C
Long-term Operating Relative Humidity:
5% RH To 95% RH, Non-condensing
Memory:
2 GB
Flash Memory:
1 GB
PoE:
Not Supported
Part No.:
98012387
Description:
S5735I-S24T8S4XE-QA-V2 (24*10/100/1000BASE-T Ports, 8*GE SFP Ports, 4*10GE SFP+ Ports, 2*12GE Stack Ports, Dual AC Power, Fanless)
Condition:
Original New, In Stock
Highlight:

24 Port Huawei Switch

,

GE/10GE Uplinks Network Switch

,

All-Gigabit Access Industrial Switch

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$865
Delivery Time
3-5 work days
Payment Terms
T/T,Western Union,MoneyGram
Supply Ability
300pcs
Product Description
Huawei Switch S5735I-S24T8S4XE-QA-V2 Huawei 24 Port Switch
Huawei CloudEngine S5735I-S-V2 series industrial switches (rack-mounted) are next-generation industrial switches that provide flexible all-gigabit access and GE/10GE uplinks. They stand out with an industrial-grade operating temperature range to withstand harsh outdoor cabinet environments. As such, they can be widely used in extended operating temperature range scenarios, such as smart manufacturing, smart mining, smart transportation, safe city, and electric power.
Quick Specification
Model S5735I-S24T8S4XE-QA-V2
Part Number 98012387
Description S5735I-S24T8S4XE-QA-V2 (24*10/100/1000BASE-T ports, 8*GE SFP ports, 4*10GE SFP+ ports, 2*12GE stack ports, Dual AC power, Fanless)
Dimensions with packaging (H x W x D) 145.0 mm x 660.0 mm x 550.0 mm (5.71 in. x 25.98 in. x 21.65 in.)
Weight with packaging [kg(lb)] 7.389 kg (16.29 lb)
Typical power consumption [W] 33.0 (30% traffic)
Maximum power consumption [W] 44.0 W
Memory 2 GB
Flash memory Physical space: 1 GB
PoE Not supported
Product Appearance
Huawei Switch S5735I-S24T8S4XE-QA-V2 24 Port Network Switch with All-Gigabit Access and GE/10GE Uplinks 0

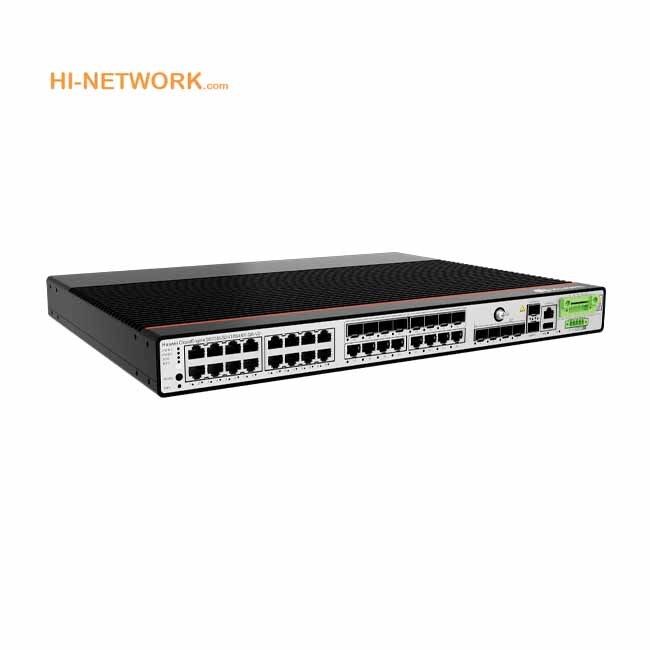

Figure 1: Front view of S5735I-S24T8S4XE-QA-V2
Product Structure Details
Huawei Switch S5735I-S24T8S4XE-QA-V2 24 Port Network Switch with All-Gigabit Access and GE/10GE Uplinks 1
Figure 2: Structural diagram of S5735I-S24T8S4XE-QA-V2
Component Identification
(1) One MODE button
(2) One PNP button
(3) 24 x 10/100/1000BASE-T ports
(4) Eight 1000BASE-X ports
(5) Four 10GE SFP+ optical ports
(6) Ground screw
(7) Two stack ports
(8) One console port
(9) One USB port
(10) One DI port
(11) One DO port
(12) Dual AC power input port
