Place of Origin:
Czech
Brand Name:
Brocade
Certification:
CE
Model Number:
BR-G610-24-16G-0
Document:

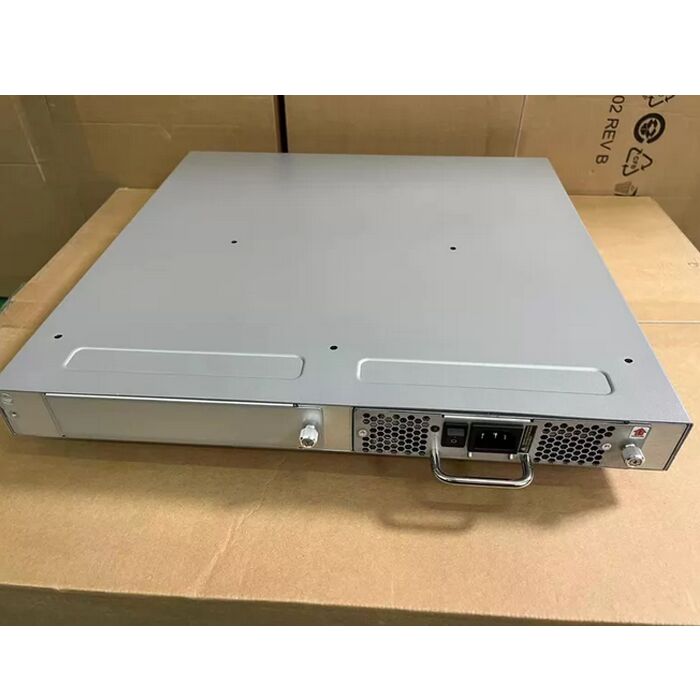

The Brocade G610 switch (Model: BR-G610-24-32G-0) is an affordable, flash-ready Fibre Channel switch that delivers enterprise-class availability for small to mid-sized businesses. Purpose-built for modern storage environments, it provides high-throughput, low-latency connectivity with the flexibility to scale on demand.
This configuration includes all 24 active ports with 24 x 32 Gbps Shortwave (SWL) SFP+ transceivers pre-installed. All 24 ports are fully activated out of the box, delivering maximum connectivity and bandwidth for demanding storage environments.
• Affordable Gen 6 Fibre Channel switch with all 24 ports activated and 24 x 32G SWL SFP+ transceivers
• Flash-ready performance — seamlessly transition to next-generation NVMe flash arrays
• Full 24-port activation delivers maximum port density and bandwidth out of the box
• Enterprise-class reliability with Brocade Fabric Vision technology
• Simple three-step installation with point-and-click user interface
• 768 Gb/s aggregate bandwidth with auto-sensing 4/8/16/32 Gbps port speeds
• Brocade G610 Switch with all 24 ports activated
• 24 x Brocade 32 Gbps SWL SFP+ transceivers (pre-installed)
• 1 x Fixed AC power supply with integrated cooling fans
• Rack mount kit
• Brocade Web Tools, Zoning, and EGM software license
|
Fibre Channel Ports |
24 ports total, all 24 ports activated |
|
Port Speeds |
Auto-sensing 4, 8, 16, and 32 Gbps |
|
Aggregate Bandwidth |
768 Gb/s end-to-end full duplex |
|
Maximum Fabric Latency |
< 780 ns (including FEC) |
|
Maximum Frame Size |
2,112-byte payload |
|
Frame Buffers |
2,000 dynamically allocated |
|
Classes of Service |
Class 2, Class 3, Class F (inter-switch frames) |
|
Port Types |
F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic) |
|
Access Gateway Mode |
F_Port and NPIV-enabled N_Port |
|
Scalability |
Full-fabric, maximum 239 switches |
|
Certified Maximum |
6,000 active nodes; 56 switches, 19 hops |
|
Frame-Based Trunking |
Up to 8 x 32G SFP+ ports per ISL trunk |
|
Maximum ISL Bandwidth |
256 Gb/s per ISL trunk |
|
Load Balancing |
Exchange-based Dynamic Path Selection (DPS) |
|
Dimensions (W x H x D) |
428.8 x 42.9 x 306.6 mm (16.88 x 1.69 x 12.07 in.) |
|
Weight (without transceivers) |
4.20 kg (9.26 lb) |
|
Weight (fully populated) |
4.80 kg (10.58 lb) |
|
Rack Units |
1U |
|
Airflow |
Port-side exhaust |
