Name: 2052 Bytes Huawei Olt Board SmartAX MA5800 8Port XGS PON And GPON Combo
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: CSHD
Price: 112 USD
Availability: InStock

Home > Products > Huawei OLT Board >

2052 Bytes Huawei Olt Board SmartAX MA5800 8Port XGS PON And GPON Combo

2052 Bytes huawei olt board

8Port huawei olt board

SmartAX MA5800 pon board

Place of Origin:

China

Brand Name:

Huawei

Certification:

Model Number:

CSHD

Document:

huawei-h902cshd-datasheet.pdf

Chat Now

Request A Quote

Product Details

Features:

Supports Bandwidth Allocation, QoS, Multicast, And Security Features

Detail:

Huawei SmartAX MA5800 H902CSHD 8-port XGS-PON And GPON Combo OLT Interface Board

Model:

Various Models Available

Interfacetype:

GPON, EPON, XG-PON, XGS-PON (depending On Model)

Dimensions:

Varies By Model, Typically Standard Board Size For Chassis

Operatingtemperature:

-5°C To 55°C

Productname:

Huawei OLT Board

Managementprotocol:

SNMP, CLI, Web-based GUI

Warranty:

Typically 1-3 Years Depending On Purchase Agreement

Producttype:

Optical Line Terminal (OLT) Board

Portcount:

Typically Ranges From 4 To 16 Ports

Function:

Central Device In Fiber-optic Networks For Managing Multiple Optical Network Units (ONUs)

Datarate:

Up To 10 Gbps (depending On Technology And Model)

Manufacturer:

Huawei

Powersupply:

AC/DC Power Options Available

Compatibility:

Compatible With Huawei MA5800 Series And Other Huawei OLT Chassis

Highlight:

2052 Bytes huawei olt board

8Port huawei olt board

SmartAX MA5800 pon board

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$112

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100pcs

Huawei EA5801E-GP16 Optical Line Terminal with 16 GPON ports 10GE/GE upstream ports and RS-232 serial port for FTTH network construction

Chat Now

Huawei MA5603T OLT Optical Line Terminal with 6U 10GPON and 1.5Tbit/s Backplane Capacity

Chat Now

Huawei SmartAX MA5800-X2 (AC/ DC Supply) with 40G capacity Original New

Chat Now

Huawei SmartAX EA5801 OLT with 4 x G-PON and GPON Combo AC Power Supply Compact Design for Rapid Deployment

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

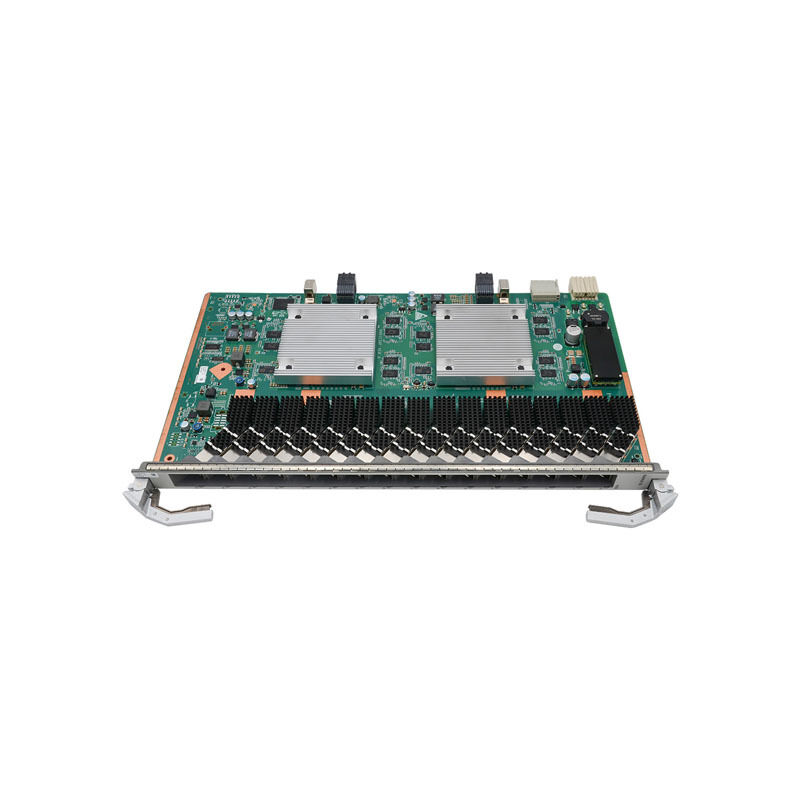

Huawei H902 CSHD SmartAX MA5800 Combo PON Boards

Product Overview

The Huawei SmartAX MA5800 H902CSHD is a high-performance 8-port Combo PON OLT interface board that supports both XGS-PON and GPON technologies, delivering exceptional forwarding capability and scalability for modern fiber optic networks.

Technical Specifications

Specification	Details
Model	H902CSHD
Port Configuration	8 ports
Forwarding Capability	100 Gbit/s
Rate Mode	Asymmetric rate, Symmetric rate
T-CONTs per PON Port	GPON: 1024, XG(S)-PON: 2048
Service Flows per PON Board	16,368
Maximum Frame Size	2052 bytes (9216 bytes with jumbo frame enabled)
Maximum MAC Addresses	131,072

Key Features

Dual-mode support for both XGS-PON and GPON technologies
High-density 8-port configuration for maximum connectivity
Advanced 100 Gbit/s forwarding capability for high-performance networks
Flexible rate modes supporting both asymmetric and symmetric operations
Scalable architecture supporting thousands of service flows and MAC addresses
Jumbo frame support for enhanced data transmission efficiency
