| Port Name | Silk Screen | Number of Ports | Function |
|---|---|---|---|
| DC power port | - | 2 | Connects to -48/-60 V DC power |
| AC power port | - | 2 | Connects to 110/220 V AC power |
| Reset button | RESET | 1 | Manual board reset (service interruption caution) |
| GPON port | PON: 0-15 | 16 | GPON service access ports |
| Upstream port (10GE/GE optical) | 10GE/GE: 0-3 | 4 | 10GE/GE ports for upstream transmission |
| GE maintenance network port | ETH | 1 | 10/100/1000M BASE-T maintenance port |
| RS-232 serial port/RS-485 monitoring serial port | CON/ESC | 1 | Maintenance terminal connection/monitored device connection |
| TOD port | TOD | 1 | Reserved |
| Environment monitoring port | ALM | 1 | Digital sensors connection |

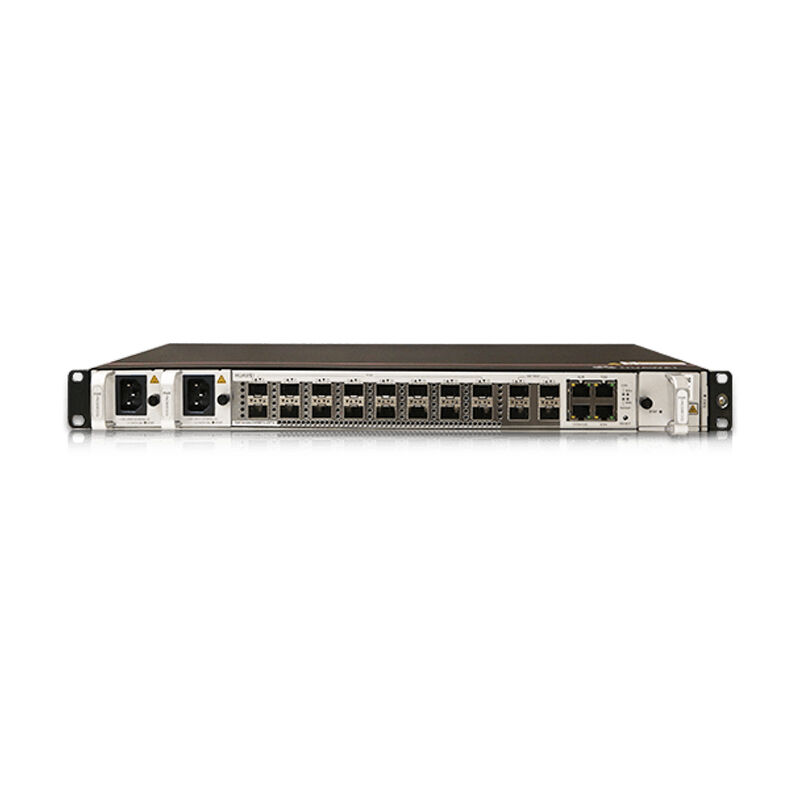

| Model | Huawei OptiXaccess EA5801E-GP16 |
| Dimensions (H x W x D) | Excluding mounting ears: 43.6 x 442 x 220 mm Including IEC mounting ears: 43.6 x 482.6 x 220 mm Including ETSI mounting ears: 43.6 x 535 x 220 mm |
| Maximum Fully-Loaded Weight (DC) | 4.2 kg |
| Maximum Fully-Loaded Weight (AC) | 4.6 kg |
| Power Supply Mode | DC power supply (dual backup) AC power supply (dual backup) |
| Service Ports | 16 GPON |
| Type | One-channel two-fiber bidirectional optical module | |
|---|---|---|
| No. | 1 | 2 |
| Operating Wavelength | 1310 nm | 1310 nm |
| Encapsulation Type | eSFP | eSFP |
| Port Rate | 1.25 Gbit/s | 1.25 Gbit/s |
| Minimum Output Optical Power | -9 dBm | -5 dBm |
| Maximum Output Optical Power | -3 dBm | 0 dBm |
| Maximum Receiver Sensitivity | -20 dBm | -23 dBm |
| Optical Connector Type | LC | LC |
| Optical Fiber Type | Single-mode | Single-mode |
| Reach | 10 km | 40 km |
| Overload Optical Power | -3 dBm | -3 dBm |
| Extinction Ratio | 9 dB | 9 dB |
| Type | One-channel one-fiber bidirectional optical module | |||
|---|---|---|---|---|
| No. | 1 | 2 | 3 | 4 |
| Operating Wavelength | Tx: 1310 nm Rx: 1490 nm | Tx: 1490 nm Rx: 1310 nm | Tx: 1310 nm Rx: 1490 nm | Tx: 1490 nm Rx: 1310 nm |
| Encapsulation Type | eSFP | eSFP | eSFP | eSFP |
| Port Rate | 1.25 Gbit/s | 1.25 Gbit/s | 1.25 Gbit/s | 1.25 Gbit/s |
| Minimum Output Optical Power | -9 dBm | -9 dBm | -2 dBm | -2 dBm |
| Maximum Output Optical Power | -3 dBm | -3 dBm | 3 dBm | 3 dBm |
| Maximum Receiver Sensitivity | -19.5 dBm | -19.5 dBm | -23 dBm | -23 dBm |
| Optical Connector Type | LC | LC | LC | LC |
| Optical Fiber Type | Single-mode | Single-mode | Single-mode | Single-mode |
| Reach | 10 km | 10 km | 40 km | 40 km |
| Overload Optical Power | -3 dBm | -3 dBm | -3 dBm | -3 dBm |
| Extinction Ratio | 6 dB | 6 dB | 9 dB | 9 dB |
| Type | One-channel two-fiber bidirectional optical module | ||
|---|---|---|---|
| No. | 1 | 2 | 3 |
| Operating Wavelength | 850 nm | 1310 nm | 1550 nm |
| Encapsulation Type | SFP+ | SFP+ | SFP+ |
| Port Rate | 10 Gbit/s | 10 Gbit/s | 9.95-11.1 Gbit/s |
| Minimum Output Optical Power | -7.3 dBm | -8.2 dBm | -4.7 dBm |
| Maximum Output Optical Power | -1 dBm | 0.5 dBm | 4 dBm |
| Maximum Receiver Sensitivity | -9.9 dBm | -12.6 dBm | -14.1 dBm |
| Optical Connector Type | LC | LC | LC |
| Optical Fiber Type | Multi-mode | Single-mode | Single-mode |
| Reach | 0.3 km | 10 km | 40 km |
| Overload Optical Power | -1 dBm | 0.5 dBm | 0.5 dBm |
| Extinction Ratio | 3 dB | 3.5 dB | 3 dB |
| Type | One-channel one-fiber bidirectional optical module | |||
|---|---|---|---|---|
| No. | 1 | 2 | 3 | 4 |
| Operating Wavelength | Tx:1270nm Rx:1330nm | Tx:1330nm Rx:1270nm | Tx:1330nm Rx:1270nm | Tx:1270nm Rx:1330nm |
| Encapsulation Type | SFP+ | SFP+ | SFP+ | SFP+ |
| Port Rate | 2.5Gbit/s-11.3Gbit/s | 2.5Gbit/s-11.3Gbit/s | 9.95Gbit/s-10.3Gbit/s | 9.95Gbit/s-10.3Gbit/s |
| Minimum Output Optical Power | -8.2dBm | -8.2dBm | 0dBm | 0dBm |
| Maximum Output Optical Power | 0.5dBm | 0.5dBm | 5dBm | 5dBm |
| Maximum Receiver Sensitivity | -14.4dBm | -14.4dBm | -18dBm | -18dBm |
| Optical Connector Type | LC | LC | LC | LC |
| Optical Fiber Type | Single-mode | Single-mode | Single-mode | Single-mode |
| Reach | 10km | 10km | 40km | 40km |
| Overload Optical Power | 0.5dBm | 0.5dBm | -9dBm | -9dBm |
| Extinction Ratio | 3.5dB | 3.5dB | 3.5dB | 3.5dB |
| Type | One-fiber bidirectional optical module, class B+ | One-fiber bidirectional optical module, class C+ | One-fiber bidirectional optical module, class C++ |
|---|---|---|---|
| No. | 1 | 2 | 3 |
| Operating Wavelength | Tx: 1490 nm Rx: 1310 nm | Tx: 1490 nm Rx: 1310 nm | Tx: 1490 nm Rx: 1310 nm |
| Encapsulation Type | SFP | SFP | SFP |
| Port Rate | Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s | Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s | Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
| Minimum Output Optical Power | 1.5 dBm | 3 dBm | 6 dBm |
| Maximum Output Optical Power | 5 dBm | 7 dBm | 10 dBm |
| Maximum Receiver Sensitivity | -28 dBm | -32 dBm | -35 dBm |
| Optical Connector Type | SC | SC | SC |
| Optical Fiber Type | Single-mode | Single-mode | Single-mode |
| Overload Optical Power | -8 dBm | -12 dBm | -15 dBm |
| Extinction Ratio | 8.2 dB | 8.2 dB | 8.2 dB |
