Name: OEM MA5800 Huawei OLT Board PILA H901PILA DC Power Board -48V -60V
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: PILA
Price: 76 USD
Availability: InStock

Home > Products > Huawei OLT Board >

OEM MA5800 Huawei OLT Board PILA H901PILA DC Power Board -48V -60V

-60V huawei olt board

MA5800 huawei olt board

OEM H901PILA

Place of Origin:

China

Brand Name:

Huawei

Certification:

Model Number:

PILA

Document:

huawei-h901pila-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

H901PILA - Huawei MA5800-X7 Broadband Board

Humidity:

5%~95% (non-condensing)

Type:

Optical Line Terminal

Size:

Energyefficiency:

Complies With IEEE 802.3az

Ac Power Supply:

100V To 240V

Model:

MA5800-X7

Material:

Metal

Dc Power Supply:

-38.4V To -72V

Warranty:

2year

Managementprotocol:

SNMP, CLI, Web

Pon Port Board:

GPBD,GPHD,GPFD,EPSD,EPBD，EPFD

Control Board:

2 X SCUN

Main Control Board:

SCUN

Ac Power Support:

100V To 240V

Mac Addresses:

Huawei XG-PON OLT

Highlight:

-60V huawei olt board

MA5800 huawei olt board

OEM H901PILA

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$76

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

Huawei EA5801E-GP16 Optical Line Terminal with 16 GPON ports 10GE/GE upstream ports and RS-232 serial port for FTTH network construction

Chat Now

Huawei MA5603T OLT Optical Line Terminal with 6U 10GPON and 1.5Tbit/s Backplane Capacity

Chat Now

Huawei SmartAX MA5800-X2 (AC/ DC Supply) with 40G capacity Original New

Chat Now

Huawei SmartAX EA5801 OLT with 4 x G-PON and GPON Combo AC Power Supply Compact Design for Rapid Deployment

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

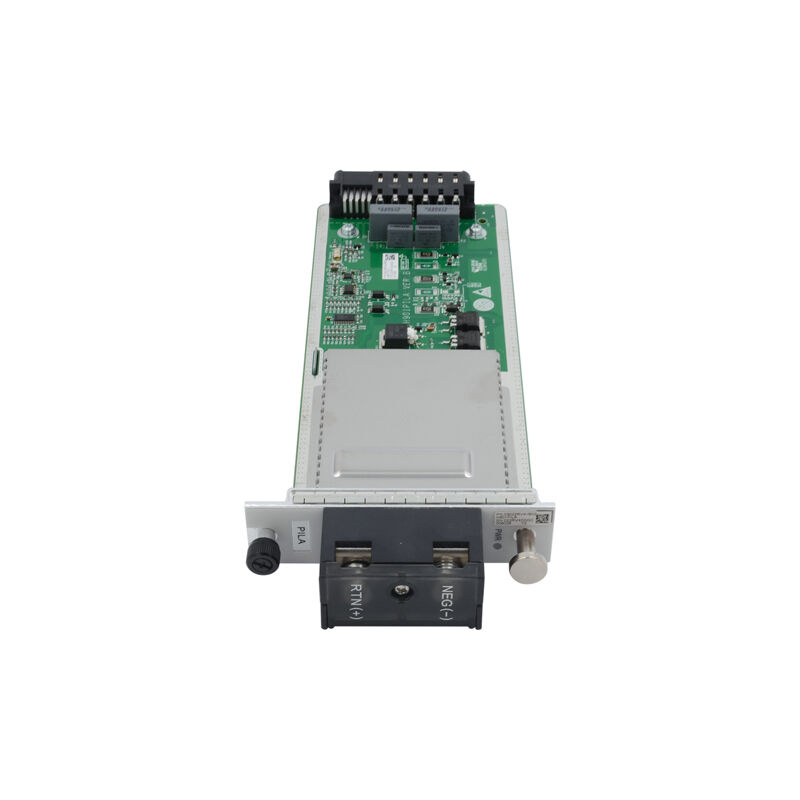

Huawei PILA DC Power Board for Huawei OLT MA5800 X7/X15/X17

Overview

The H901PILA board leads in one -48 V or -60 V DC power through two 100 A OT terminals, and transfers the power to the protection circuit, then to the filter circuit, and finally to the backplane, supplying power to the service subrack and other boards.

Quick Specification

Board	H901PILA
Description	Connect Power Board
Discount Category	Broadband Board
Product Line	Networking
Sub Product Family	FTTx and Cable
UOM	PCS
Net Dimension(DWH mm)	2532497
Typic Power(W)	2.3

Product Details

The H901PILA board supports the following features and specifications:

One -48 V or -60 V DC power input (input voltage range: -38.4 V to -72 V)
Filtering and current-limiting for the power input port
Power input detection and protection fuse fault detection
Reporting of the protection alarm and board online signal

Supported Platforms

EA5800-X17	Huawei SmartAX EA5800-X17, large-capacity, ETSI, supports 17 service slots
EA5800-X15	Huawei SmartAX EA5800-X15, large-capacity, IEC, supports 15 service slots
EA5800-X7	Huawei SmartAX EA5800-X7, medium-capacity, supports 7 service slots
EA5800-X2	Huawei SmartAX EA5800-X2, small-capacity, supports 2 service slots
