Place of Origin:
China
Brand Name:
Huawei
Certification:
CE
Model Number:
MA5800-X17
Document:
| Slot Type | Slot No. | Total |
|---|---|---|
| Control board (SCU) slot | 9, 10 | 2 |
| Power board slot | 20, 21 | 2 |
| Universal interface board slot | 0 | 1 |
| Service board slot | 1~8, 11~19 | 17 |
| Parameter | Specification |
|---|---|

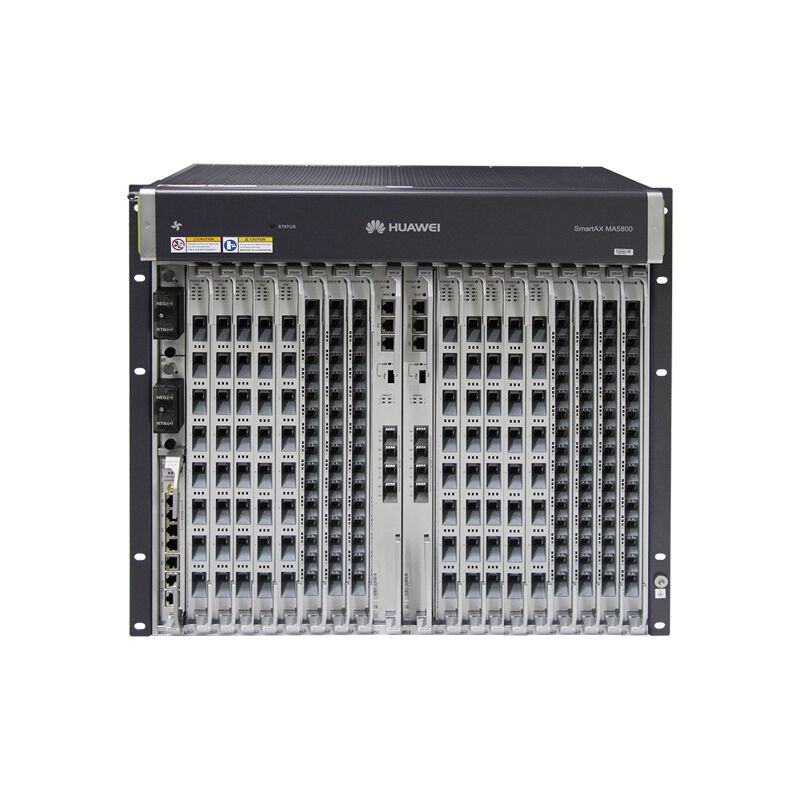

| Model | Huawei SmartAX EA5800-X17 |
| Supported Cabinets | N63E-22 |
| Board Configuration | Control board slots: 9, 10 Service board or upstream interface board slots: 1 to 8, 11 to 19 Universal interface board slot: 0 Power board slots: 20, 21 |
| Dimensions (W x D x H) | 11U high and 21 inches wide Excluding mounting brackets: 493 mm x 287 mm x 486 mm Including mounting brackets: 535 mm x 287 mm x 486 mm |
| Maximum Input Current | 60A |
| Power Supply Modes | DC power support (dual for backup) |
| Working Voltage Range | -38.4V to -72V DC |
| Rated voltage | -48V/-60V |
| Switching Capacity of the Control Board (load sharing mode) | 3.6 Tbit/s |
| Maximum Bandwidth per Service Slot (load sharing mode) | 100 Gbit/s |
| System Layer 2 Packet Forwarding Rate (load sharing mode) | 5,298 Mpps |
| Category | Model | Description |
|---|---|---|
| Control Boards | H902MPLAE, H901MPSCE | Huawei SmartAX EA5800 Main Processing Board |
| Universal Interface Boards | H901CIUA | Huawei SmartAX EA5800 Combo Interface Transfer Board |
| Service Boards | H901XGHDE, H901OGHK, H901OXHD, H902OXHD, H901GPSFE, H901OXEG, H901TWEDE, H901XSHF, H902GPHFE | Various GPON, XG-PON, XGS-PON, GE/FE, and 10GE interface boards |
| Upstream Interface Board | H901NXED | Huawei SmartAX EA5800 8-port Enhanced 10GE Uplink Interface Board |
| Power Boards | H901PILA, H901PISA, H901PISB, H902PISB | Huawei SmartAX EA5800 Power Transfer Board |
| FAN Monitoring Boards | H901FMLA | Huawei SmartAX EA5800 EA5800-X15/X17 fan tray |
| Parameters | EA5800-X17 | EA5800-X15 | EA5800-X7 | EA5800-X2 |
|---|---|---|---|---|
| Board Configuration | Control: 9,10 Service: 1-8,11-19 Universal: 0 Power: 20,21 |
Control: 8,9 Service: 1-7,10-17 Universal: 0 Power: 18,19 |
Control: 8,9 Service: 1-7 Universal: 0 Power: 10,11 |
Control: 3,4 Service: 1-2 No universal interface Power: 0 |
| Switching Capacity | 3.6 Tbit/s | 3.6 Tbit/s | 3.6 Tbit/s | 480 Gbit/s |
| Max Bandwidth per Slot | 100 Gbit/s | 100 Gbit/s | 100 Gbit/s | 80 Gbit/s |
| Packet Forwarding Rate | 5,298 Mpps | 5,298 Mpps | 5,298 Mpps | 714 Mpps |
| Max 4K Video Users | 16,000 | 16,000 | 8,000 | 2,000 |
| Max MAC Addresses | 262,143 | 262,143 | 262,143 | 262,143 |
| ARP/Routing Entries | 131,072 | 131,072 | 131,072 | 131,072 |
| GPON/XG(S)-PON Ports | 272 | 240 | 112 | 32 |
| GE/FE Ports | 816 | 720 | 336 | 96 |
| 10 GE Ports | 408 | 360 | 168 | 16 |
