Place of Origin:
China
Brand Name:
Huawei
Certification:
CE
Model Number:
EA5801-CG08-DC
Document:

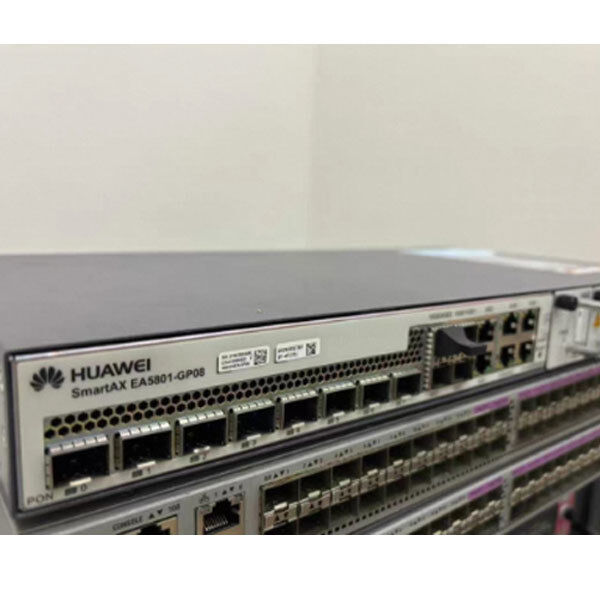

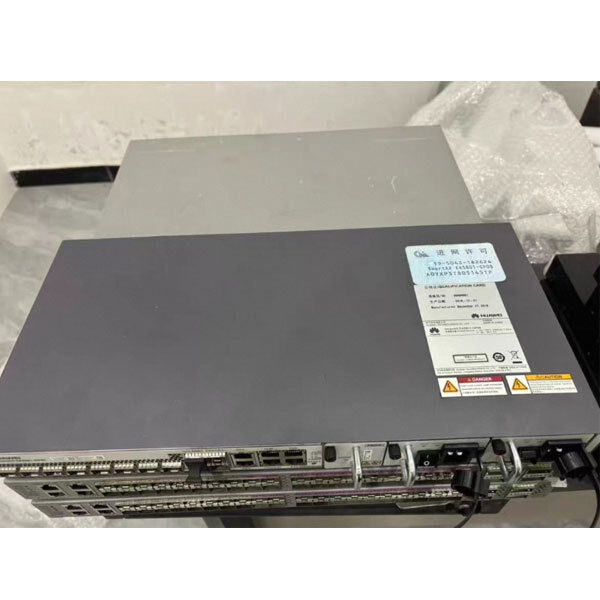

| Model | Huawei SmartAX EA5801-GP08-DC ETSI |
|---|---|
| Dimensions (H x W x D) |
Without mounting ears: 43.6 mm x 442 mm x 222.3 mm With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm |
| Power Supply Mode | DC power supply (dual for backup) |
| Working Voltage Range | DC power supply: -38.4V to -72V |
| Rated Voltage | DC power supply: -48V/-60V |
| Maximum Input Current | DC power supply: 6A |
| MAC Addresses | 32,768 |
| ARP Table | 16,384 |
| GE Upstream Ports | 2 optical/electrical combo ports |
| 10 GE/GE Upstream Ports | 2 |
| Number of Service Ports | 8 x GPON |
| Feature | EA5801-GP08-AC | EA5801-GP08-DC | EA5801-CG04-AC | EA5801-CG04-DC |
|---|---|---|---|---|
| Power Supply Mode | AC power supply (dual for backup) | DC power supply (dual for backup) | AC power supply (dual for backup) | DC power supply (dual for backup) |
| Working Voltage Range | AC: 100V to 240V | DC: -38.4V to -72V | AC: 100V to 240V | DC: -38.4V to -72V |
| Rated Voltage | AC: 110V/220V | DC: -48V/-60V | AC: 110V/220V | DC: -48V/-60V |
| Maximum Input Current | AC: 2.5A | DC: 6A | AC: 2.5A | DC: 6A |
| MAC Addresses | 32,768 | 32,768 | 32,768 | 32,768 |
| ARP Table | 16,384 | 16,384 | 16,384 | 16,384 |
| GE Upstream Ports | 2 optical/electrical combo | 2 optical/electrical combo | 2 optical/electrical combo | 2 optical/electrical combo |
| 10 GE/GE Upstream Ports | 2 | 2 | 2 | 2 |
| Service Ports | 8 x GPON | 8 x GPON | 4 x G-PON and GPON combo | 4 x G-PON and GPON combo |
