Brand Name:
Finisar
Model Number:
FTLF8536P4BCL
Document:
| Model | FTLF8536P4BCL |

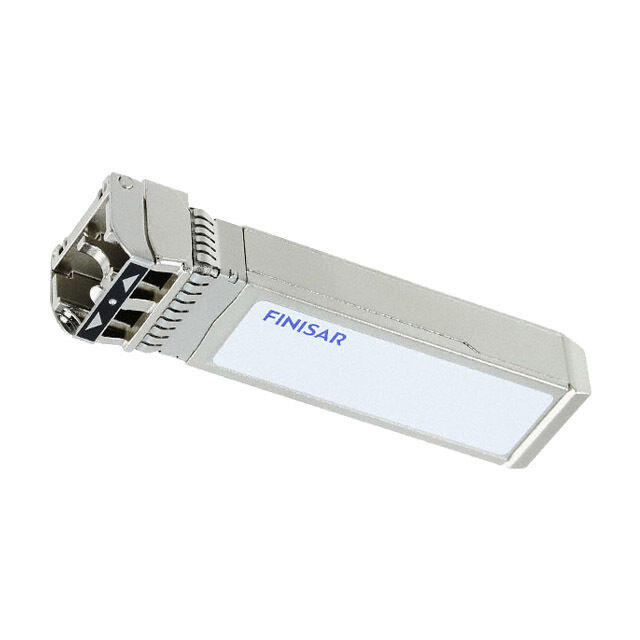

| Description | Finisar 25Gb/s RoHS Compliant Short Wavelength SFP+ Transceiver for 25G single lane 100GE SR4 |
| Media Type | Multi-Mode Fiber (MMF) |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Minimum Optical Budget | 2.6 dB |
| Maximum Distance | 100m |
| Supported Data Rate | 8.5-28.1 Gbps |
| Temperature Range | Standard 0°-70°C |
| Model | FTLF8536P4BCL |
| Description | Finisar 25Gb/s RoHS Compliant Short Wavelength SFP+ Transceiver for 25G single lane 100GE SR4 |
| Media Type | Multi-Mode Fiber (MMF) |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Minimum Optical Budget | 2.6 dB |
| Maximum Distance | 100m |
| Supported Data Rate | 8.5-28.1 Gbps |
| Supported Applications | 25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps) |
| DDM/DOM | Supported |
| Temperature Range | Standard 0°-70°C |
| Connectors | Double LC |
| Tx Wavelength Bandwidth | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth | 20 nm (840-860 nm) |
| Minimum Transmitting Power | -8.4 dBm |
| Maximum Transmitting Power | 2.4 dBm |
| Receiver Sensitivity | -11 dBm |
| Receiver Overload | 2.4 dBm |
| Transmitter Type | VSCEL Laser |
| Receiver Type | PIN photodiode |
| Power | +3.3V single power supply |
| Chipset | II-VI, Macom, Neo, Oclaro, Renesas Electronics, MAXIM, SEMTECH, Sumitomo |
| Compliance | IEEE 802.3by, RoHS-6, SFF-8432, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, SFF-8402, SFF-8431, SFF-8472, SFP+ MSA |
