Brand Name:
Finisar
Model Number:

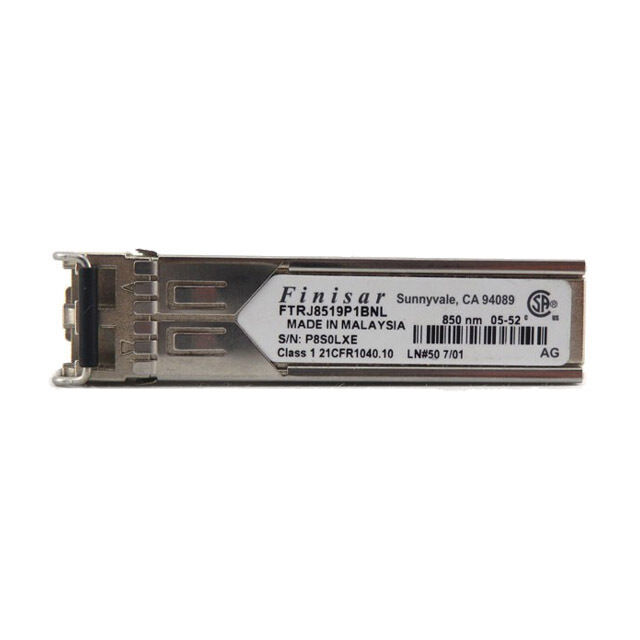

FTRJ8519P1BNL
Document:
| Model | FTRJ8519P1BNL |
|---|---|
| Description | Finisar 2.125Gbps 1000Base-SX Multi-mode Fiber Short Wave 550m 850nm Duplex LC Connector SFP Transceiver Module |
| Body Breadth | 13.72 mm |
| Body Height | 12.43 mm |
| Body Length | 56.64 mm |
| Operating Temperature (Max) | 90.0 °C |
| Operating Wavelength (Max) | 860.0 nm |
| Supply Voltage (Max) | 3.6 V |
| Model | FTRJ8519P1BNL |
|---|---|
| Description | Finisar 2.125Gbps 1000Base-SX Multi-mode Fiber Short Wave 550m 850nm Duplex LC Connector SFP Transceiver Module |
| Fiber Optic Device Type | TRANSCEIVER |
| Emitter/Detector Type | LASER |
| Fiber Type | 50/125, MMF, 62.5/125, SMF |
| Body Breadth | 13.72 mm |
| Body Height | 12.43 mm |
| Body Length | 56.64 mm |
| Communication Standard | GBE, OC-3; OC-48 |
| Connection Type | LC CONNECTOR |
| Data Rate (Rx) | 2125.0 Mbps |
| Data Rate (Tx) | 2125.0 Mbps |
| Mounting Feature | PANEL MOUNT |
| Operating Temperature (Min) | -20.0 °C |
| Operating Temperature (Max) | 90.0 °C |
| Operating Wavelength (Nom) | 845.0 nm |
| Operating Wavelength (Min) | 830.0 nm |
| Operating Wavelength (Max) | 860.0 nm |
| Optical Power Output (Nom) | 0.4466 mW |
| Return Loss (Min) | 12.0 dB |
| Sensitivity | -18.0 dBm |
| Sub Category | Fiber Optic Transceivers |
| Supply Voltage (Nom) | 3.3 V |
| Supply Voltage (Min) | 3.0 V |
| Supply Voltage (Max) | 3.6 V |
