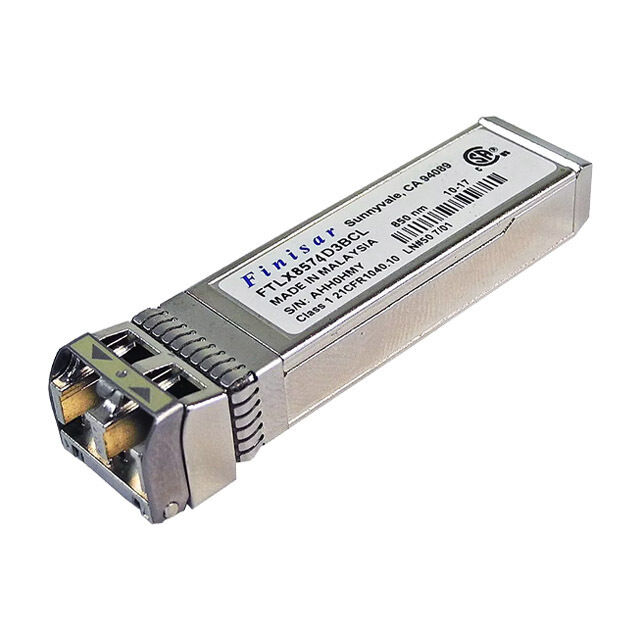

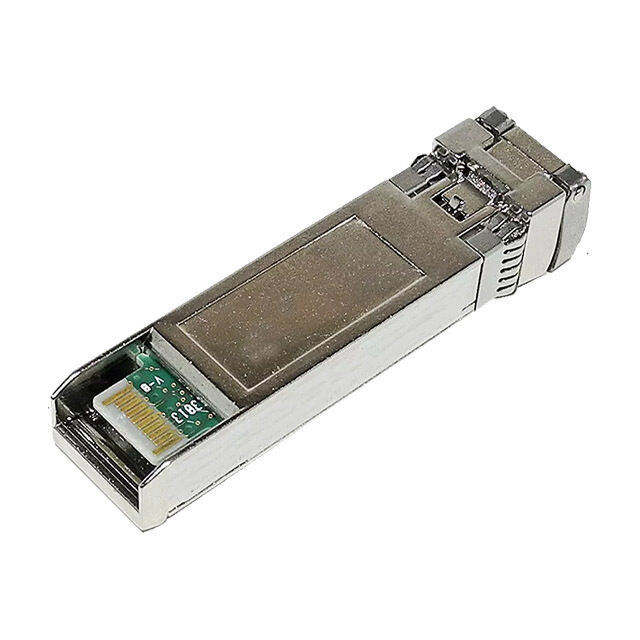

Brand Name:
Finisar
Model Number:
FTLX8574D3BCL
Document:
| Model | FTLX1475D3BCL |
| Description | Finisar 10G SFP+ LR 10km Singlemode Optical Transceiver for Campus Network Data Center |
| Media Type | Single-Mode Fiber (SMF) |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Minimum Optical Budget | 6 dB |
| Maximum Distance | 10km |
| Temperature Range | Commercial -5° to 70°C |
| Connectors | Double LC |
| Model | FTLX1475D3BCL |
| Description | Finisar 10G SFP+ LR 10km Singlemode Optical Transceiver for Campus Network Data Center |
| Media Type | Single-Mode Fiber (SMF) |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Minimum Optical Budget | 6 dB |
| Maximum Distance | 10km |
| Supported Data Rate | 1.25-10.31 Gbps |
| Supported Applications | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps) |
| DDM/DOM | Support |
| Temperature Range | Commercial -5° to 70°C |
| Connectors | Double LC |
| Tx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
| Rx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
| Minimum Transmitting Power | -8 dB |
| Maximum Transmitting Power | -0.5 dB |
| Receiver Sensitivity | -14 dBm |
| Receiver Overload | 0.5 dBm |
| Dispersion | 70-100 ps/nm |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN photodiode |
| Power | +3.3V single power supply |
| Chipset | MAXIM, MINDSPEED, SEMTECH |
| Compliance | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
| Transceiver Type | SFP+ |
