Brand Name:
Finisar
Model Number:
FTL4C1QE1C
Document:
| Model | FTL4C1QE1C |

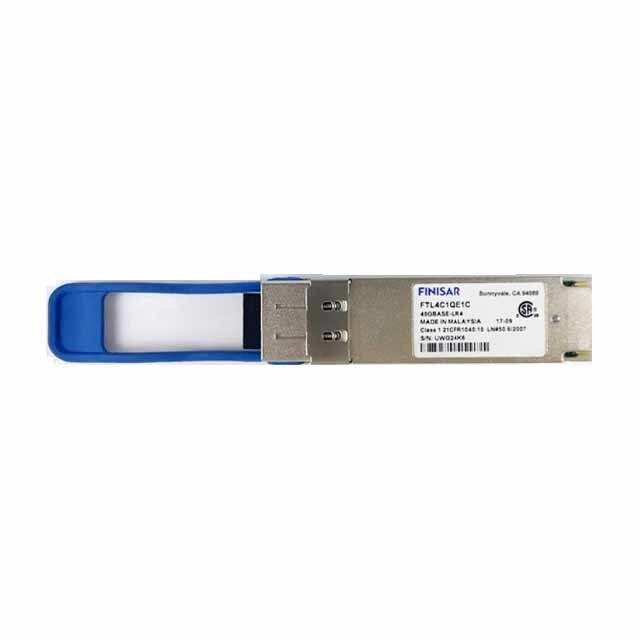

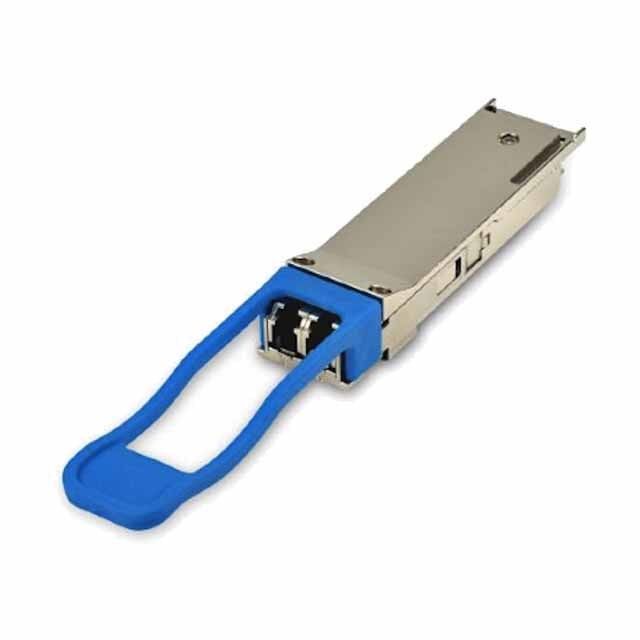

| Description | Finisar 40GBASE-LR4 40Gbps QSFP+ Fiber Transceiver, 10 Km Optic Fiber |
| Temperature Range | Standard 0°-70°C |
| Connectors | Double LC |
| Tx Wavelength Bandwidth | 4 WDM Separated 1310nm Lanes (13 nm: 1271, 1291, 1311, 1331) |
| Rx Wavelength Bandwidth | 4 WDM Separated 1310nm Lanes (13nm: 1271, 1291, 1311, 1331) |
| Minimum Transmitting Power | Each Lane -4 dB |
| Maximum Transmitting Power | Each Lane 2.3 dB |
| Receiver Sensitivity | Each Lane -13.7 dBm |
| Model | FTL4C1QE1C |
| Description | Finisar 40GBASE-LR4 40Gbps QSFP+ Fiber Transceiver, 10 Km Optic Fiber |
| Media Type | Single-Mode Fiber (SMF) |
| TX Wavelength | 1310 nm |
| Transceiver Type | QSFP |
| RX Wavelength | 1310 nm |
| Minimum Optical Budget | 9.7 dB |
| Maximum Distance | 10km |
| Supported Data Rate | 39.81 - 44.8 Gbps |
| Supported Applications | 40G Ethernet (41.25Gbps), STM-256 (39.81 Gbps), OTU3 (43.01Gbps), OTU3e2 (44.58Gbps) |
| DDM/DOM | Supported |
| Temperature Range | Standard 0°-70°C |
| Connectors | Double LC |
| Tx Wavelength Bandwidth | 4 WDM Separated 1310nm Lanes (13 nm: 1271, 1291, 1311, 1331) |
| Rx Wavelength Bandwidth | 4 WDM Separated 1310nm Lanes (13nm: 1271, 1291, 1311, 1331) |
| Minimum Transmitting Power | Each Lane -4 dB |
| Maximum Transmitting Power | Each Lane 2.3 dB |
| Receiver Sensitivity | Each Lane -13.7 dBm |
| Receiver Overload | Each Lane 2.3 dBm |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN photodiode |
| Power | +3.3V single power supply |
| Chipset | MAXIM, MINDSPEED, SEMTECH, UX |
| Compliance | 802.3ba 40GBASE-LR4, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8438i, QSFP+ MSA, RoHS, SFF-8436 |
